Fengdu Passive GFRP 90 Series
| Certified since | 25/07/2025 |
| Climate zone | Ψυχρή, εύκρατη |
| Τύπος | Operable |
| Sub type | |
| Efficiency class | phB |
| Υλικό | GFRP |
| UW | 0,78 W/(m2K) |
| Open type |
Περιγραφή
Fiberglass reinforced frame (0.30 W/(mK)) insulated by Kooltherm (0.022 W/(mK)) and PE foam (0.038 W/(mK)). Edge bond: Swisspacer Ultimate with butyl secondary seal. Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 19 mm.
| Όνομα | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

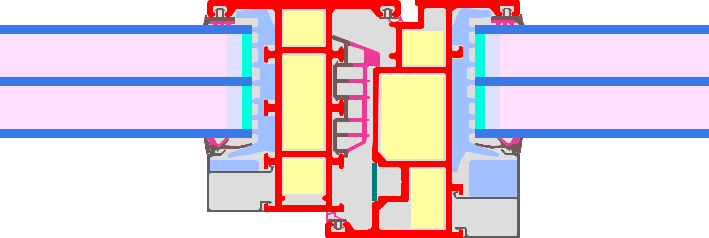

| Flying Mullion | 133 mm | 0,78 W/(m²K) | 0,023 W/(mK) | 0,770 |

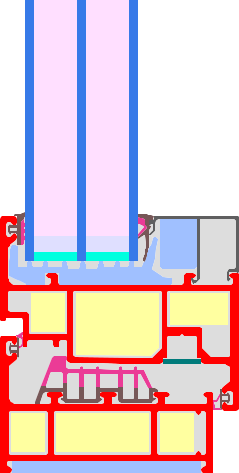

| Bottom | 109 mm | 0,78 W/(m²K) | 0,023 W/(mK) | 0,779 |

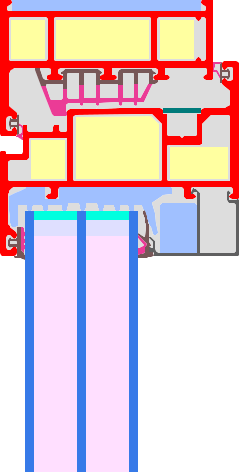

| Head | 109 mm | 0,78 W/(m²K) | 0,023 W/(mK) | 0,779 |

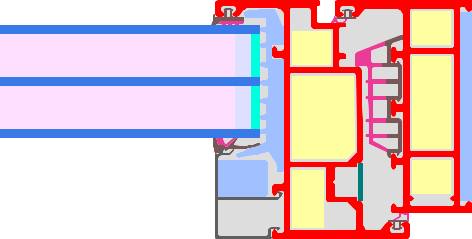

| Jamb | 109 mm | 0,78 W/(m²K) | 0,023 W/(mK) | 0,779 |
