Mega-KEE-110
| Certified since | 27/08/2025 |
| Climate zone | Ζεστή, εύκρατη |
| Τύπος | Operable |
| Sub type | |
| Efficiency class | phB |
| Υλικό | Aluminium |
| UW | 0,97 W/(m2K) |
| Open type | Inward opening |
Περιγραφή
Aluminium frame with thermal separation (Technoform Low Lambda PA 0.21 W/(mK)), resol rigid foam insulation (0.022 W/(mK)), and PE foam (0.038 W/(mK)) at the rebate. Pane thickness: 51 mm (5/18/5/18/5), rebate depth: 18 mm.
| Όνομα | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

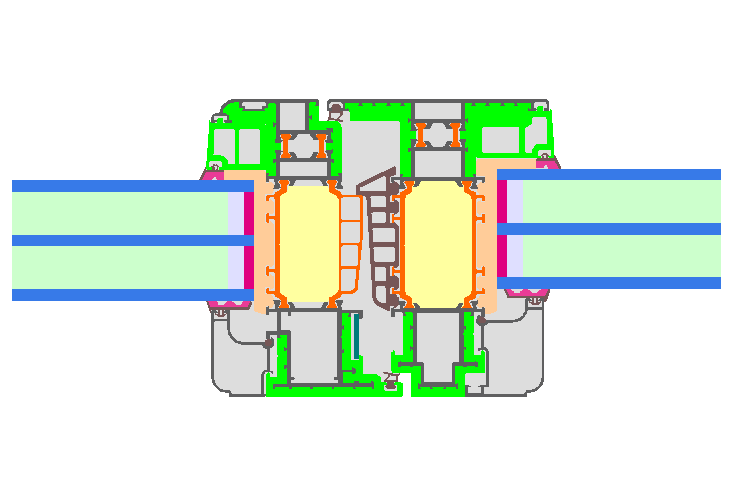

| Mullion 1 casement | 143 mm | 0,91 W/(m²K) | 0,028 W/(mK) | 0,770 |

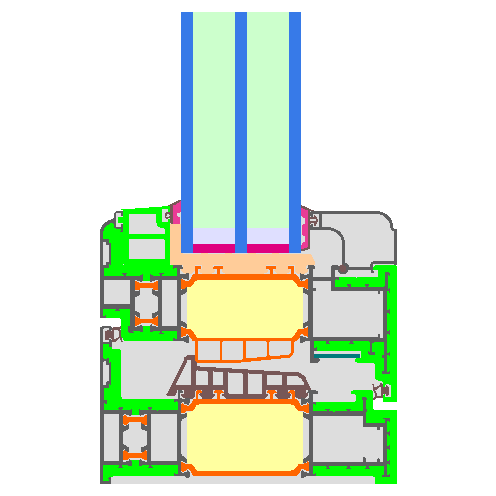

| Bottom | 116 mm | 0,91 W/(m²K) | 0,028 W/(mK) | 0,770 |

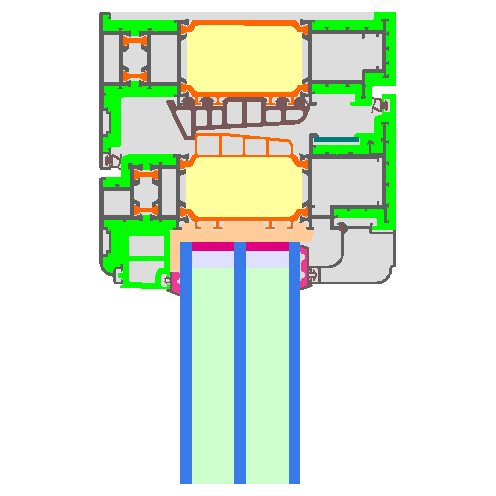

| Head | 116 mm | 0,91 W/(m²K) | 0,028 W/(mK) | 0,770 |
| Jamb | 116 mm | 0,91 W/(m²K) | 0,028 W/(mK) | 0,770 |
