2508wi04 Mega-KEE-110 fixed: (Σταθερό)
2508wi04 Mega-KEE-110 fixed: (Σταθερό)
2508wi04 Mega-KEE-110 fixed: (Σταθερό): 1M1
2508wi04 Mega-KEE-110 fixed: (Σταθερό): FB1
2508wi04 Mega-KEE-110 fixed: (Σταθερό): FH1
2508wi04 Mega-KEE-110 fixed: (Σταθερό): FJ1
Mega-KEE-110 fixed
| Certified since | 27/08/2025 |
| Climate zone | Ζεστή, εύκρατη |
| Τύπος | Σταθερό |
| Sub type | |
| Efficiency class | phA |
| Υλικό | Aluminium |
| UW | 0,95 W/(m2K) |
| Open type |
Περιγραφή
Aluminium frame with thermal separation (Technoform Low Lambda PA 0.21 W/(mK)), resol rigid foam insulation (0.022 W/(mK)), and PE foam (0.038 W/(mK)) at the rebate. Pane thickness: 51 mm (5/18/5/18/5), rebate depth: 22 mm.
| Όνομα | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

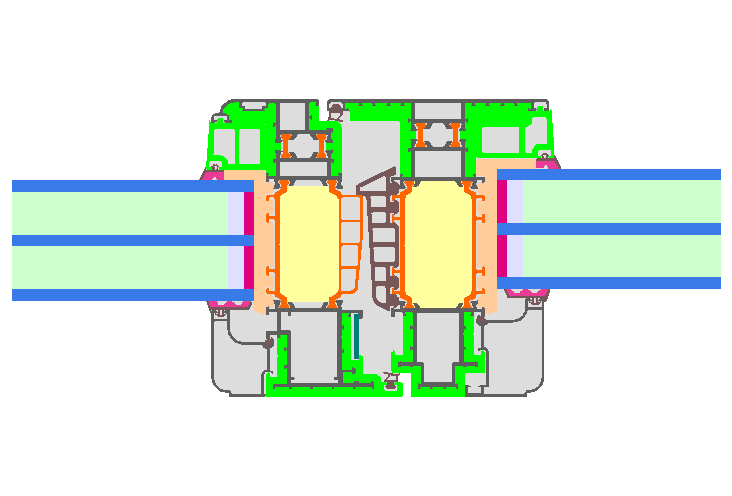

| Mullion 1 casement | 143 mm | 0,85 W/(m²K) | 0,028 W/(mK) | 0,770 |

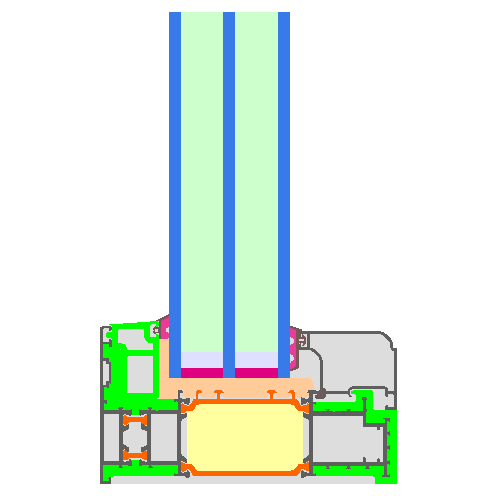

| Bottom Fixed | 67 mm | 0,73 W/(m²K) | 0,029 W/(mK) | 0,780 |

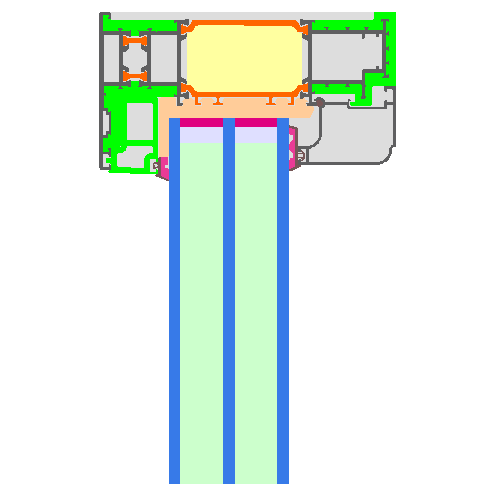

| Top fixed | 67 mm | 0,73 W/(m²K) | 0,029 W/(mK) | 0,780 |
| Jamb fixed | 67 mm | 0,73 W/(m²K) | 0,029 W/(mK) | 0,780 |
