SAPA SOLEAL NEXT 75
| Certified since | 03/07/2025 |
| Climate zone | Ψυχρή, εύκρατη |
| Τύπος | Operable |
| Sub type | |
| Efficiency class | phC |
| Υλικό | Aluminium |
| UW | 0,79 W/(m2K) |
| Open type |
Περιγραφή
Aluminium frame with thermal separation (Insulbar LI 0.21 W/(mK)) and insulation insert (aerogel 0,016 W/(mK)). Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 15 mm.
| Όνομα | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

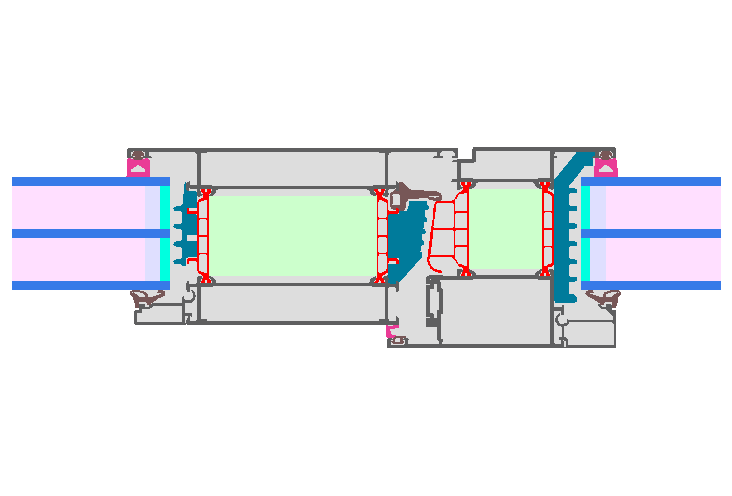

| Mullion 1 casement | 207 mm | 0,77 W/(m²K) | 0,024 W/(mK) | 0,780 |

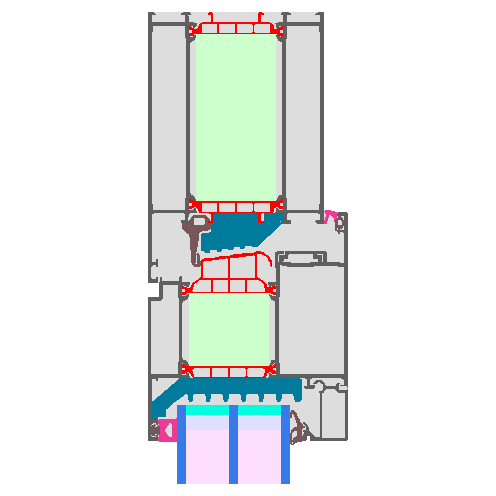

| Bottom | 182 mm | 0,79 W/(m²K) | 0,024 W/(mK) | 0,780 |

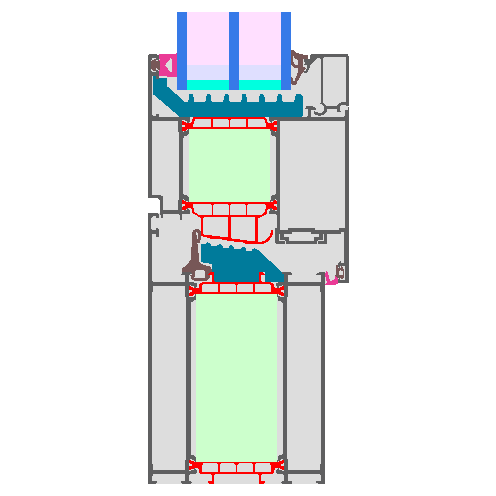

| Head | 182 mm | 0,79 W/(m²K) | 0,024 W/(mK) | 0,780 |
| Jamb | 182 mm | 0,79 W/(m²K) | 0,024 W/(mK) | 0,780 |
