Biobased Cassette
| Certified since | 13/01/2026 |
| Climate zone | Ψυχρή, εύκρατη |
| Τύπος | Operable |
| Sub type | |
| Efficiency class | phB |
| Υλικό | Timber |
| UW | 0,78 W/(m2K) |
| Open type | |
| EnerPHit | False |
Περιγραφή
Timber frame window made from thermally modified timber (0,095 W/(mK)) with insulation core of cork resin (0,040 W/(mK)). Pane thickness: 44 mm (3/18/2/18/3), rebate depth: 12 mm.
| Όνομα | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

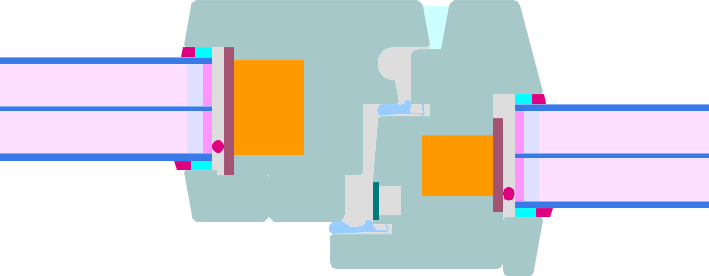

| Mullion 1 casement | 152 mm | 0,79 W/(m²K) | 0,026 W/(mK) | 0,71 |

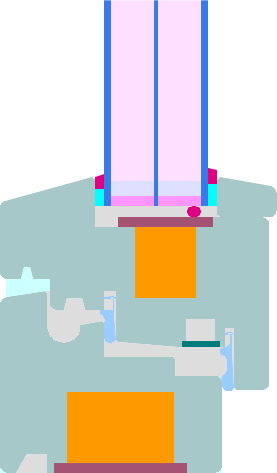

| Bottom | 125 mm | 0,75 W/(m²K) | 0,026 W/(mK) | 0,73 |

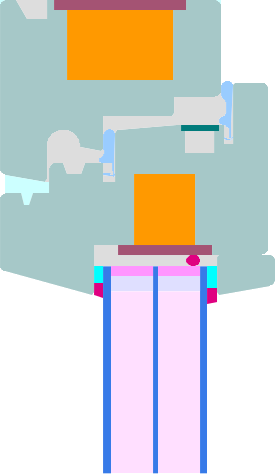

| Head | 125 mm | 0,75 W/(m²K) | 0,026 W/(mK) | 0,73 |

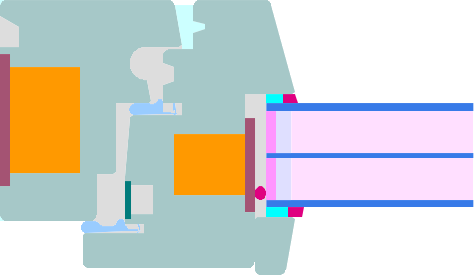

| Jamb | 125 mm | 0,75 W/(m²K) | 0,026 W/(mK) | 0,73 |
