Glass fiber polyurethane DC65
| Certified since | 12/09/2025 |
| Climate zone | Ζεστή, εύκρατη |
| Τύπος | Operable |
| Sub type | |
| Efficiency class | phB |
| Υλικό | GFRP |
| UW | 0,99 W/(m2K) |
| Open type | Inward opening |
Περιγραφή
GFRP frame with Aerogel inlays (0.023 W/(mK)) and three-level gasket separation. Rebate filled with PU-foam (0.04 W/(mK)). Glazing block and shim considered via mass-equivalence. Pane thickness: 47 mm (5/16/5/16/5), rebate depth: 12 mm.
| Όνομα | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

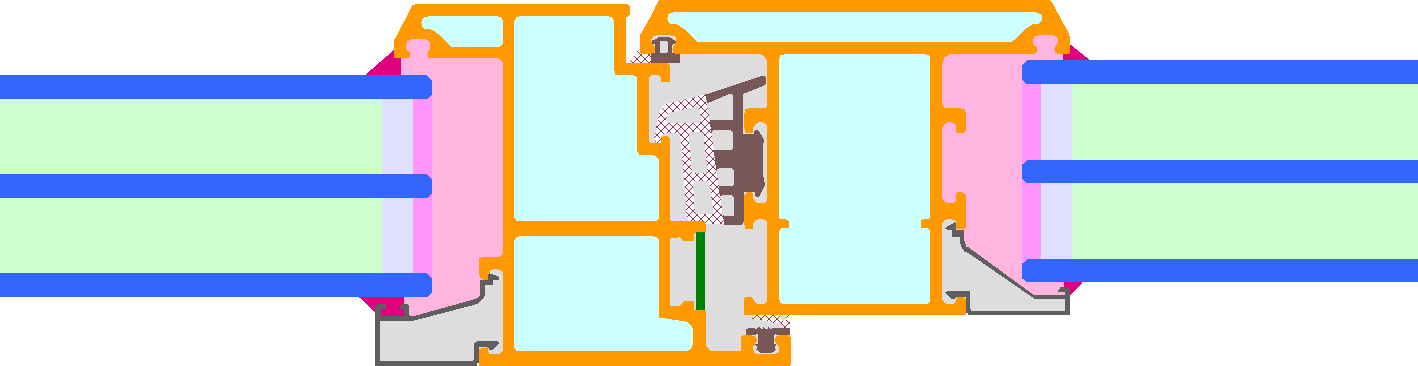

| Mullion 1 casement | 143 mm | 0,91 W/(m²K) | 0,033 W/(mK) | 0,710 |

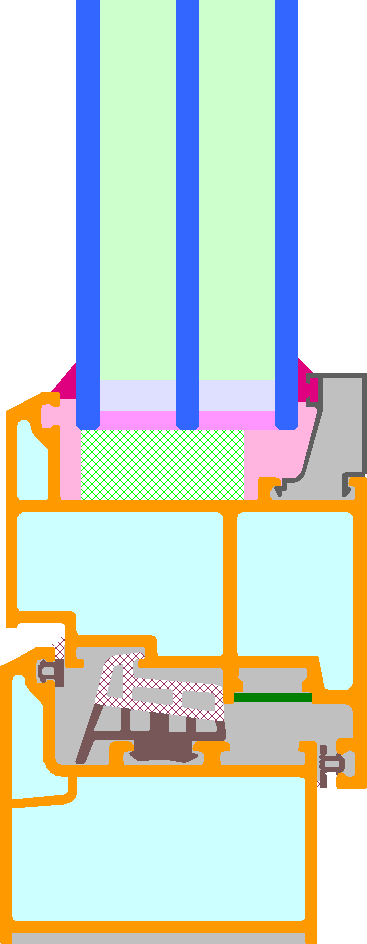

| Bottom | 117 mm | 0,98 W/(m²K) | 0,032 W/(mK) | 0,720 |

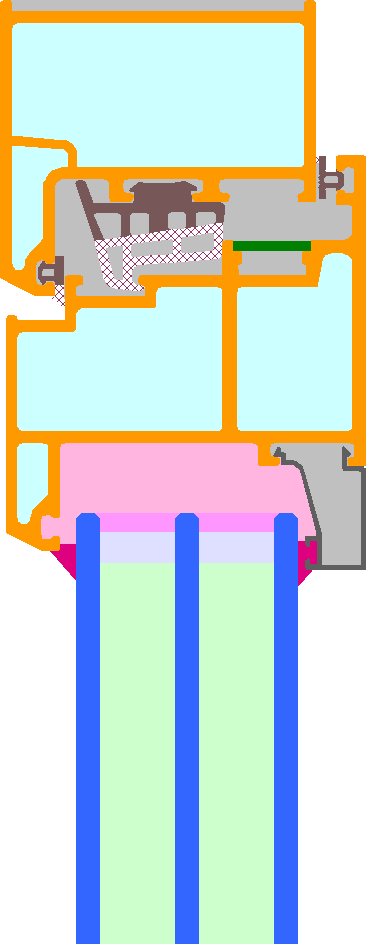

| Head | 117 mm | 0,92 W/(m²K) | 0,033 W/(mK) | 0,730 |
| Jamb | 117 mm | 0,92 W/(m²K) | 0,033 W/(mK) | 0,730 |
