Window
WG85-10


Component id: 0701wi03
Manufacturer: Wingreen Energy-saving Window and Door Co., Ltd
Category: Operable
Material: Aluminium
UW: 0.79 W/(m2 K)
Efficiency class: phB
Spacer: SWISSPACER Ultimate
Climate zones: Cool, temperate

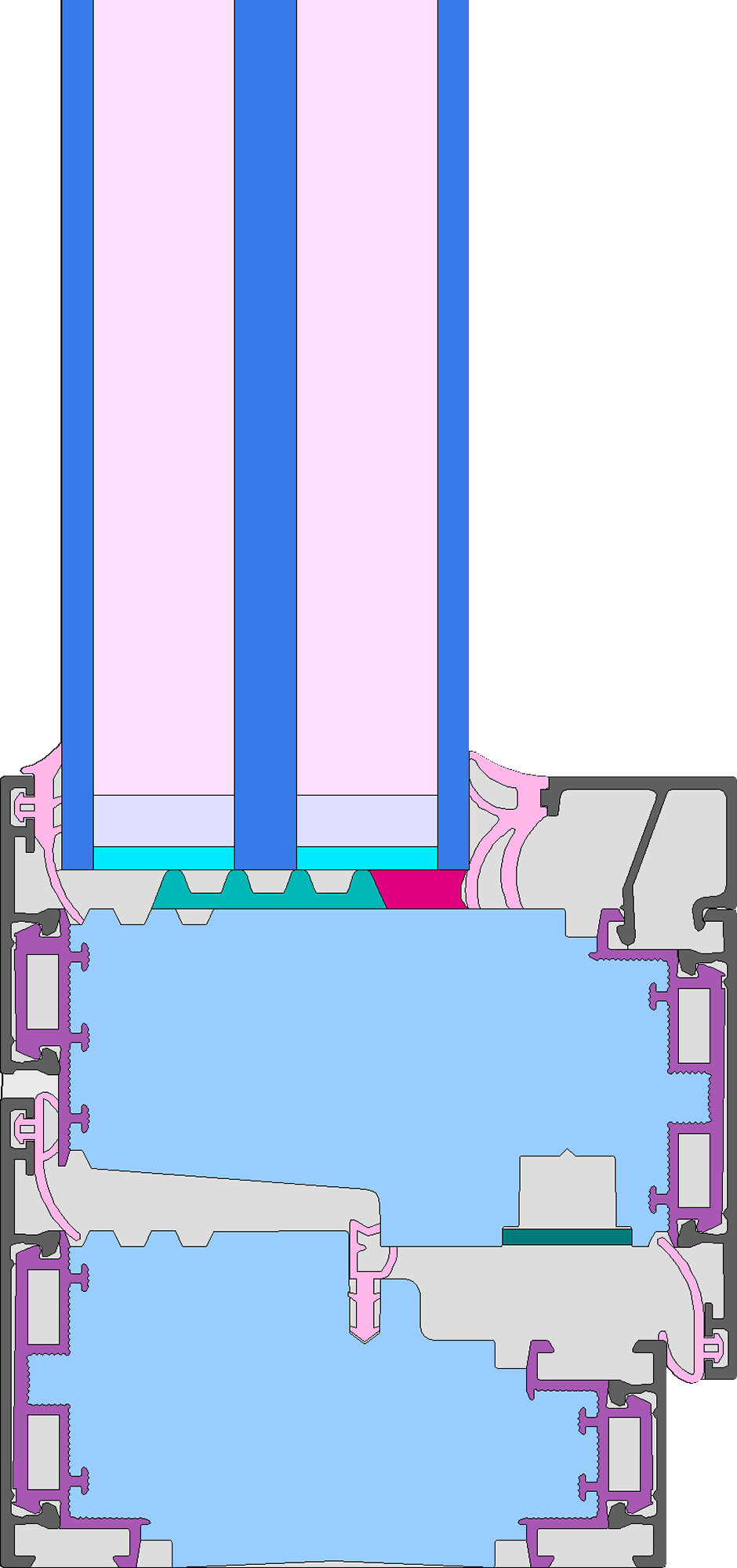

Frame cut Frame width
bf/mm		 Frame U value
Uf/(W/(m2 K))		 Glass edge Ψ value
Ψg/(W/(m K))		 Temperature factor
fRsi = 0,25 m2K/W
Bottom 101 0.82 0.022 0.75
Lateral 101 0.82 0.022 0.75
Mullion 1 casement 175 0.82 0.022 0.75
Top 101 0.82 0.022 0.75

Please select preferred window-layout

U-Value Calculation

 m  m  m
 m
 m 		Pick window-layout


 W/(m2 K)
UW = ? W/(m2 K)

Installationsituation

UW, installed = ? W/(m2 K)

Cost Calculation

Orientation :

Please choose orientation of the window
to get the PHPP-standard values for solar radiation

kKh/a

kWh/(m2a)


Recommended Value for Reduction Factor is 0.9
Shading Factor should be between 0.1 and 1. For standard situations look in ISO EN 13790

€/kWh
%
Years

€
Present Value(energy) = ? €
Present Value(total) = ? €
