Sliding_door
LUMIA (sliding)


Image of 1804sl03 LUMIA (sliding): (Sliding Door)
Component id: 1804sl03
Fabricante: MINCO S.A.
Categoría: Sliding Door
Material: Timber / Aluminium
UW: 0,79 W/(m2 K)
Efficiency class: phB
Spacer: SWISSPACER ULTIMATE
Climate zones: Frío, templado
Descripción: Timber-aluminium frame with wood-fibre (0,042 W/(mK)). SWISSPACER Ultimate with butyl secondary seal. Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 16 mm.
Certified since: 27 de diciembre de 2021

Frame cut Frame width
bf
mm
Frame U-value
Uf
W/(m2 K)
Glass edge Ψ-value
Ψg
W/(m K)
Temperature factor
fRsi = 0.25 m2K/W
Mullion 1 casement 132 1,18 0,021 0,70

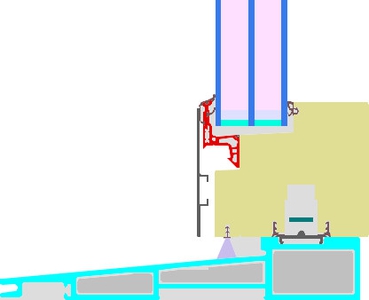

Bottom Fixed 134 1,14 0,021 0,71
Top fixed 136 0,63 0,022 0,76
Lateral fixed 136 0,63 0,022 0,76
Top 138 0,80 0,022 0,76
Lateral 139 0,73 0,021 0,74
Threshold 132 1,17 0,021 0,70

Coming soon
