Name: NV-105
Brand: Anhui New View Door, Window & Curtain Wall Engineering Co.,LTD

Component id:	1920wi03
Fabricante:	Anhui New View Door, Window & Curtain Wall Engineering Co.,LTD
Categoría:	Operable
Material:	Aluminio
`U`_W:	0,80 W/(m² K)
Efficiency class:	phC
Spacer:	Technoform-Spacer SP16
Climate zones:	Frío, templado

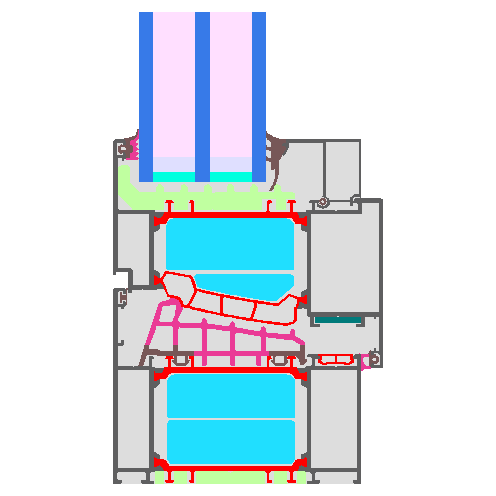

Descripción:	Aluminium frame insulated by PU foam, 0.027 W/(mK) abd PE foam in the glazing rebate 0.036 W/(mK). Pane thickness: 54 mm (6/18/6/18/6), rebate depth: 15 mm. Spacer: Technoform-Spacer SP16 with butyl as secondary seal.
Certified since:	19 de septiembre de 2022

Descargar certificado:

Frame cut	Frame width `b`_f mm	Frame `U`-value `U`_f W/(m² K)	Glass edge `Ψ`-value `Ψ`_g W/(m K)	Temperature factor `f`_{Rsi = 0.25 m²K/W}
Mullion 2 casements	237	0,80	0,025	0,78
Bottom	146	0,81	0,025	0,78
Top	146	0,81	0,025	0,78
Lateral	146	0,81	0,025	0,78

Installation situation
I want to use my own installation values
Ψ_up= W/(mK) Ψ_down= W/(mK)	Ψ_left= W/(mK) Ψ_right= W/(mK)
Or select certified situation:	`U`_{W, installed} = ? W/(m² K)

b₁ =  m b₂ =  m b₃ =  m

`h_top` =		m
`h_bottom` =		m

Glazing

`U`_g		W/(m² K)
G-value

U_W = ? W/(m² K)

Cost calculation
Orientation:	Please choose orientation of the window to get the PHPP-standard values for solar radiation
Degree days: kKh/a Solar radiation: kWh/(m²a)	Reduction factor of solar yield: Shading factor:	Recommended value for reduction factor is 0.9 Shading factor should be between 0.1 and 1. For standard situations see ISO EN 13790
Energy price €/kWh	Real interest rate %	Lifetime Years
Purchase price: €
	Present value (energy) = ? € Present value (total) = ? €
