ARTEVO
| Certified since | 23 mars 2026 |
| Zone climatique | Frais, tempéré |
| Surface material | PVC |
| Door type | Door |
| How to open | Inside |
| UW | - |
Description
PVC frame with low emissivity bars (e = 5 %) for improving the thermal resistance; Steel reinforcement in the sash and at the lock side also in the blind frame; Maximum Sash dimensions with the chosen reinforcement: 1.05 m * 2.30 m. Pane thickness: 52 mm (6/18/4/18/6), rebate depth: 21 mm. Spacer: MULTITECH G.
| Nom | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

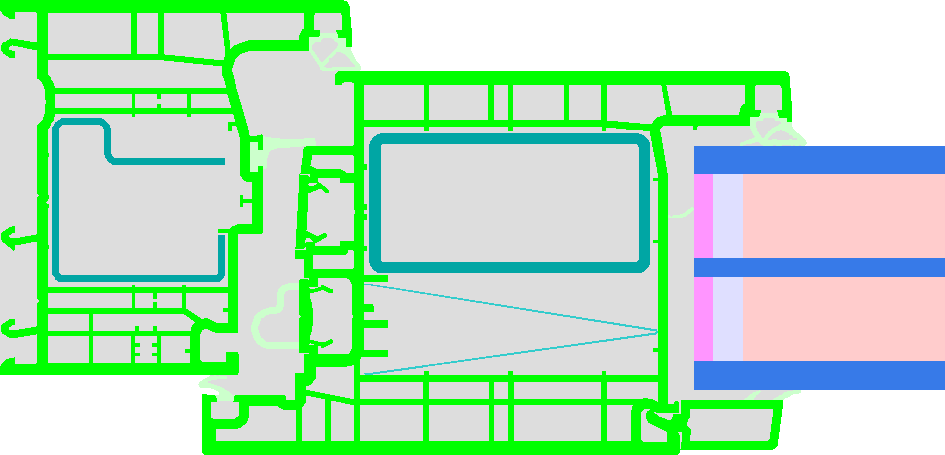

| Door hinge side | 169 mm | 0,99 W/(m²K) | 0,029 W/(mK) | 0,71 |

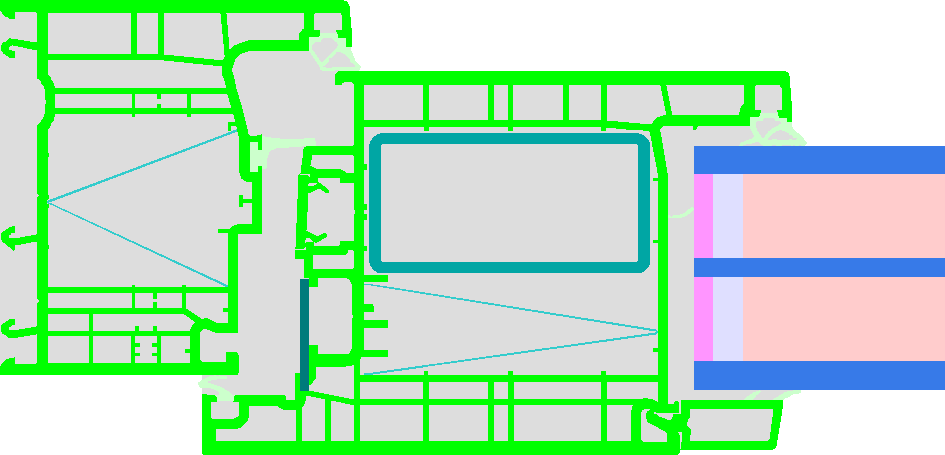

| Door lock side | 169 mm | 0,92 W/(m²K) | 0,029 W/(mK) | 0,70 |

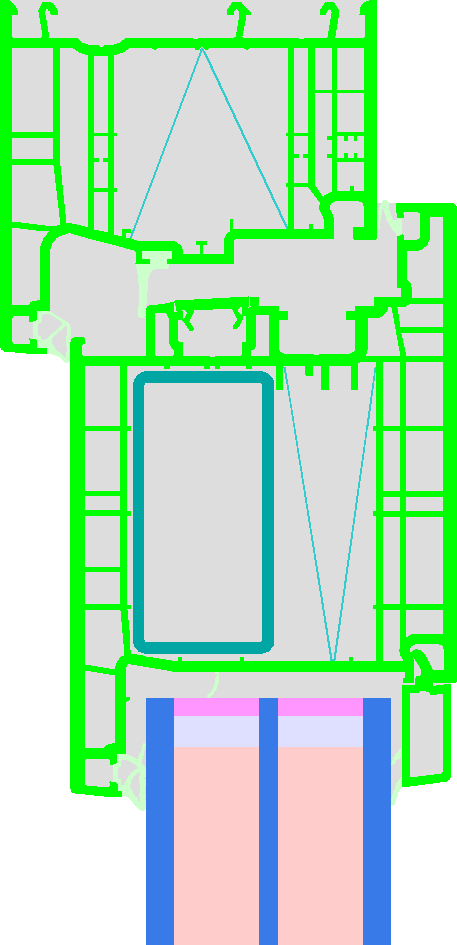

| Head | 169 mm | 0,89 W/(m²K) | 0,029 W/(mK) | 0,71 |

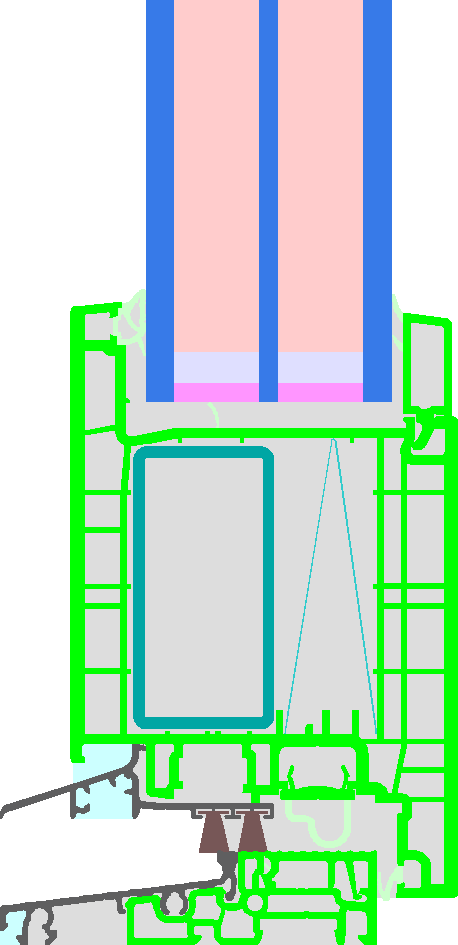

| Threshold | 136 mm | 1,13 W/(m²K) | 0,030 W/(mK) | 0,58 |
