Inova 76 mm insulated
| Certified since | 21 mai 2025 |
| Zone climatique | Chaud, tempéré |
| Type | Operable |
| Sub type | |
| Efficiency class | phB |
| Material | PVC |
| UW | 0,98 W/(m2K) |
| Open type |
Description
PVC window frame with insulation inserts made out of PU foam (0.027 W/(mK)) and steel reinforcements in both the frame and the sash. Pane thickness: 44 mm (4/16/4/16/4), rebate depth: 23 mm. Spacer: SWISSPACER Ultimate with butyl as secondary seal.
| Nom | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

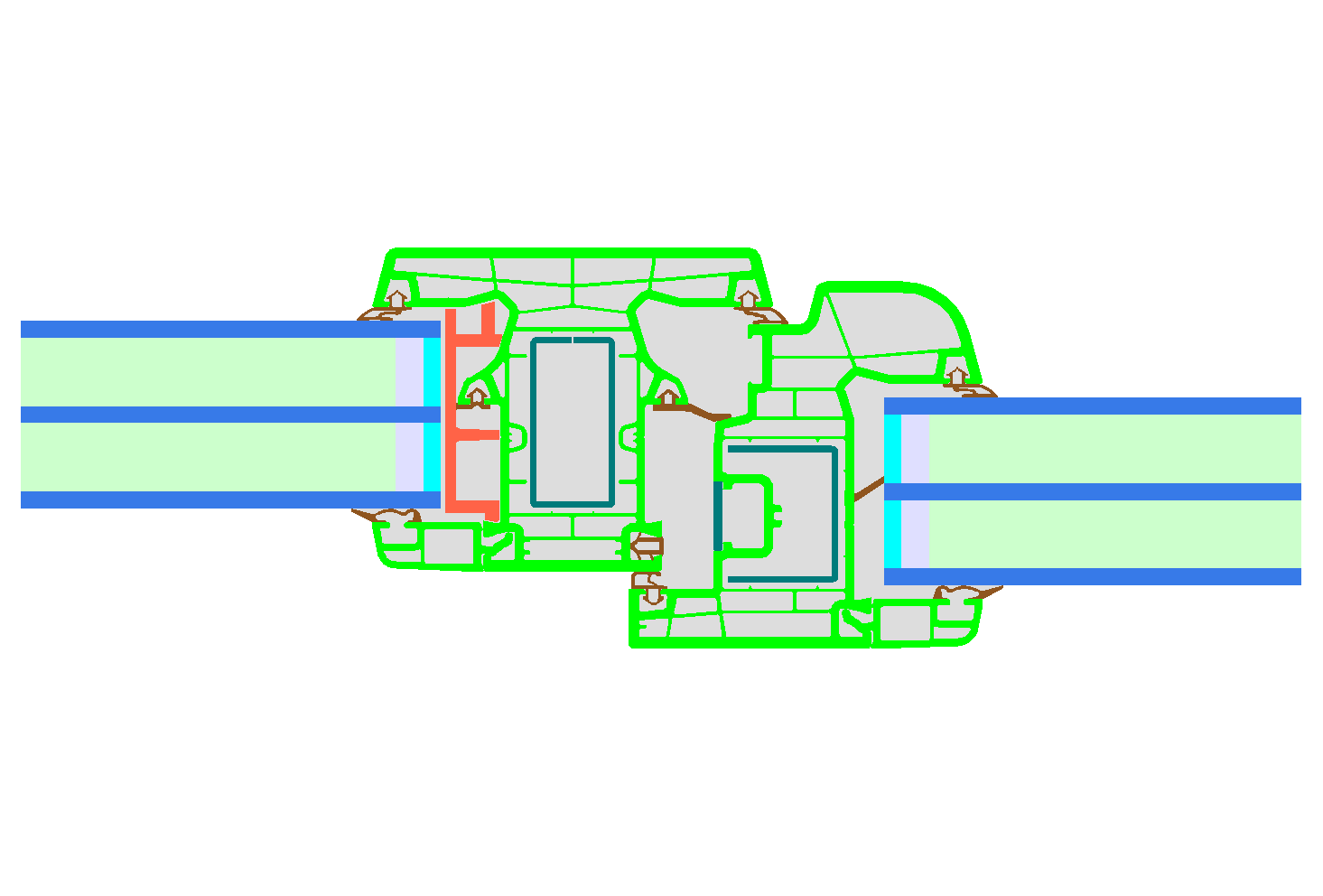

| Flying Mullion | 143 mm | 1,09 W/(m²K) | 0,022 W/(mK) | 0,690 |

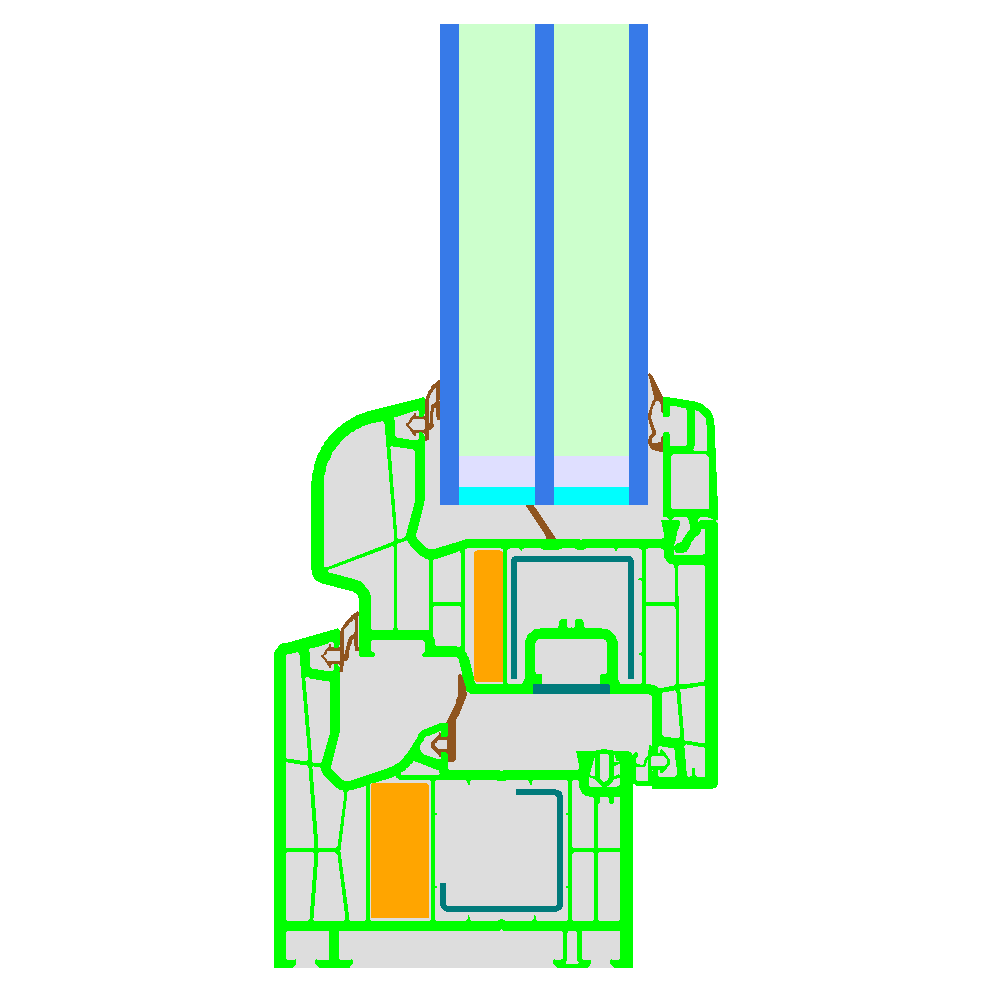

| Bottom | 121 mm | 0,98 W/(m²K) | 0,022 W/(mK) | 0,720 |

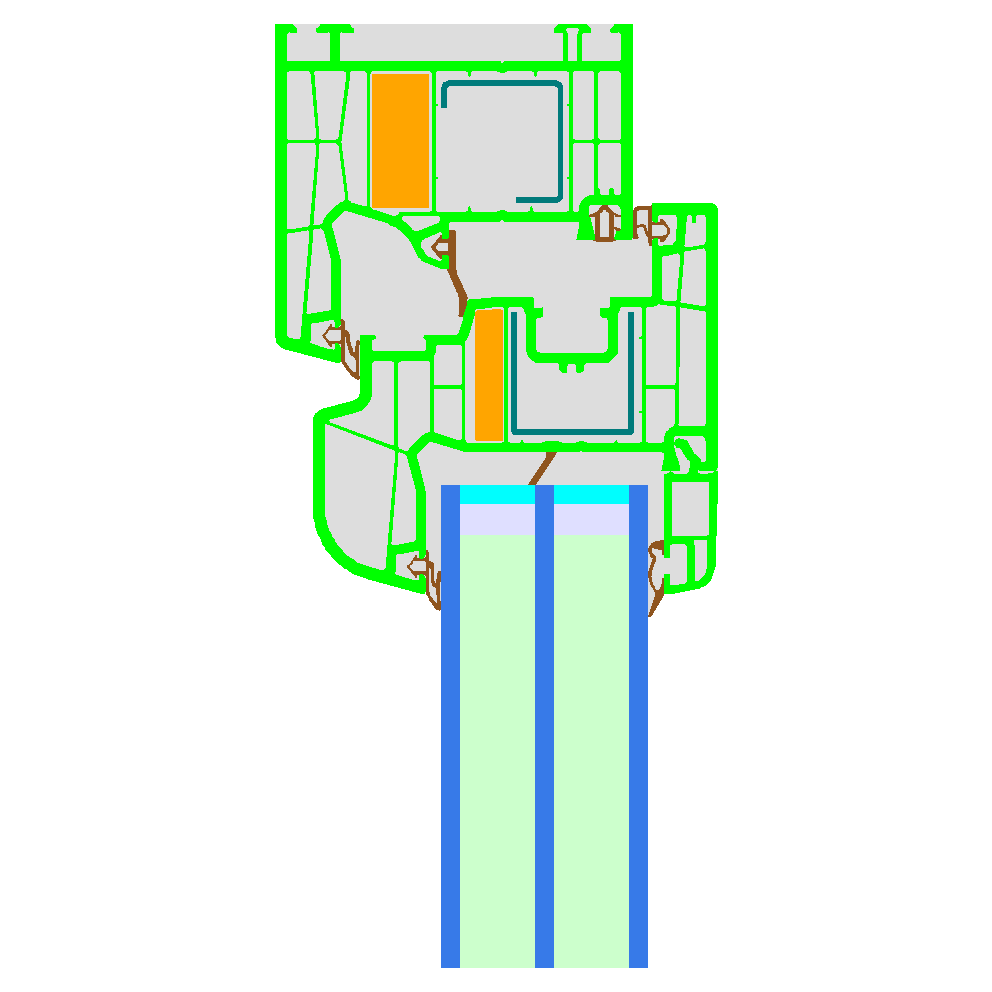

| Head | 121 mm | 0,97 W/(m²K) | 0,022 W/(mK) | 0,720 |
| Jamb | 121 mm | 0,97 W/(m²K) | 0,022 W/(mK) | 0,720 |
