Alavus

Certified since	24 septembre 2021
Climate zone	Frais, tempéré
Type	Operable
Sub type	Coupled window
Efficiency class	phB
Material	Timber / aluminium
`U`_W	0,80 W/(m²K)
Open type	Inward opening

Description

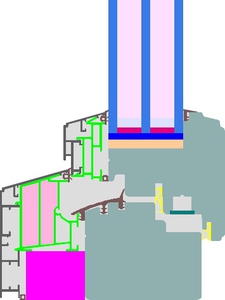

Timber-aluminium window frame, insulated by PU-foam (0.040 W/(mK)), and EPS-foam (0.0375 W/(mK)). spacer: SWISSPACER Ultimate with silicone as secondary seal. Pane thickness: 50 mm (6/16/6/16/6), rebate depth: 24 mm.

Nom	Frame width	U-value	Ψ-value	Frsi-value
Flying Mullion	162 mm	0,79 W/(m²K)	0,030 W/(mK)	0,722
Bottom	125 mm	0,77 W/(m²K)	0,031 W/(mK)	0,735
Top	125 mm	0,77 W/(m²K)	0,031 W/(mK)	0,735
Lateral	125 mm	0,77 W/(m²K)	0,031 W/(mK)	0,735

Component ID

1778wi03

Export

PHPP 9

PHPP 10

Certificat

English

Deutsch

Manufacturer

Beijing Alavus Building Energy Saving Components co., Ltd.

Adresse

High and New Building Materials Mall,Xisanqi,Haidian District
100096 Beijing
China

Téléphone

+86 03168363212

E-mail

13691370937@139.com

Site web

http://www.alavus.com.cn

U-value calculation

Please select preferred window layout

Here you will find Passive House components for your projects!:

We're here to support you in your search for suitable Passive House components. Simply select the location where the product is to be used. The Passive House Portal then helps lists the certified components that are available for this climate zone

You can adjust the location selection at any time by clicking the map pin icon at the top in the menu bar

Installation situation
I want to use my own installation values
Ψ_up= W/(mK) Ψ_down= W/(mK)	Ψ_left= W/(mK) Ψ_right= W/(mK)
Or select certified situation:	`U`_{W, installed} = ? W/(m² K)

U-value calculation
	`b₁`  m	`b₂`  m	`b₃`  m
`h_top`  m `h_bottom`  m				Glazing `U`_g  W/(m² K) G-value
	`U`_W = ? W/(m² K)

Cost calculation
Orientation:	Please choose orientation of the window to get the PHPP-standard values for solar radiation
Degree days: kKh/a Solar radiation: kWh/(m²a)	Reduction factor of solar yield: Shading factor:	Recommended value for reduction factor is 0.9 Shading factor should be between 0.1 and 1. For standard situations see ISO EN 13790
Energy price €/kWh	Real interest rate %	Lifetime Years
Purchase price: €
	Present value (energy) = ? € Present value (total) = ? €
