Série 2 Fixed H1

Certified since 25 mars 2025
Climate zone Frais, tempéré
Type Fixed
Sub type
Efficiency class phA
Material PVC / aluminium
UW 0,80 W/(m2K)
Open type

Description

Cadre en PVC avec revêtement en aluminium à l'extérieur. Dimensions maximales selon les spécifications du fabricant. Épaisseur du verre 44 mm (3/17,5/3/17,5/3), profondeur de feuillure: 20 mm.

Nom Frame width U-value Ψ-value Frsi-value

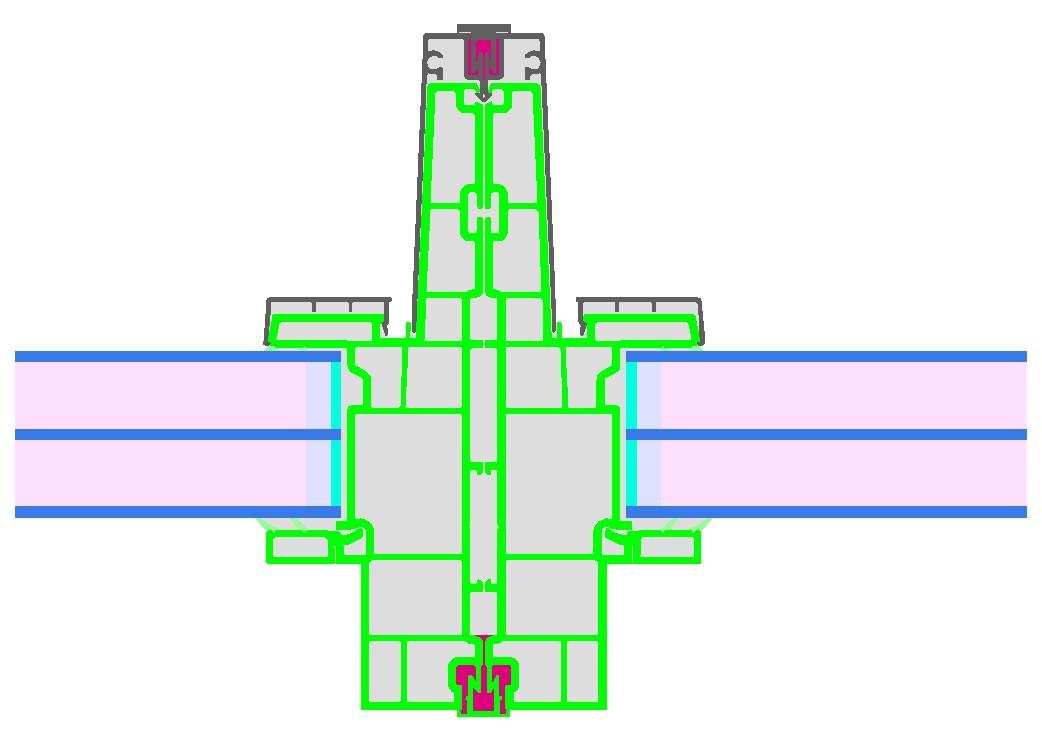

Mullion Fixed 115 mm 1,03 W/(m²K) 0,017 W/(mK) 0,740

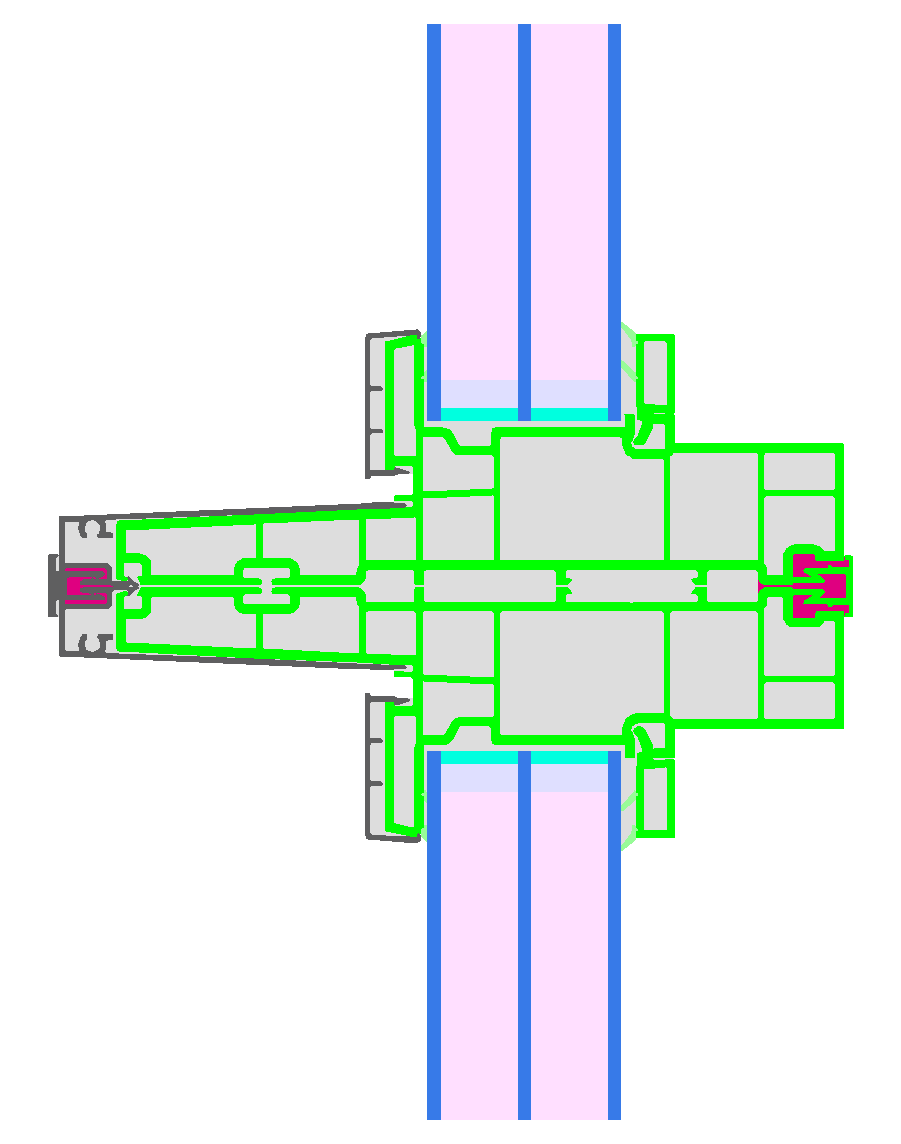

Transom fixed 115 mm 1,03 W/(m²K) 0,017 W/(mK) 0,740

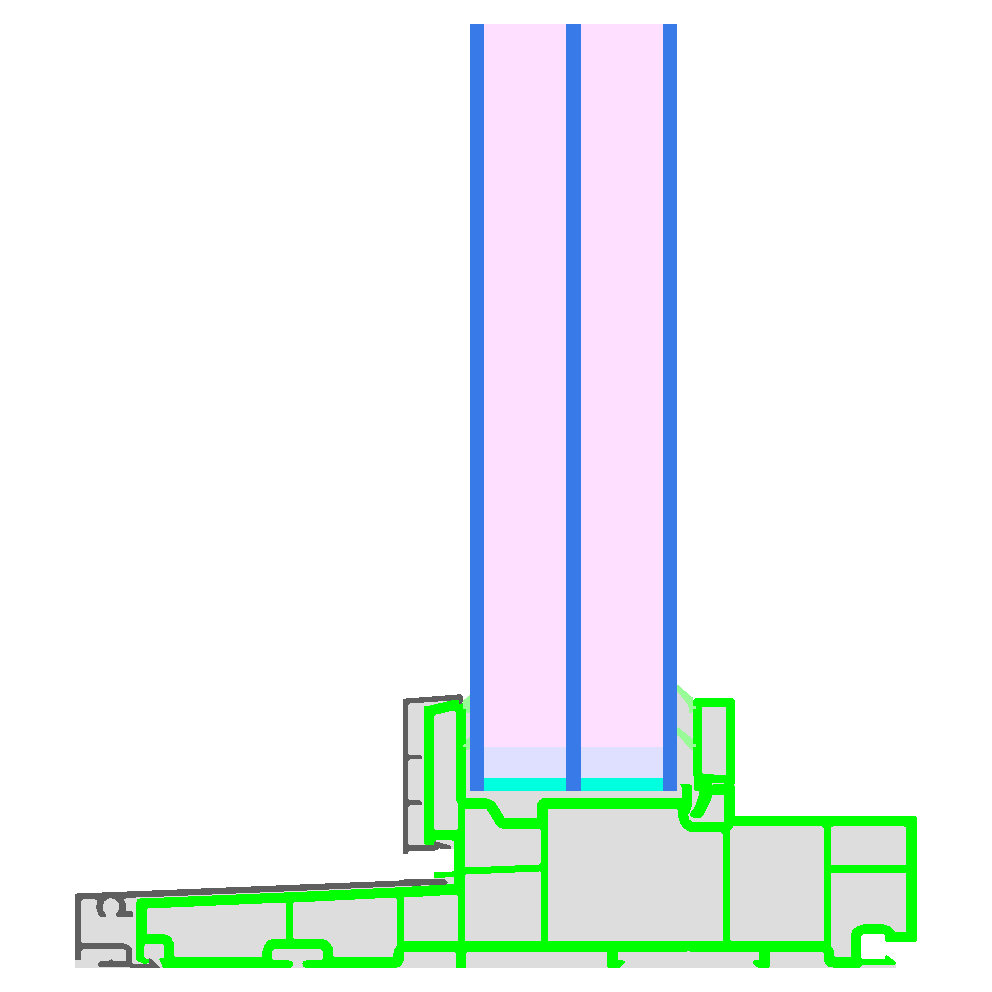

Bottom Fixed 57 mm 1,02 W/(m²K) 0,017 W/(mK) 0,730

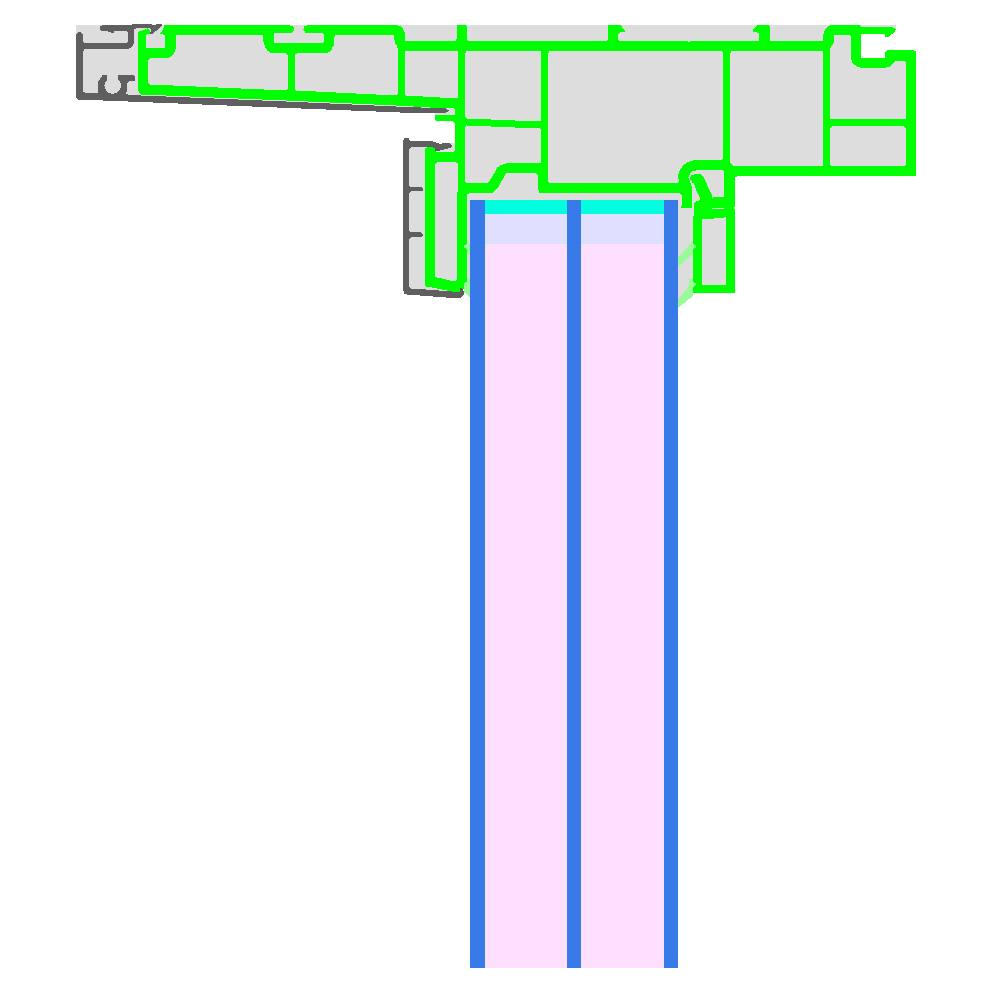

Top fixed 57 mm 1,02 W/(m²K) 0,017 W/(mK) 0,730
Lateral fixed 57 mm 1,02 W/(m²K) 0,017 W/(mK) 0,730
