Name: WSP-109
Brand: Jiangsu Weaspe Energy-saving Building Technology Co., Ltd.

Component id:	1660wi03
Manufacturer:	Jiangsu Weaspe Energy-saving Building Technology Co., Ltd.
Catégorie:	Operable
Material:	Aluminium
`U`_W:	0,79 W/(m² K)
Efficiency class:	phC
Spacer:	Technoform-Spacer SP16
Climate zones:	Frais, tempéré
Description:	Aluminium frame with thermal separation (PA 0.30 W/(m)) and insulation (Kooltherm 0.022 W/(mK)); Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 15 mm. Spacer: TGI-Spacer Precisision with silicone secondary seal.
Certified since:	6 janvier 2021

Télécharger le certificat:

Frame cut	Frame width `b`_f mm	Frame `U`-value `U`_f W/(m² K)	Glass edge `Ψ`-value `Ψ`_g W/(m K)	Temperature factor `f`_{Rsi = 0.25 m²K/W}

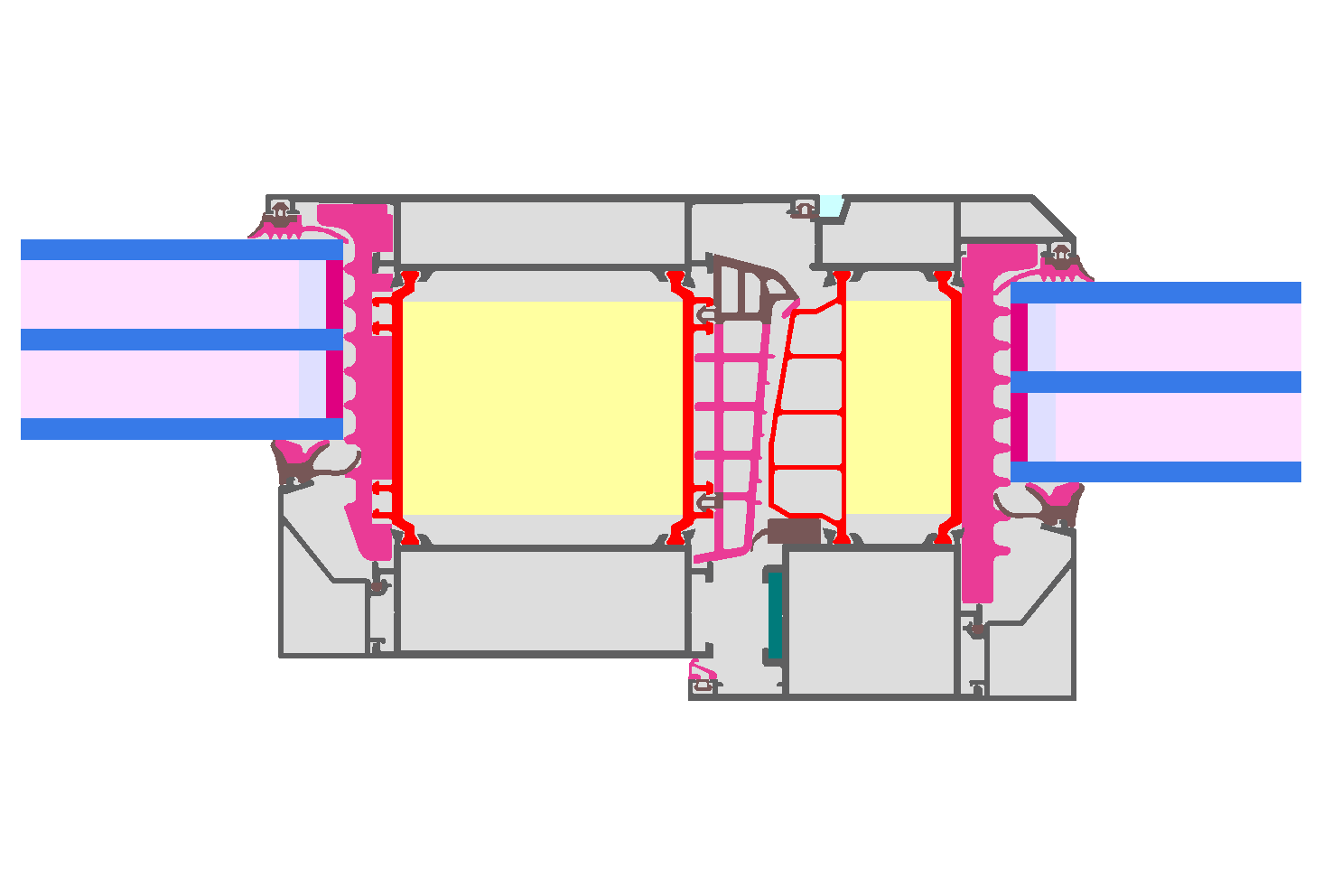

Transom 1 casement	190	0,77	0,030	0,73

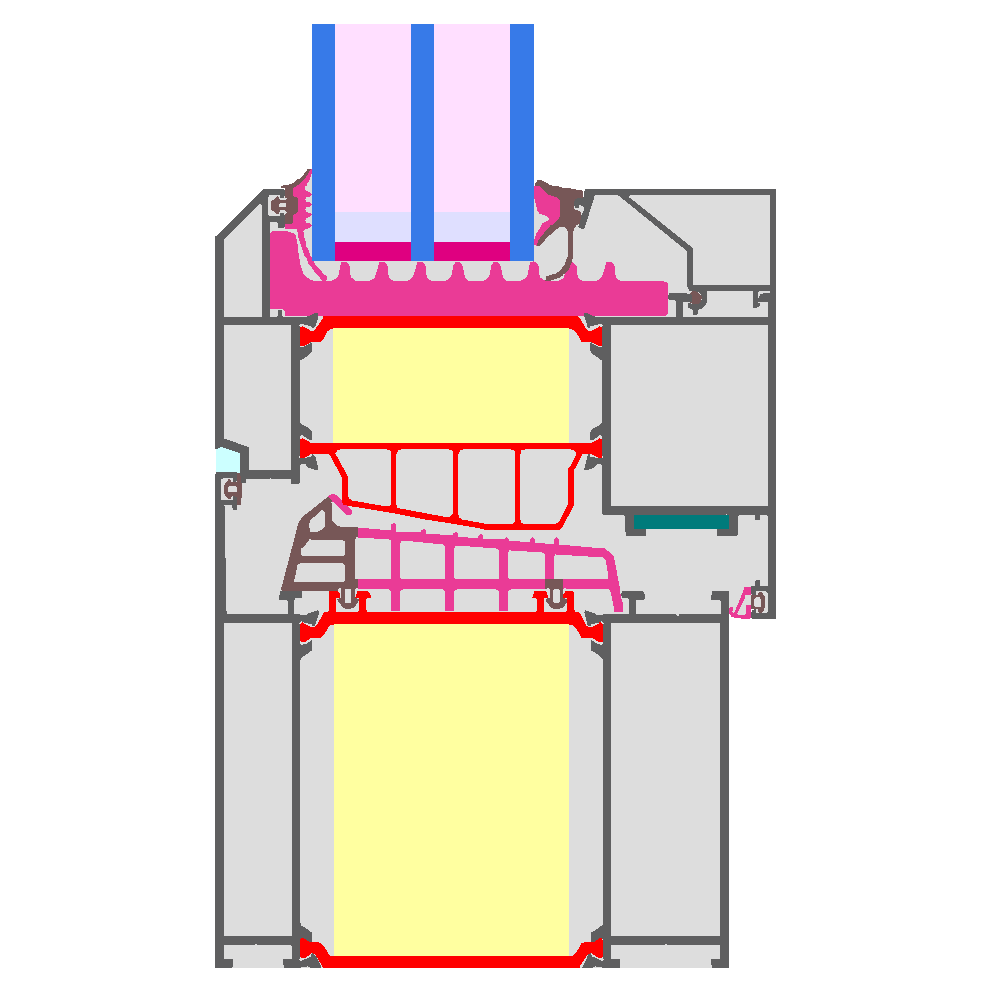

Bottom	165	0,76	0,029	0,75
Top	165	0,76	0,029	0,75
Lateral	165	0,76	0,029	0,75

Installation situation
I want to use my own installation values
Ψ_up= W/(mK) Ψ_down= W/(mK)	Ψ_left= W/(mK) Ψ_right= W/(mK)
Or select certified situation:	`U`_{W, installed} = ? W/(m² K)

b₁ =  m b₂ =  m b₃ =  m

`h_top` =		m
`h_bottom` =		m

Glazing

`U`_g		W/(m² K)
G-value

U_W = ? W/(m² K)

Cost calculation
Orientation:	Please choose orientation of the window to get the PHPP-standard values for solar radiation
Degree days: kKh/a Solar radiation: kWh/(m²a)	Reduction factor of solar yield: Shading factor:	Recommended value for reduction factor is 0.9 Shading factor should be between 0.1 and 1. For standard situations see ISO EN 13790
Energy price €/kWh	Real interest rate %	Lifetime Years
Purchase price: €
	Present value (energy) = ? € Present value (total) = ? €
