2657wi04 KÖMMERLING 76: (Operable)
2657wi04 KÖMMERLING 76: (Operable): OB1
2657wi04 KÖMMERLING 76: (Operable): 1M1
2657wi04 KÖMMERLING 76: (Operable): OH1
2657wi04 KÖMMERLING 76: (Operable): OJ1
KÖMMERLING 76
| Certified since | 14 juillet 2016 |
| Zone climatique | Chaud, tempéré |
| Type | Operable |
| Sub type | |
| Efficiency class | phB |
| Material | PVC |
| UW | 0,99 W/(m2K) |
| Opening direction | Inward opening |
Description
PVC window frame with steel reinforcements inside the sash and insulation fillings (0.031 W/(mK)) inside the frame. Pane thickness: 49 mm (4/18,5/4/18,5/4), rebate depth: 18 mm, spacer: SWISSPACER Ultimate
| Nom | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

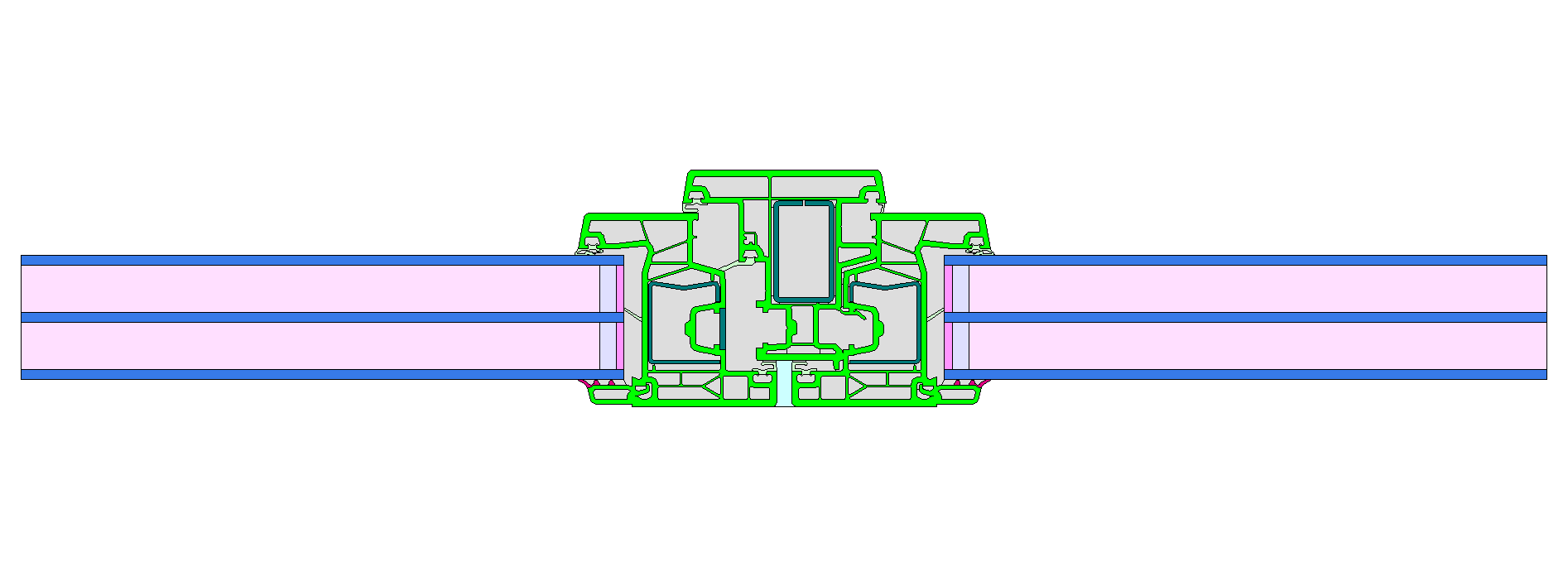

| Battement | 162 mm | 1,20 W/(m²K) | 0,024 W/(mK) | 0,69 |
| Bottom | 116 mm | 0,98 W/(m²K) | 0,027 W/(mK) | 0,72 |
| Head | 116 mm | 0,98 W/(m²K) | 0,027 W/(mK) | 0,72 |
| Jamb | 116 mm | 0,98 W/(m²K) | 0,027 W/(mK) | 0,72 |
