2625wi04 SHOBT 108 system: (Operable)

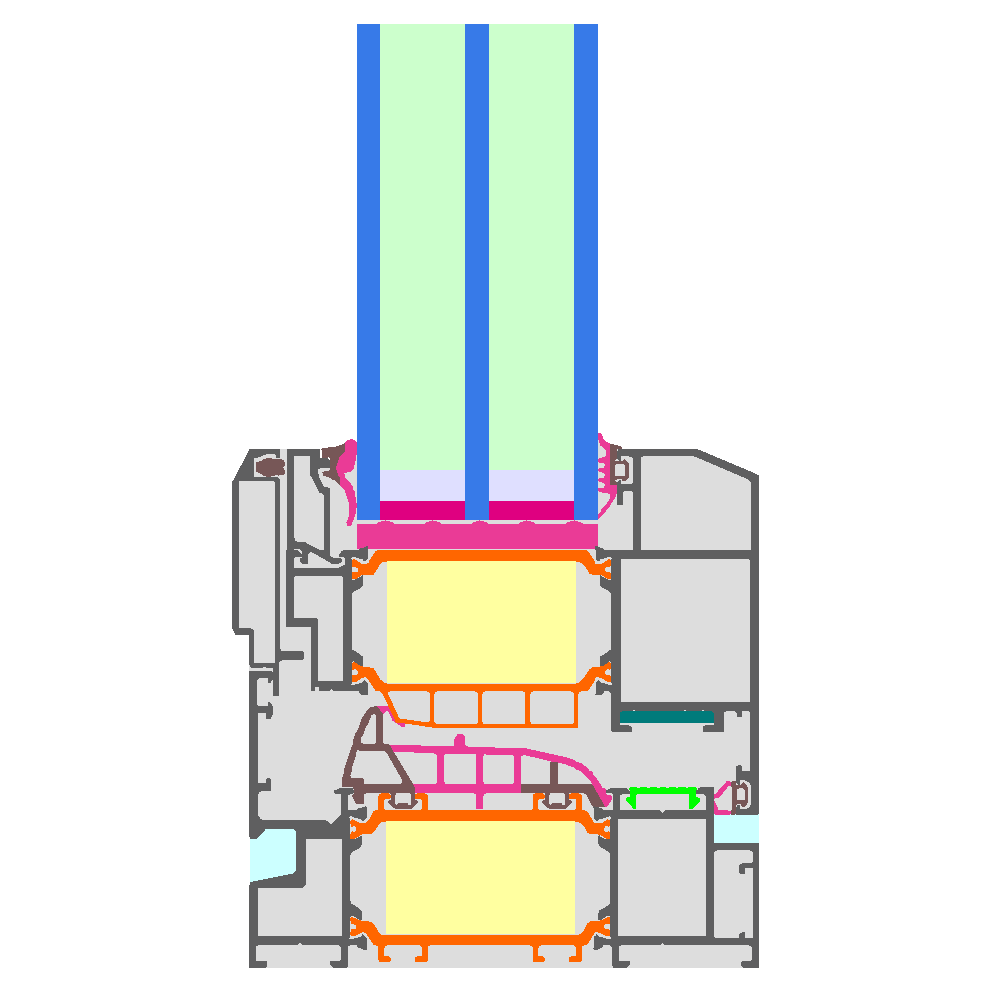

2625wi04 SHOBT 108 system: (Operable): OB1

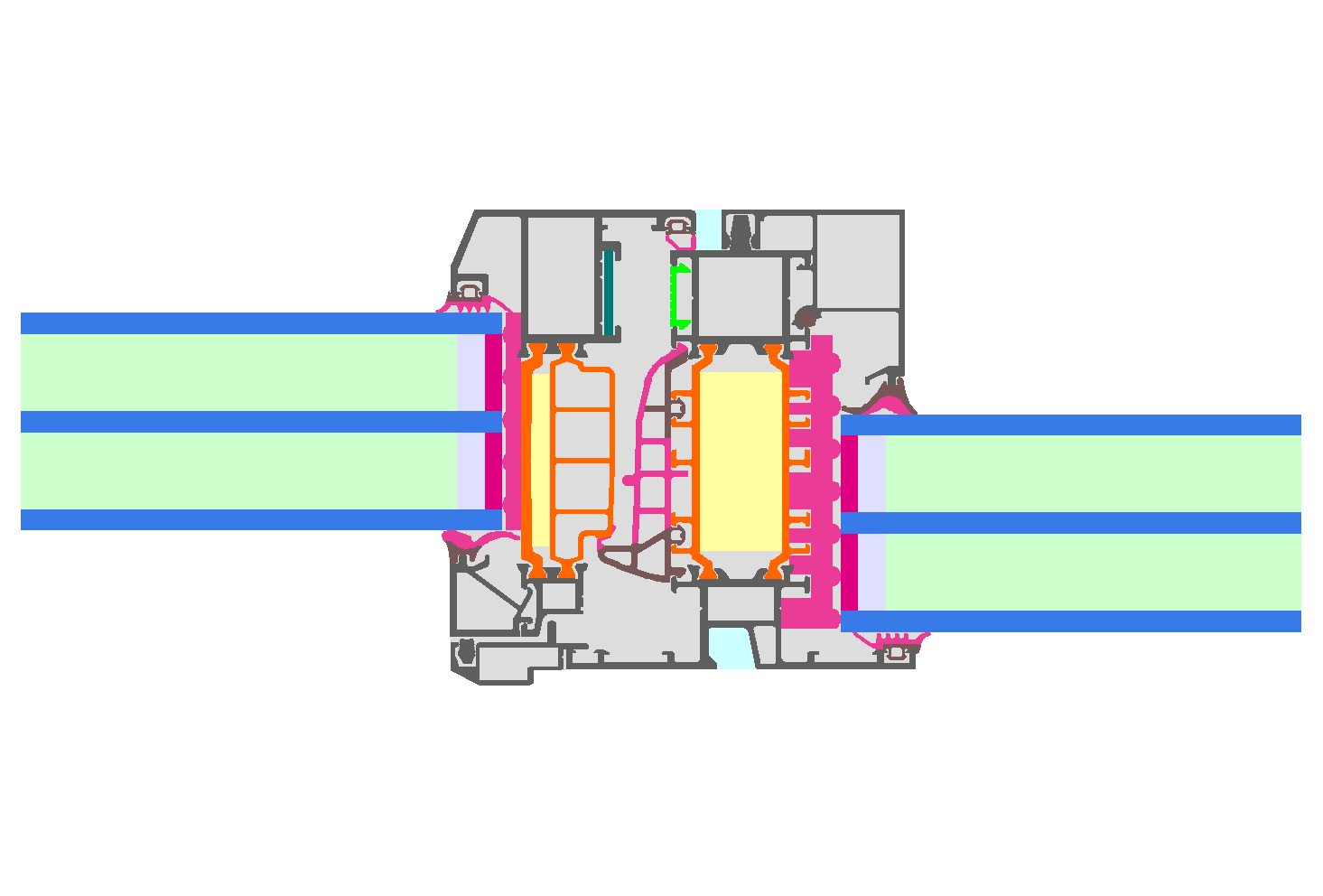

2625wi04 SHOBT 108 system: (Operable): 1T1
SHOBT 108 system
| Certified since | 13 juillet 2026 |
| Zone climatique | Chaud, tempéré |
| Type | Operable |
| Sub type | |
| Efficiency class | phB |
| Material | Aluminium |
| UW | 0,97 W/(m2K) |
| Open type | Inward opening |
Description
Aluminium frame with thermal separation (low lambda PA 0.21 W/(mK))and insulation (Kooltherm 0.022 W/(mK) ); Pane thickness: 51 mm (5/18/5/18/5); Rebate depth: 15 mm; Spacer: SWISSPACER ULTIMATE; Secondary sealing: Silikon
| Nom | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|
| Traverse | 109 mm | 1,03 W/(m²K) | 0,029 W/(mK) | 0,71 |
| Bottom | 110 mm | 0,93 W/(m²K) | 0,026 W/(mK) | 0,73 |
| Head | 110 mm | 0,93 W/(m²K) | 0,026 W/(mK) | 0,73 |
| Jamb | 110 mm | 0,93 W/(m²K) | 0,026 W/(mK) | 0,73 |
