ENERsign primus slide
| Certified since | 08 Febbraio 2022 |
| Climate zone | Freddo, temperato |
| Tipo | Sliding door |
| Sub type | |
| Efficiency class | phB |
| Material | Timber / aluminium |
| UW | 0,80 W/(m2K) |
| Open type |
Descrizione
Timber-Aluminum frame, insulated by EPS, PVC, PE and phenolic foam. The dewpoint criterion at the threshold is achieved in conjunction with the installation. Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 19 mm. Spacer: Multitech G with polyurethane as secondary seal (4.5 mm, accredited by glass supplier).
| Nome | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

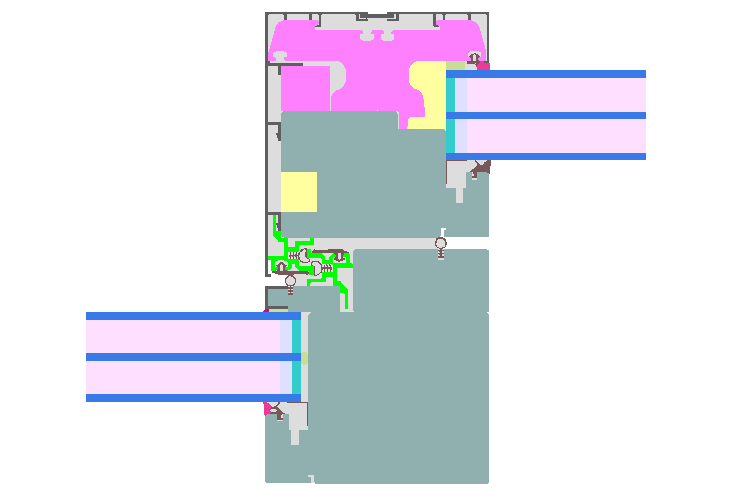

| Mullion 1 casement | 120 mm | 1,19 W/(m²K) | 0,025 W/(mK) | 0,700 |

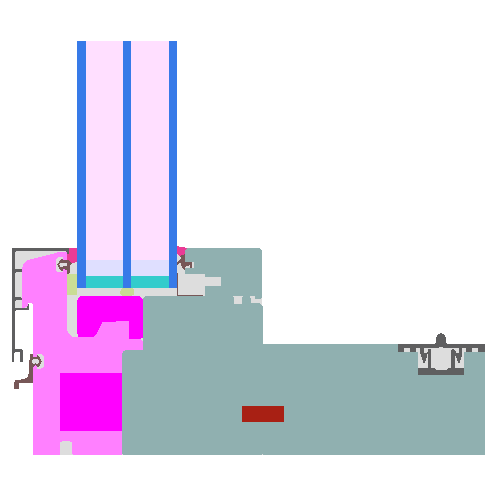

| Bottom Fixed | 100 mm | 0,54 W/(m²K) | 0,029 W/(mK) | 0,720 |

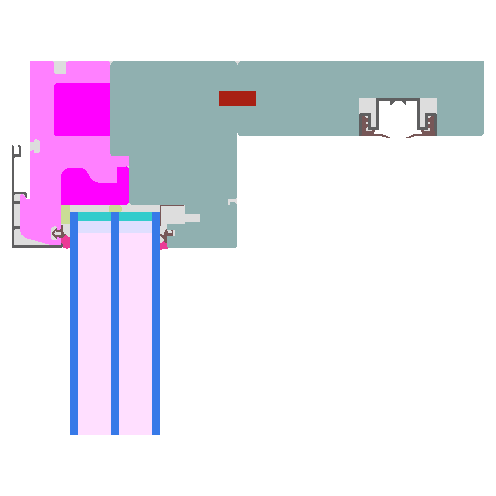

| Top fixed | 100 mm | 0,55 W/(m²K) | 0,029 W/(mK) | 0,740 |

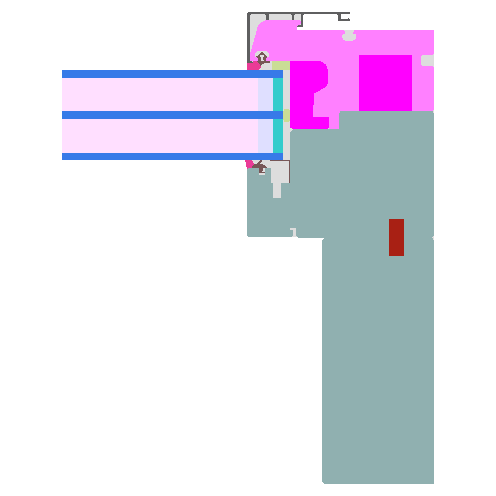

| Jamb fixed | 100 mm | 0,53 W/(m²K) | 0,025 W/(mK) | 0,720 |

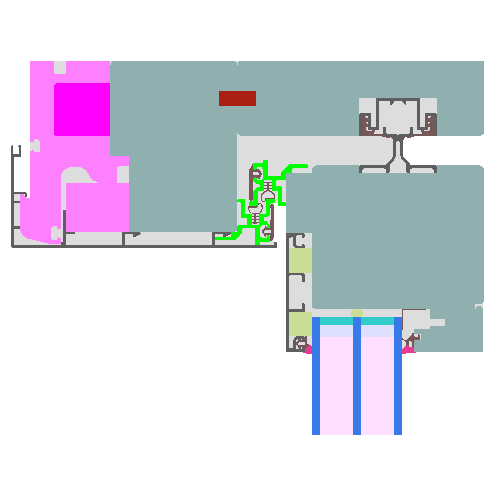

| Head | 156 mm | 1,05 W/(m²K) | 0,024 W/(mK) | 0,720 |

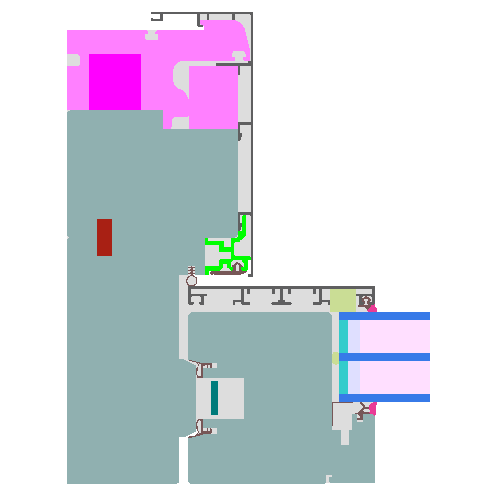

| Jamb | 165 mm | 0,86 W/(m²K) | 0,024 W/(mK) | 0,710 |

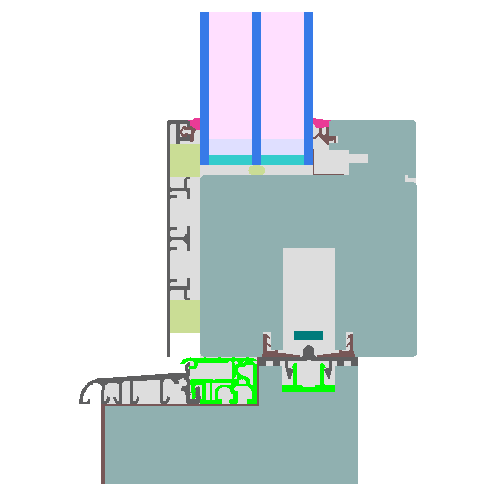

| Threshold | 154 mm | 1,15 W/(m²K) | 0,024 W/(mK) | 0,620 |
