2446wi05 Ventana Termoacústica Aventa: (Operable)
2446wi05 Ventana Termoacústica Aventa: (Operable)
2446wi05 Ventana Termoacústica Aventa: (Operable): FM1
2446wi05 Ventana Termoacústica Aventa: (Operable): OB1
2446wi05 Ventana Termoacústica Aventa: (Operable): OH1
2446wi05 Ventana Termoacústica Aventa: (Operable): OJ1
Ventana Termoacústica Aventa
| Certified since | 09 Aprile 2025 |
| Climate zone | Caldo |
| Tipo | Operable |
| Sub type | |
| Efficiency class | phC |
| Material | Timber |
| UW | 1,20 W/(m2K) |
| Open type | Inward opening |
Descrizione
Wood frame (spruce/fir, 0,110 W/(mK)). Glazing thickness 24mm (4/16/4), rebate depth 14mm, spacer: SWISSPACER Ultimate with butyl secondary seal.
| Nome | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

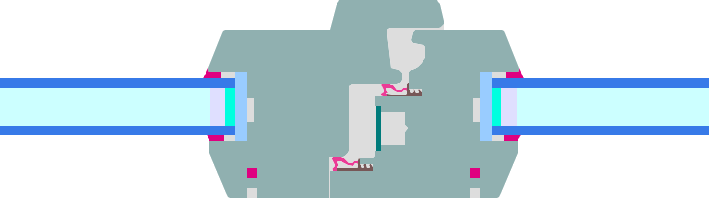

| Flying Mullion | 132 mm | 1,19 W/(m²K) | 0,033 W/(mK) | 0,570 |

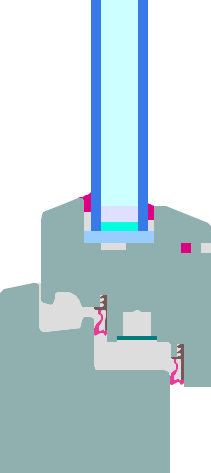

| Bottom | 116 mm | 1,18 W/(m²K) | 0,032 W/(mK) | 0,620 |
| Head | 116 mm | 1,18 W/(m²K) | 0,032 W/(mK) | 0,620 |
| Jamb | 116 mm | 1,18 W/(m²K) | 0,032 W/(mK) | 0,620 |
