Window
GX-120


Component id: 1527wi03
Manufacturer: Harbin Genasen Window Industry Co., Ltd.
Categoria: Operable
Material: Timber / Aluminium
UW: 0,80 W/(m2 K)
Efficiency class: phB
Spacer: SWISSPACER ULTIMATE
Climate zones: Freddo, temperato
Descrizione: Timber frame with insulation (high density EPS 0.048 W/(mK)) and external shell made of PVC and aluminium; Pane thickness: 53 mm (5/19/5/19/5), rebate depth: 15 mm.
Certified since: 06 Marzo 2020
Frame cut Frame width
bf
mm		 Frame U-value
Uf
W/(m2 K)		 Glass edge Ψ-value
Ψg
W/(m K)		 Temperature factor
fRsi = 0.25 m2K/W

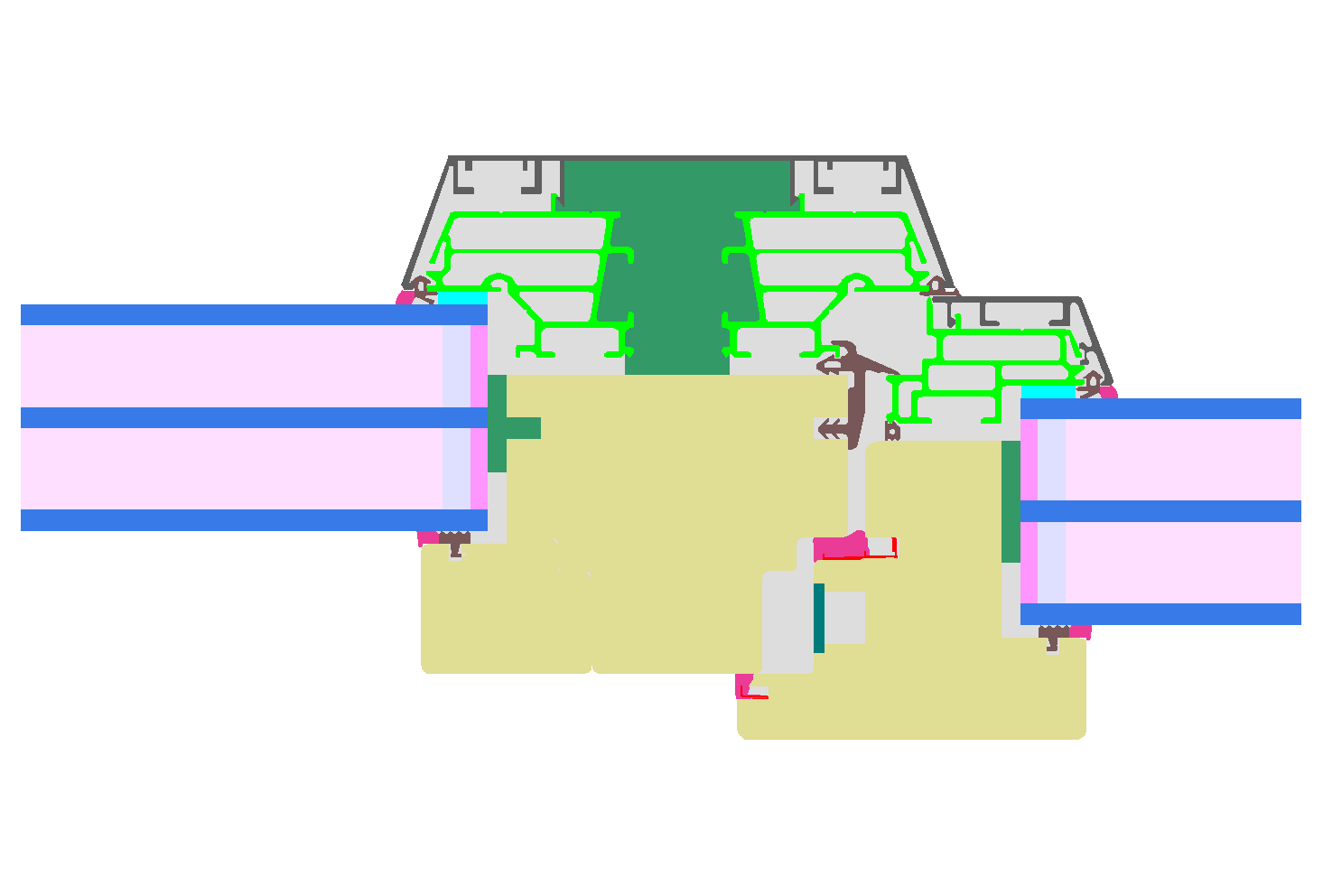

Mullion 1 casement 167 0,74 0,027 0,74
Bottom 128 0,79 0,027 0,75
Top 128 0,79 0,027 0,75
Lateral 128 0,79 0,027 0,75

Please select preferred window layout

Installation situation


UW, installed = ? W/(m2 K)

U-value calculation

 m  m  m
 m
 m
Pick window layout


 W/(m2 K)
UW = ? W/(m2 K)

Cost calculation

Orientation:

Please choose orientation of the window
to get the PHPP-standard values for solar radiation

kKh/a

kWh/(m2a)


Recommended value for reduction factor is 0.9
Shading factor should be between 0.1 and 1. For standard situations see ISO EN 13790

€/kWh
%
Years

€
Present value (energy) = ? €
Present value (total) = ? €
