Schüco Focusing MD
| Certified since | 01 Gennaio 2026 |
| Climate zone | Caldo, temperato |
| Tipo | Window system |
| Sub type | |
| Efficiency class | phC |
| Material | PVC |
| UW | 1,01 W/(m2K) |
| Open type | Inward opening |
| EnerPHit | False |
Descrizione

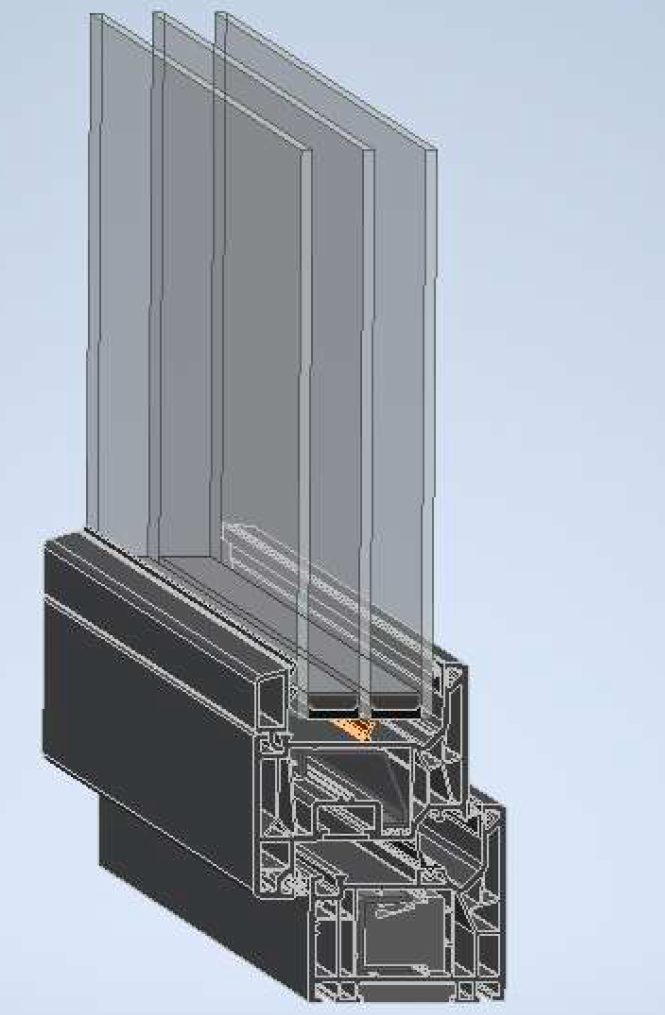

Vinyl frame with steel reinforcement in blind frame and sash; Frame insulated with modified Neopor (0.031 W/(mK)); Sash variants with (2) and without (1) dry bond glazing; Airtightness value of 0.14 m³/(h*m) ensured at a terrace door with flying mullion, 107 cm * 267 cm. Casement windows with sash sizes of 1.2 m * 1.35 m and with coloured profiles 1.2 m * 1.50 m are possible (for dry bond glazing: 1.2 m * 1.92 m and with coloured profiles 1.2 m * 1.83 m). For larger elements, the schueco processing guidelines must be followed. Pane thickness: 48 mm (4/18/4/18/4), rebate depth: OB 20 mm, FB 18 mm mm. Spacer: SWISSPACER Ultimate.
| Nome | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

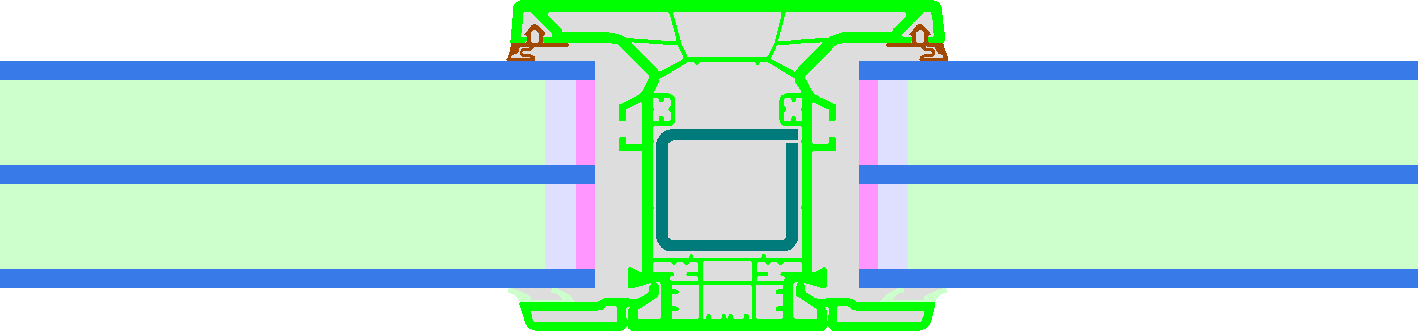

| Mullion Fixed | 92 mm | 1,13 W/(m²K) | 0,027 W/(mK) | 0,69 |
| Transom fixed | 92 mm | 1,13 W/(m²K) | 0,027 W/(mK) | 0,69 |
| Mullion 1 casement | 142 mm | 1,13 W/(m²K) | 0,026 W/(mK) | 0,69 |
| Transom 1 casement | 142 mm | 1,13 W/(m²K) | 0,026 W/(mK) | 0,69 |

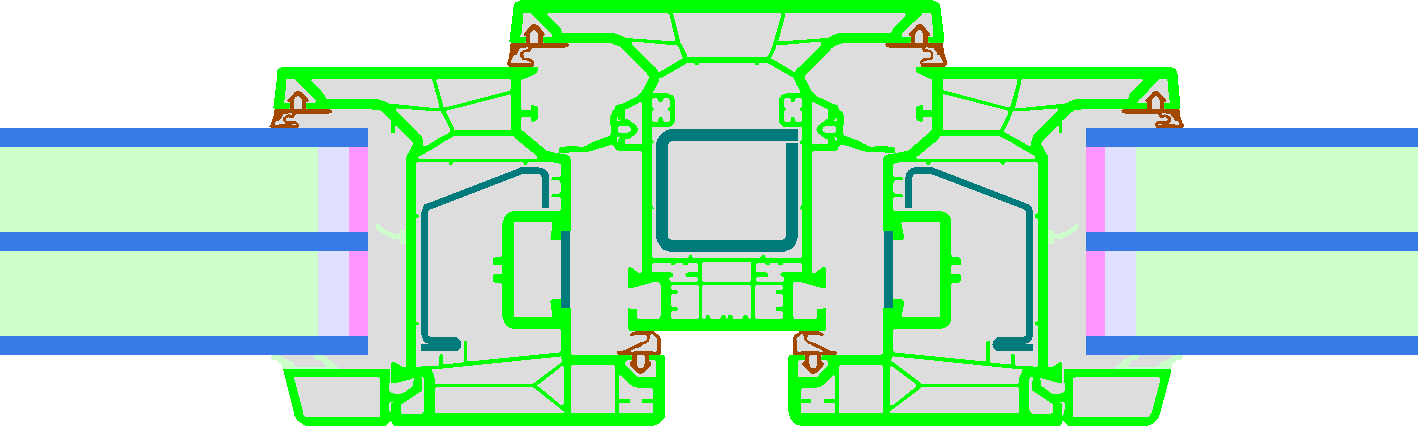

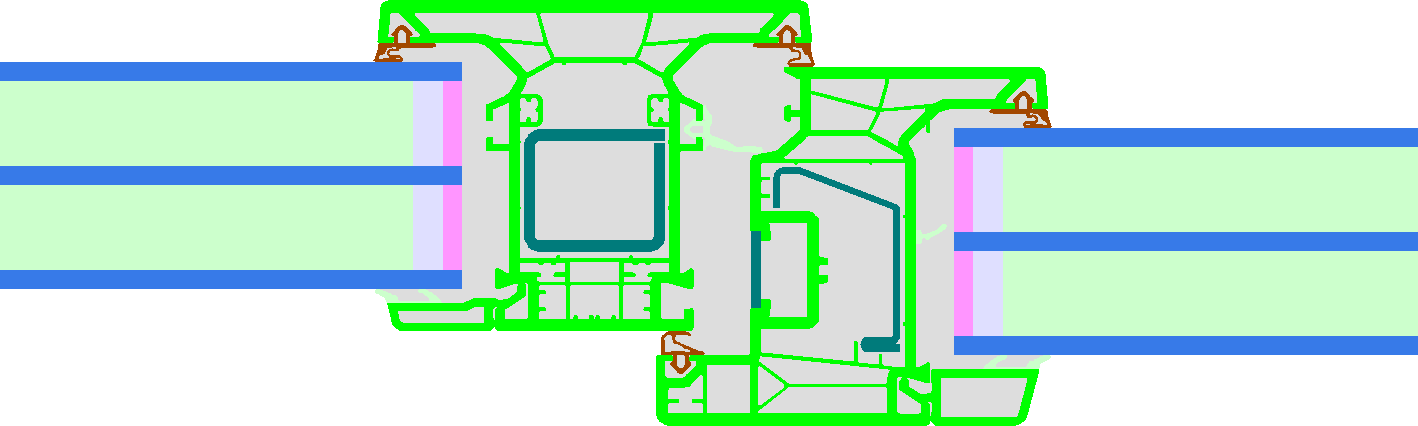

| Mullion 2 casements | 192 mm | 1,13 W/(m²K) | 0,025 W/(mK) | 0,69 |
| Transom 2 casements | 192 mm | 1,13 W/(m²K) | 0,025 W/(mK) | 0,69 |

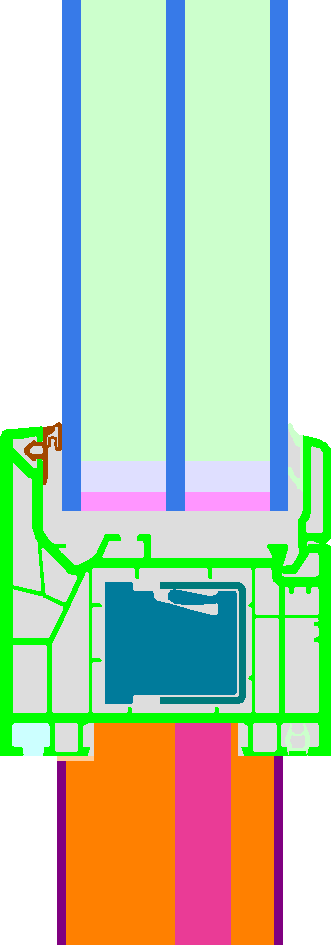

| Bottom Fixed | 110 mm | 0,90 W/(m²K) | 0,027 W/(mK) | 0,71 |

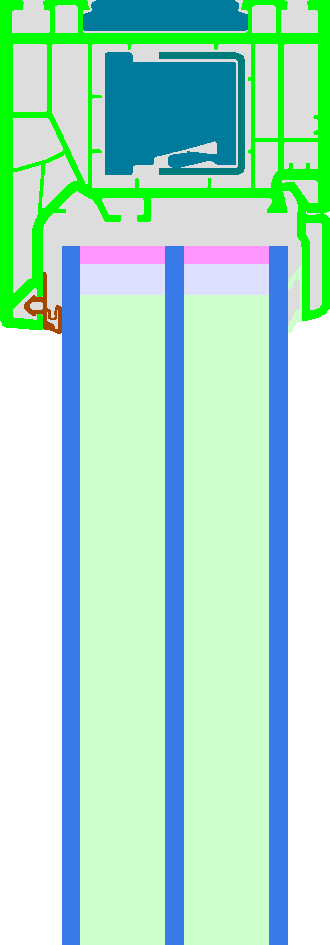

| Top fixed | 70 mm | 0,96 W/(m²K) | 0,027 W/(mK) | 0,71 |

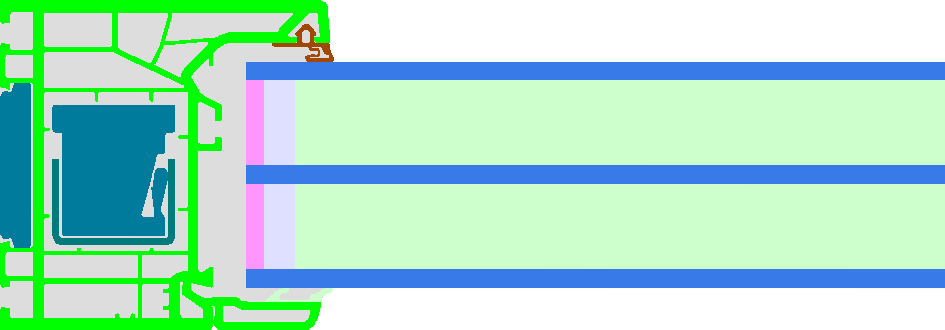

| Jamb fixed | 70 mm | 0,96 W/(m²K) | 0,027 W/(mK) | 0,71 |

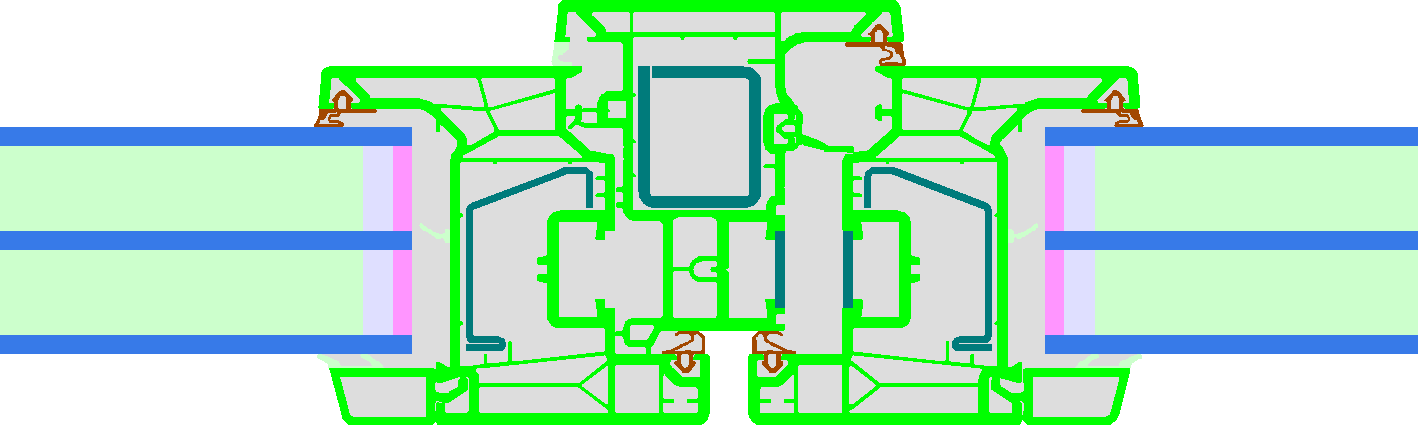

| Flying Mullion | 174 mm | 1,18 W/(m²K) | 0,025 W/(mK) | 0,65 |

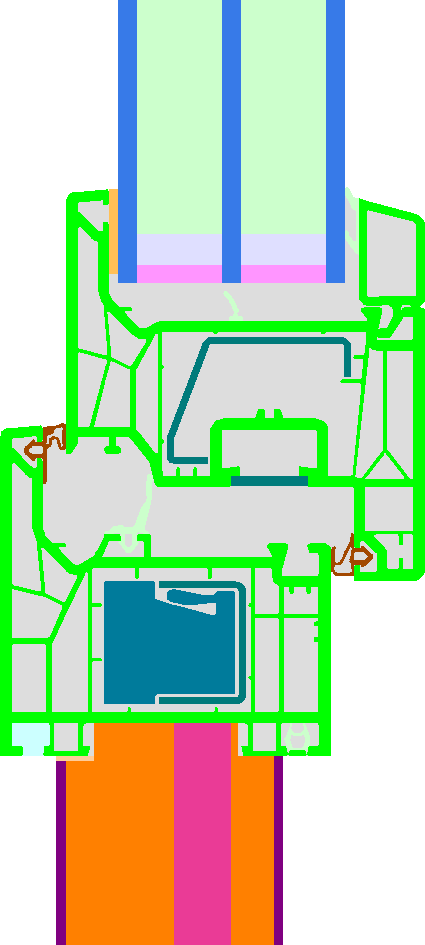

| Bottom | 160 mm | 0,98 W/(m²K) | 0,024 W/(mK) | 0,70 |
| Bottom | 160 mm | 0,99 W/(m²K) | 0,024 W/(mK) | 0,70 |

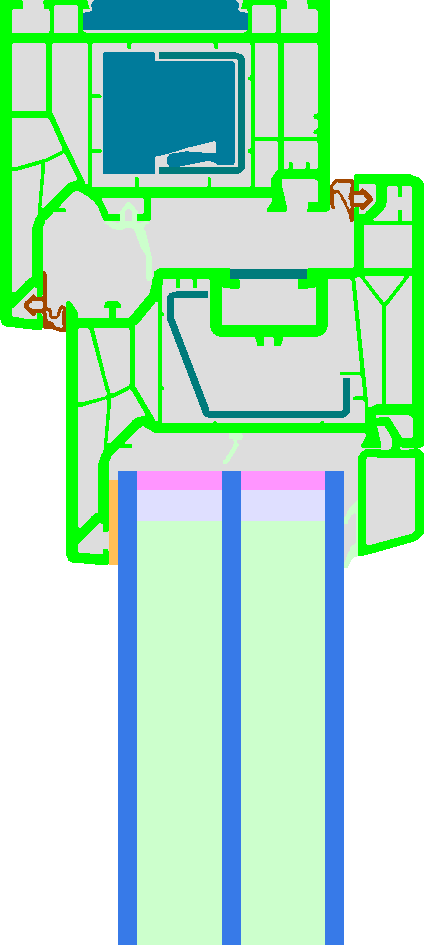

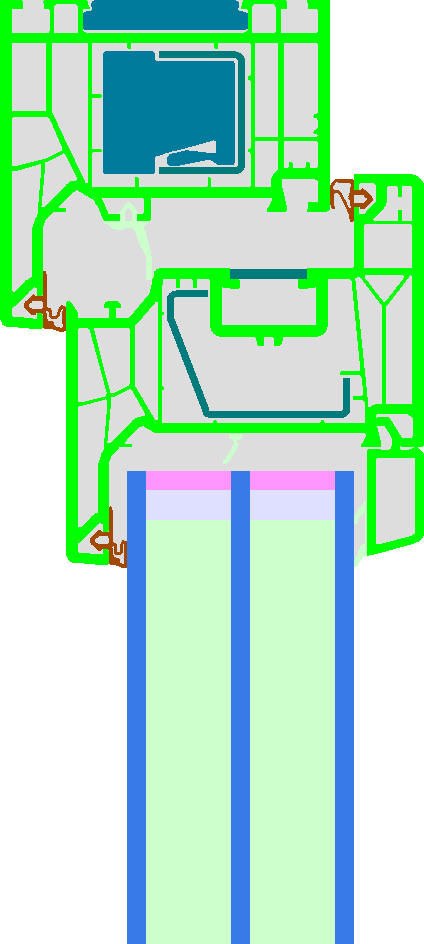

| Head | 120 mm | 1,04 W/(m²K) | 0,024 W/(mK) | 0,70 |
| Head | 120 mm | 1,05 W/(m²K) | 0,024 W/(mK) | 0,70 |

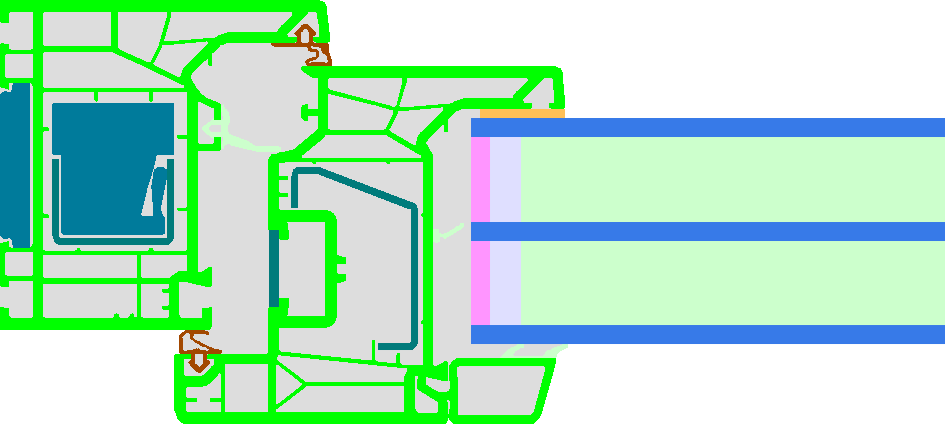

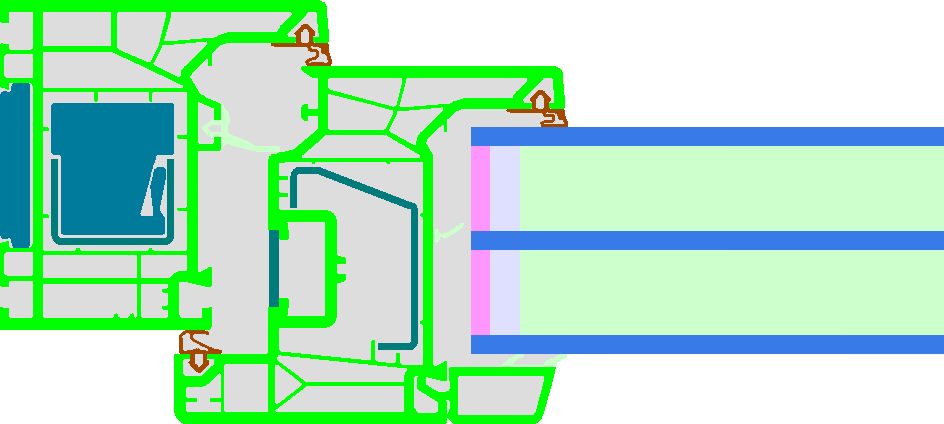

| Jamb | 120 mm | 1,04 W/(m²K) | 0,024 W/(mK) | 0,70 |
| Jamb | 120 mm | 1,05 W/(m²K) | 0,024 W/(mK) | 0,70 |

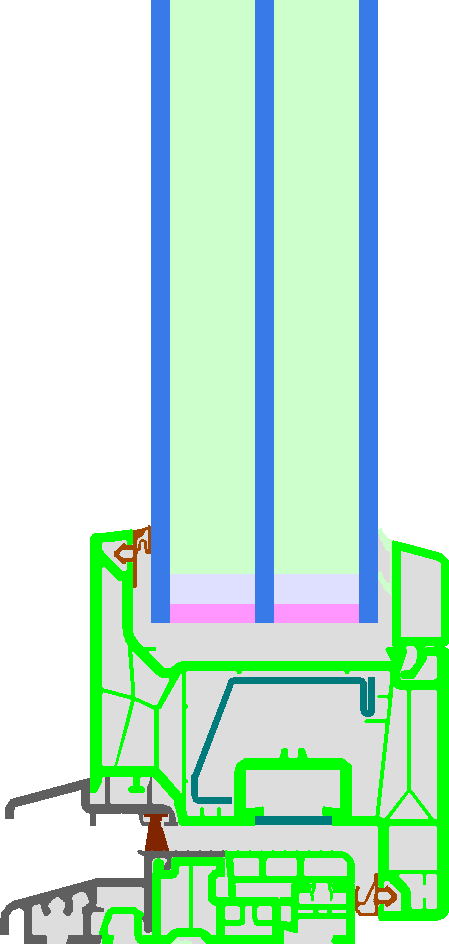

| Threshold | 88 mm | 1,67 W/(m²K) | 0,025 W/(mK) | 0,59 |

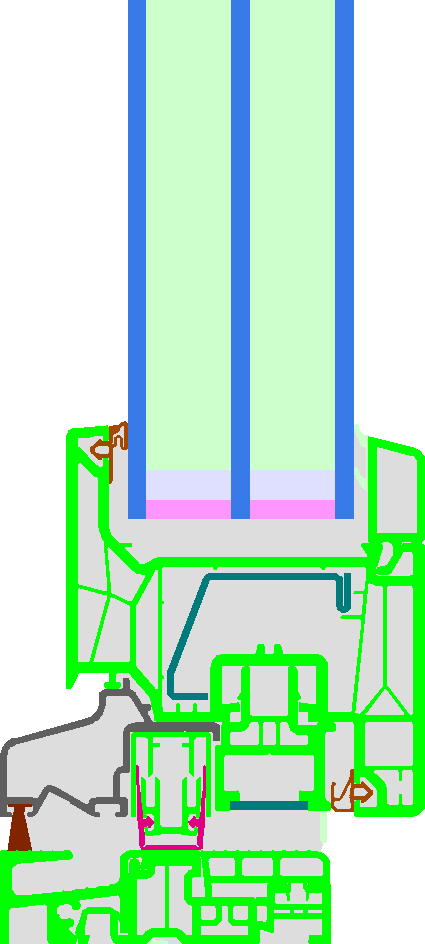

| Threshold | 110 mm | 1,64 W/(m²K) | 0,026 W/(mK) | 0,56 |
