BST 101 Passive window
| Certified since | 22 Gennaio 2021 |
| Climate zone | Freddo, temperato |
| Window Type | Operable |
| Efficiency Class | phC |
| Material | Aluminium |
| UW | 0,78 W/(m2K) |
Descrizione

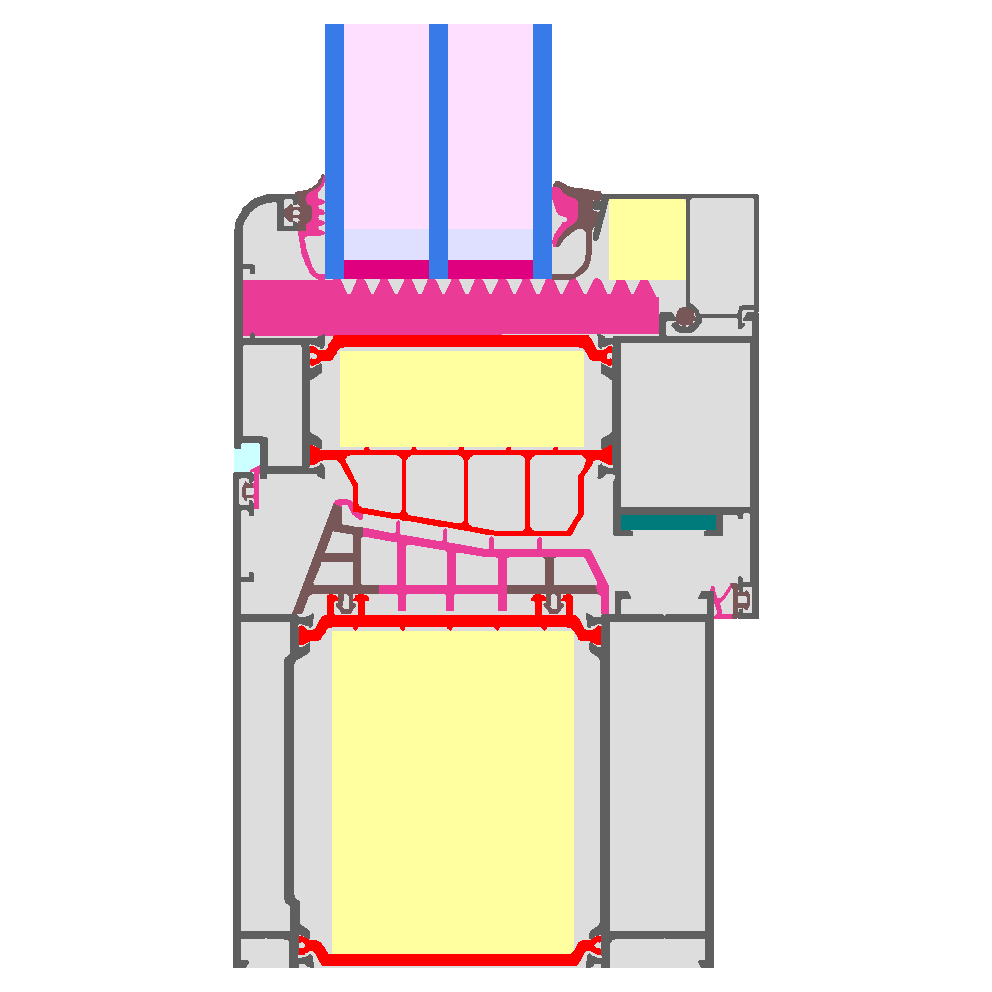

Aluminium frame with thermal separation (PA 0.30 W/(mK)) and insulation (Kingspan kooltherm 0.022 W/(mK)); Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 18 mm. Spacer: TGI-Spacer Precision with silicone secondary seal.
| Nome | Frame width | U-Value | Ψ-Value | Frsi-Value |
|---|---|---|---|---|

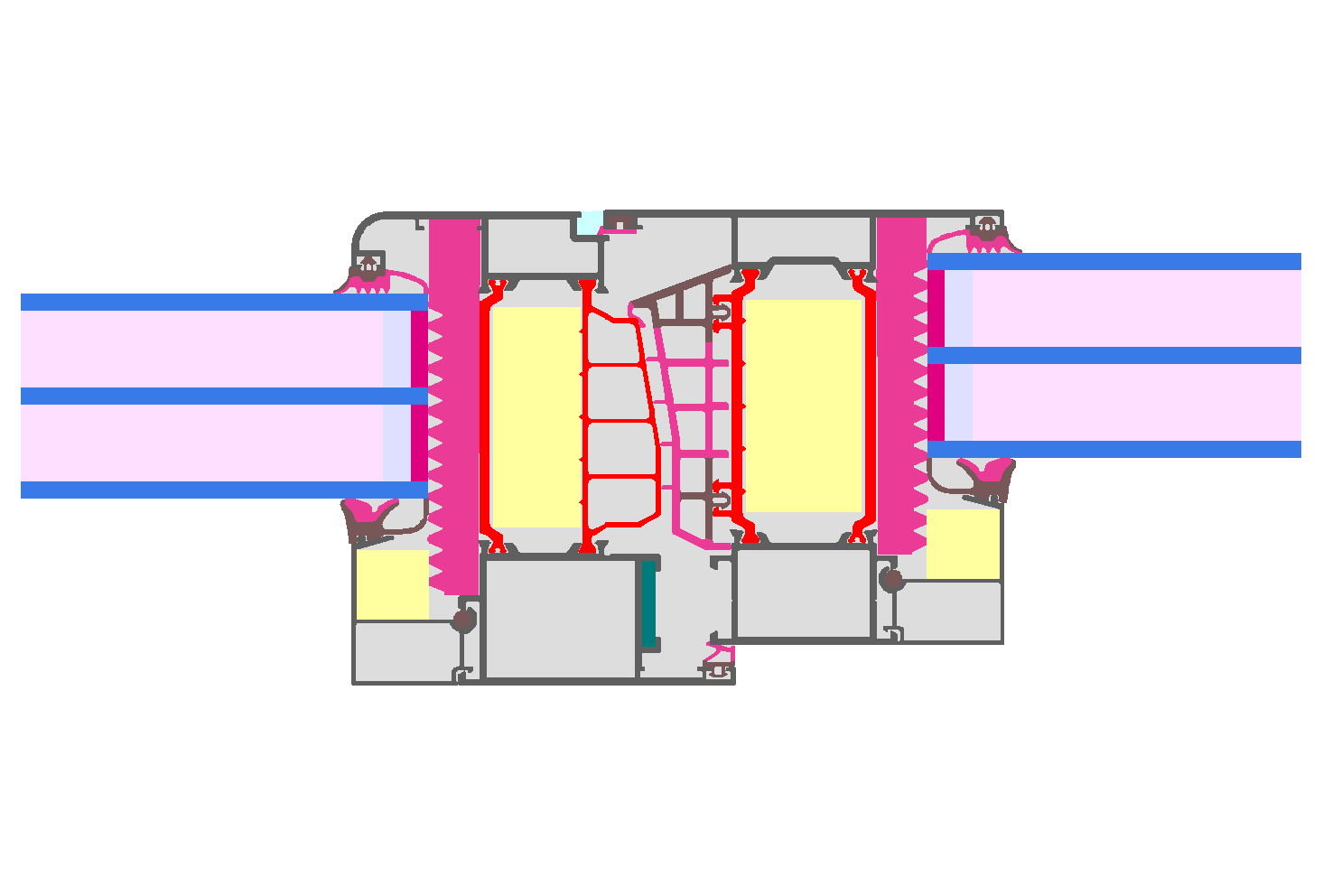

| Mullion 1 casement | 153 mm | 0,85 W/(m²K) | 0,025 W/(mK) | 0,750 |
| Bottom | 164 mm | 0,76 W/(m²K) | 0,025 W/(mK) | 0,760 |
| Top | 164 mm | 0,76 W/(m²K) | 0,025 W/(mK) | 0,760 |
| Lateral | 164 mm | 0,76 W/(m²K) | 0,025 W/(mK) | 0,760 |
