2410wi03 WINCHE Systemwindow 90MD: (Operable)

WINCHE Systemwindow 90MD

Certified since	03 Febbraio 2025
Climate zone	Freddo, temperato
Tipo	Operable
Sub type
Efficiency class	phB
Material	PVC
`U`_W	0,80 W/(m²K)
Open type	Inward opening

Descrizione

PVC frame with thermally broken steel reinforcement and EPS insulation (0.035 W/(mK)). Max. size 1.30 m x 1.70 m (dark grey surface finish). Pane thickness: 49 mm (4/18/4/18/5), rebate depth: 18 mm.

Nome	Frame width	U-value	Ψ-value	Frsi-value

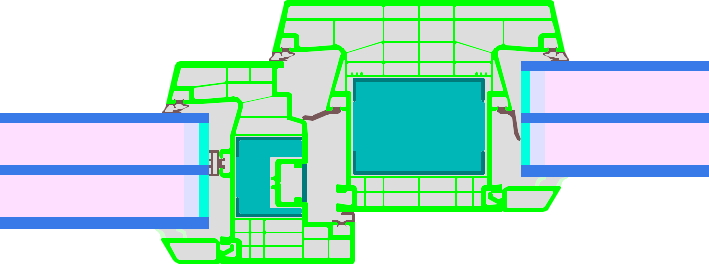

Flying Mullion	171 mm	0,79 W/(m²K)	0,022 W/(mK)	0,741

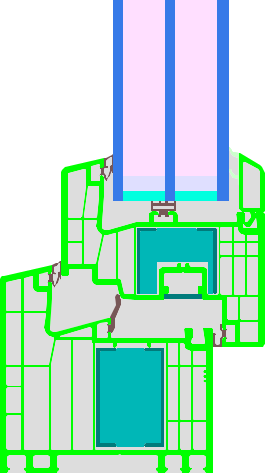

Bottom	135 mm	0,83 W/(m²K)	0,022 W/(mK)	0,746
Head	135 mm	0,83 W/(m²K)	0,022 W/(mK)	0,746
Jamb	135 mm	0,83 W/(m²K)	0,022 W/(mK)	0,746

Component ID

2410wi03

Export

PHPP 9

PHPP 10

Certificato

English

Deutsch

Manufacturer

WINCHE

Indirizzo

Sancheok-Myeon Segogearo 242
Chungcheongbuk-Do, Chungju-Si
27315 Chungju
Korea, Republic of

Telefono

+82 43 840 1600

Email

leo@winche.co.kr

Sito web

http://www.winche.co.kr
