Schüco Focusing MD
| Certified since | 1 stycznia 2026 |
| Strefa klimatyczna | Warm, temperate |
| Typ | Window system |
| Sub type | |
| Klasa efektywności | phC |
| Materiał | PVC |
| UW | 1,01 W/(m2K) |
| Typ otwarty | Otwarcie do wewnątrz |
Opis

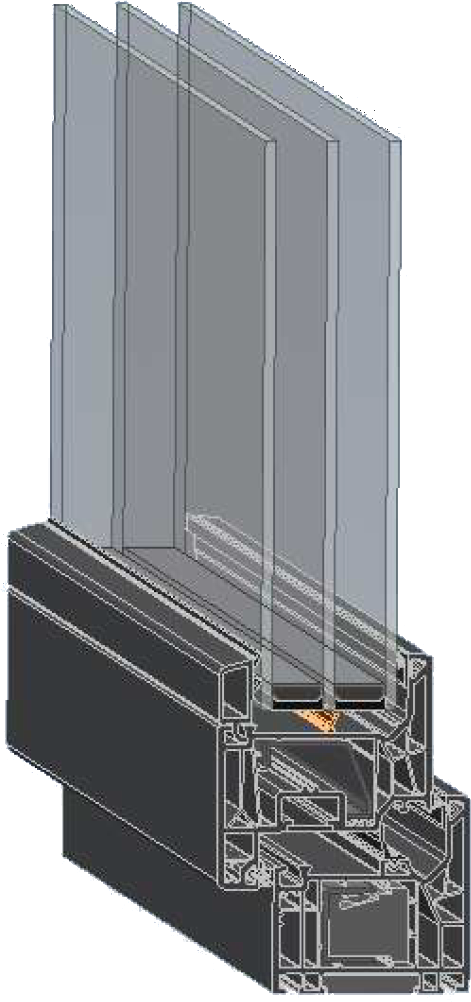

Vinyl frame with steel reinforcement in blind frame and sash; Frame insulated with modified Neopor (0.031 W/(mK)); Sash variants with (2) and without (1) dry bond glazing; Airtightness value of 0.14 m³/(h*m) ensured at a terrace door with flying mullion, 107 cm * 267 cm. Casement windows with sash sizes of 1.2 m * 1.35 m and with coloured profiles 1.2 m * 1.50 m are possible (for dry bond glazing: 1.2 m * 1.92 m and with coloured profiles 1.2 m * 1.83 m). For larger elements, the schueco processing guidelines must be followed. Pane thickness: 48 mm (4/18/4/18/4), rebate depth: OB 20 mm, FB 18 mm mm. Spacer: SWISSPACER Ultimate.
| Nazwa | Szerokość ramy | Współczynnik U | Ψ-value | Frsi-value |
|---|---|---|---|---|
| Szpros stały | 92 mm | 1,13 W/(m²K) | 0,027 W/(mK) | 0,69 |
| Stała pawęż | 92 mm | 1,13 W/(m²K) | 0,027 W/(mK) | 0,69 |
| Szpros 1 skrzydło | 142 mm | 1,13 W/(m²K) | 0,026 W/(mK) | 0,69 |
| Rygiel 1 skrzydło | 142 mm | 1,13 W/(m²K) | 0,026 W/(mK) | 0,69 |
| Szpros 2 skrzydła | 192 mm | 1,13 W/(m²K) | 0,025 W/(mK) | 0,69 |
| Rygiel 2 skrzydła | 192 mm | 1,13 W/(m²K) | 0,025 W/(mK) | 0,69 |
| Dół stała | 110 mm | 0,90 W/(m²K) | 0,027 W/(mK) | 0,71 |
| Górna Ustalone | 70 mm | 0,96 W/(m²K) | 0,027 W/(mK) | 0,71 |
| Boczna stała | 70 mm | 0,96 W/(m²K) | 0,027 W/(mK) | 0,71 |
| Otwierany szpros | 174 mm | 1,18 W/(m²K) | 0,025 W/(mK) | 0,65 |
| Dół | 160 mm | 0,98 W/(m²K) | 0,024 W/(mK) | 0,70 |
| Dół | 160 mm | 0,99 W/(m²K) | 0,024 W/(mK) | 0,70 |
| Góra | 120 mm | 1,04 W/(m²K) | 0,024 W/(mK) | 0,70 |
| Góra | 120 mm | 1,05 W/(m²K) | 0,024 W/(mK) | 0,70 |
| BOCZNY | 120 mm | 1,04 W/(m²K) | 0,024 W/(mK) | 0,70 |
| BOCZNY | 120 mm | 1,05 W/(m²K) | 0,024 W/(mK) | 0,70 |
| Próg | 88 mm | 1,67 W/(m²K) | 0,025 W/(mK) | 0,59 |
| Próg | 110 mm | 1,64 W/(m²K) | 0,026 W/(mK) | 0,56 |
