Wandaoriver 110 TOP

Informacja U-value calculation

Compare all

Wandaoriver 110 TOP

Certified since	20 czerwca 2025
Strefa klimatyczna	Cool, temperate
Typ	Operacyjna
Sub type
Klasa efektywności	phC
Materiał	Aluminium
`U`_W	0,80 W/(m²K)
Typ otwarty	Otwarcie do wewnątrz

Opis

Aluminum window frame with bars made of low lambda PA (0.21 W/(mK), polyurethane rigid foam insulation (0.024 W/(mK) and polyethylene foam in the glazing rebate. Pane thickness: 49 mm (5/17/5/17/5), rebate depth: 12 mm.

Nazwa	Szerokość ramy	Współczynnik U	Ψ-value	Frsi-value

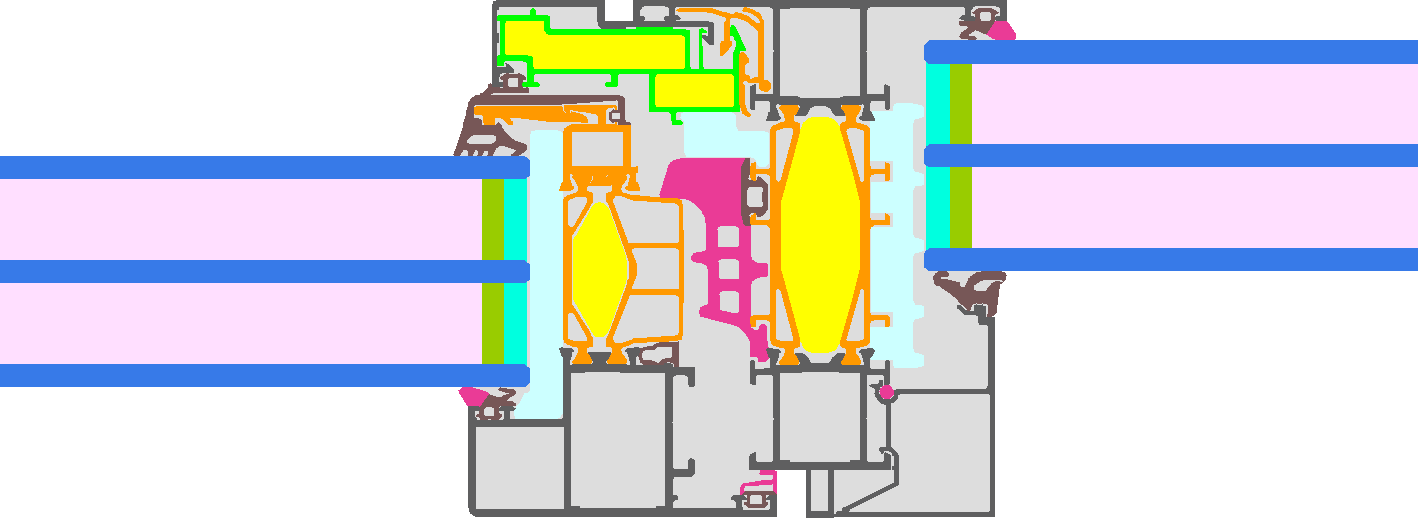

Otwierany szpros	112 mm	1,03 W/(m²K)	0,028 W/(mK)	0,750

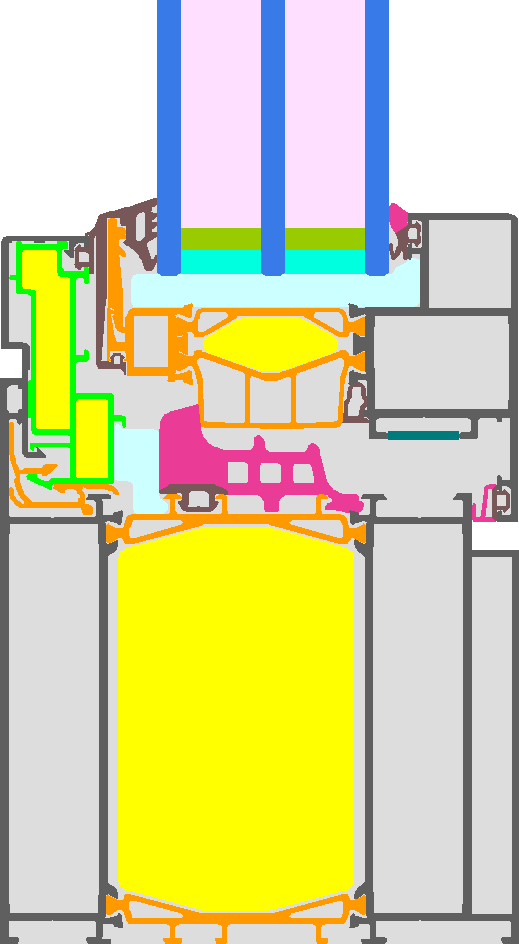

Dół	155 mm	0,80 W/(m²K)	0,028 W/(mK)	0,790
Góra	155 mm	0,80 W/(m²K)	0,028 W/(mK)	0,790
BOCZNY	155 mm	0,80 W/(m²K)	0,028 W/(mK)	0,790

Identyfikator komponentu

2472wi03

Export

PHPP 9

PHPP 10

Certyfikat

English

Deutsch

简体中文

Producent

WANDAO RIVER Technology (Shenyang) Co., Ltd.

Address

No. 394-2, Northeast Daming Road, Dadong District
Room 1-7-22
Liaoning Province Shenyang
China

Phone

+86 13840225532

Adres e-mail

13840225532@qq.com
