2445ed03 Blue Diamond ENTRY by UNIKAT: Door
2445ed03 Blue Diamond ENTRY by UNIKAT: Door
2445ed03 Blue Diamond ENTRY by UNIKAT: Door: DJ1
2445ed03 Blue Diamond ENTRY by UNIKAT: Door: DL1
2445ed03 Blue Diamond ENTRY by UNIKAT: Door: OH1
2445ed03 Blue Diamond ENTRY by UNIKAT: Door: OT2
Blue Diamond ENTRY by UNIKAT
| Certified since | 1 апреля 2025 г. |
| Climate zone | Прохладный, умеренный |
| Surface material | Aluminium |
| Door type | Door |
| How to open | Inside |
| UW | 0,68 W/(m2K) |
Описание
Door made of aluminium, thermally separated with glass fibre-reinforced plastic (25% glass fibre, 0,30 W/(mK)), insulated with Kooltherm phenolic foam (0,022 W/(mK)) and polyethylene foam (0,038 W/(mK)). Door leaf insulation: EPS (0,035 W/(mK)). Threshold: glass fibre-reinforced plastic (25% glass fibre, 0,30 W/(mK)). The door meets airtightness class 3 according to DIN EN 12207:2017-03.
| Имя | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

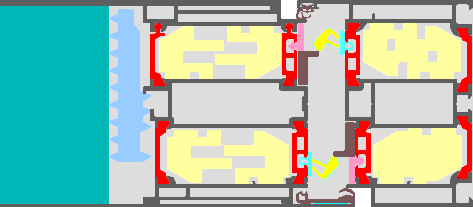

| Door hinge side | 158 mm | 1,14 W/(m²K) | 0,005 W/(mK) | 0,780 |

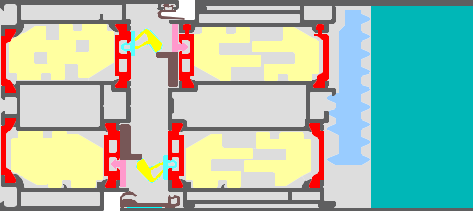

| Door lock side | 158 mm | 1,15 W/(m²K) | 0,005 W/(mK) | 0,780 |

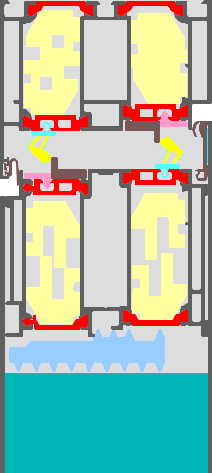

| Head | 158 mm | 1,14 W/(m²K) | 0,005 W/(mK) | 0,770 |

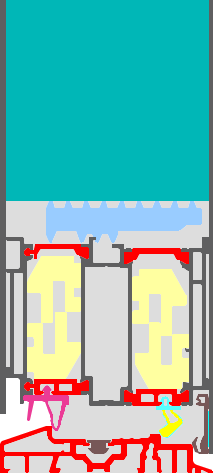

| Threshold | 115 mm | 1,16 W/(m²K) | 0,004 W/(mK) | 0,800 |
