Window
TA35 SE IN


Image of 0944wi03: Operable
Component id: 0944wi03
Manufacturer: batimet GmbH
Категория: Operable
Material: Timber / Aluminium
UW: 0,76 W/(m2 K)
Efficiency class: phB
Spacer: SWISSPACER Ultimate
Climate zones: Прохладный, умеренный
Описание: Aluminium cladded timber frame (spruce/fir 0.11 W/(mK)), insulated by EPS- foam (0.031 W/(mK)) and resolic foam (0.022 W/(mK)). Pane thickness: 54 mm (6/18/6/18/6), rebate depth: 16 mm, spacer: SWISSPACER Ultimate.
Certified since: 8 июля 2016 г.

Frame cut Frame width
bf
mm
Frame U-value
Uf
W/(m2 K)
Glass edge Ψ-value
Ψg
W/(m K)
Temperature factor
fRsi = 0.25 m2K/W

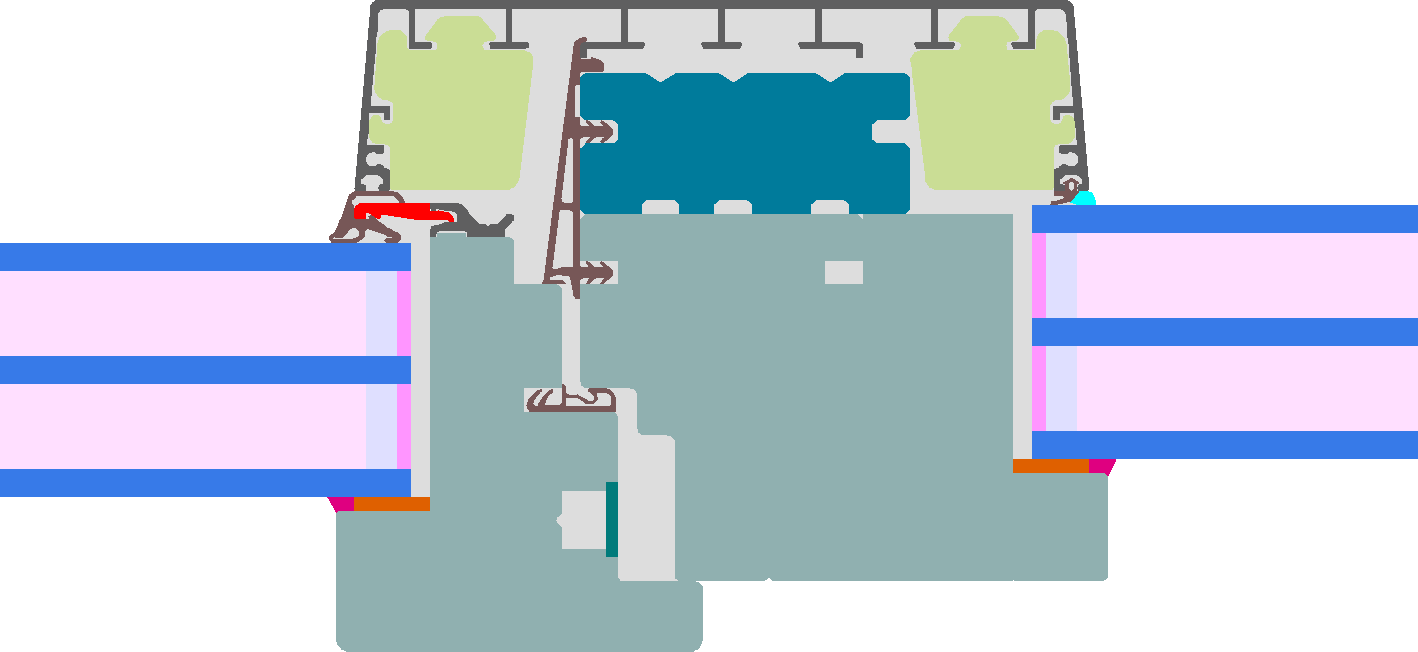

Mullion 1 casement 164 0,76 0,027 0,74

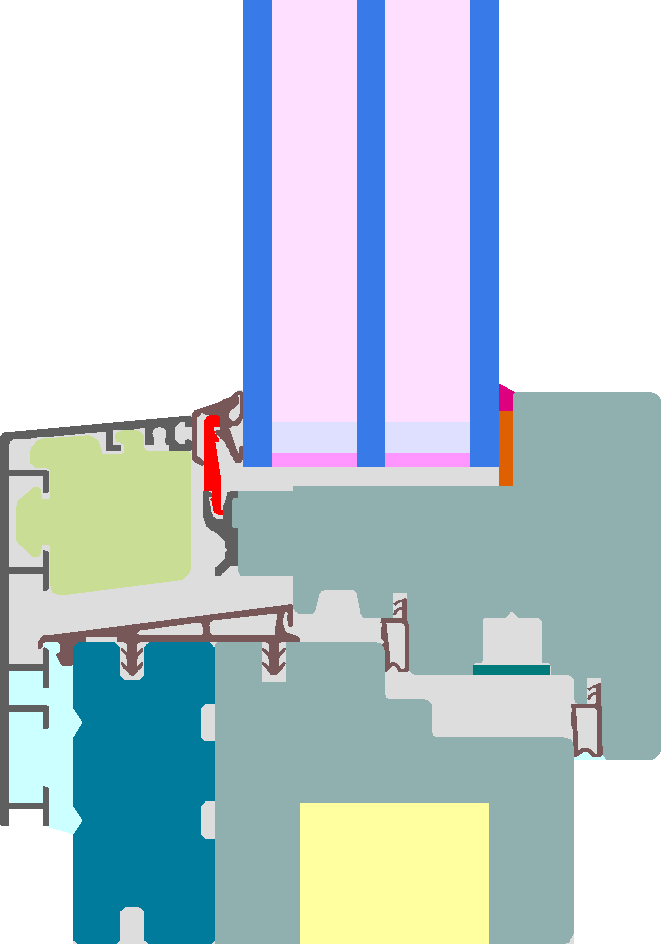

Bottom 117 0,68 0,026 0,74

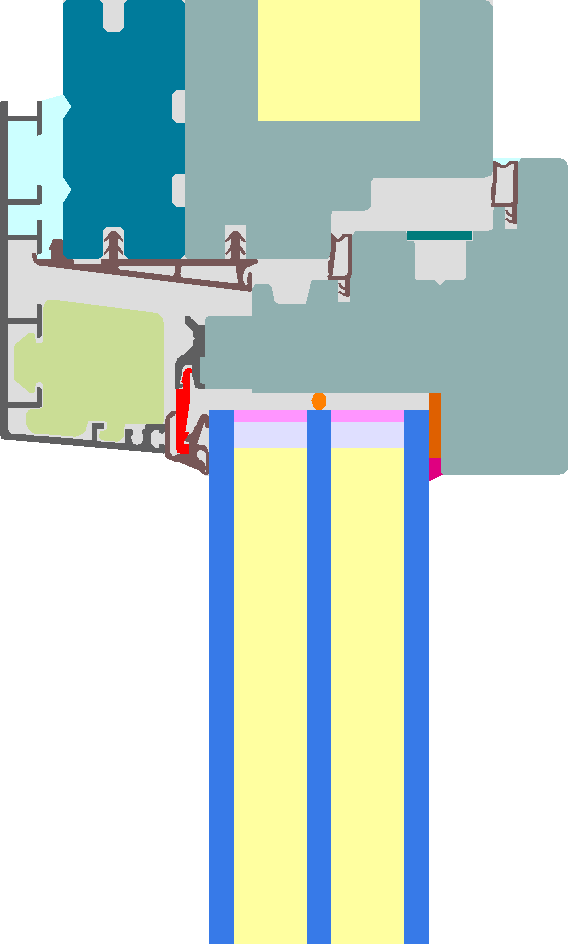

Top 117 0,68 0,026 0,74

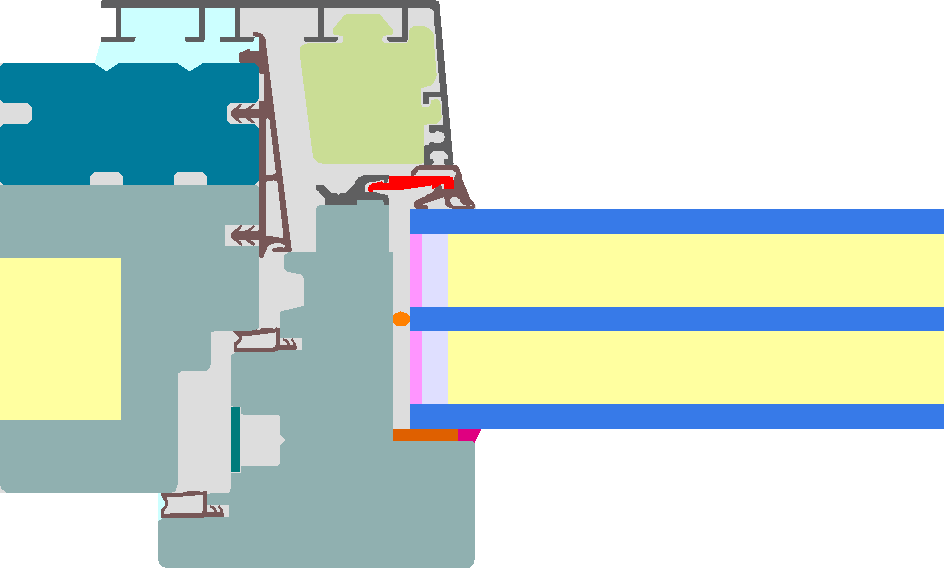

Lateral 117 0,68 0,026 0,74

Please select preferred window layout

Installation situation



UW, installed = ? W/(m2 K)

U-value calculation

 m  m  m
 m
 m
Pick window layout


 W/(m2 K)
UW = ? W/(m2 K)

Cost calculation

Orientation:

Please choose orientation of the window
to get the PHPP-standard values for solar radiation


kKh/a

kWh/(m2a)



Recommended value for reduction factor is 0.9
Shading factor should be between 0.1 and 1. For standard situations see ISO EN 13790

€/kWh

%

Years

Present value (energy) = ? €
Present value (total) = ? €
