TA35 SE IN CC

Certified since 13 июля 2016 г.
Climate zone Холодный
Тип Connection
Sub Type
Efficiency Class phA
Material Timber / Aluminium
UW 0,62 W/(m2K)
Open type

Описание

Aluminium cladded timber frame (spruce/fir 0.11 W/(mK)), insulated by EPS- foam (0.031 W/(mK)) and resolic foam (0.022 W/(mK)). Pane thickness: 54 mm (6/18/6/18/6), rebate depth: 18 mm, spacer: SWISSPACER Ultimate.

Имя Frame width U-Value Ψ-Value Frsi-Value

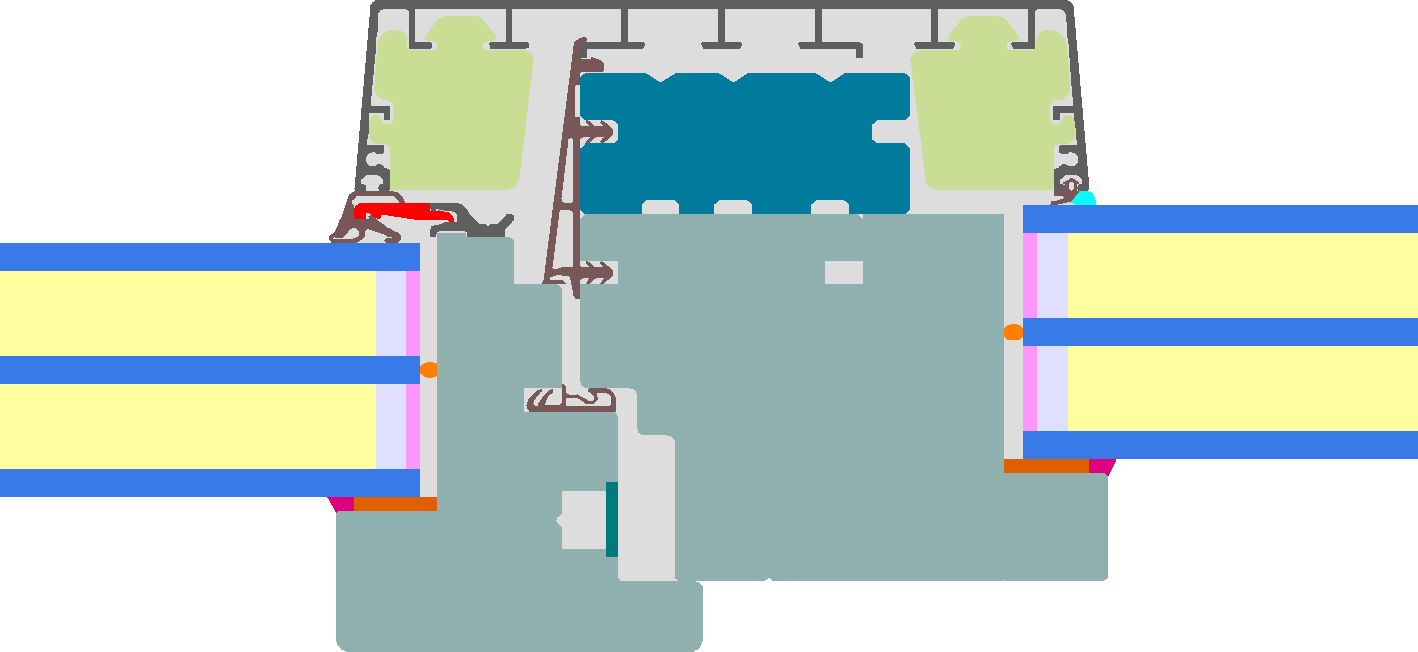

Mullion 1 casement 164 mm 0,72 W/(m²K) 0,028 W/(mK) 0,770

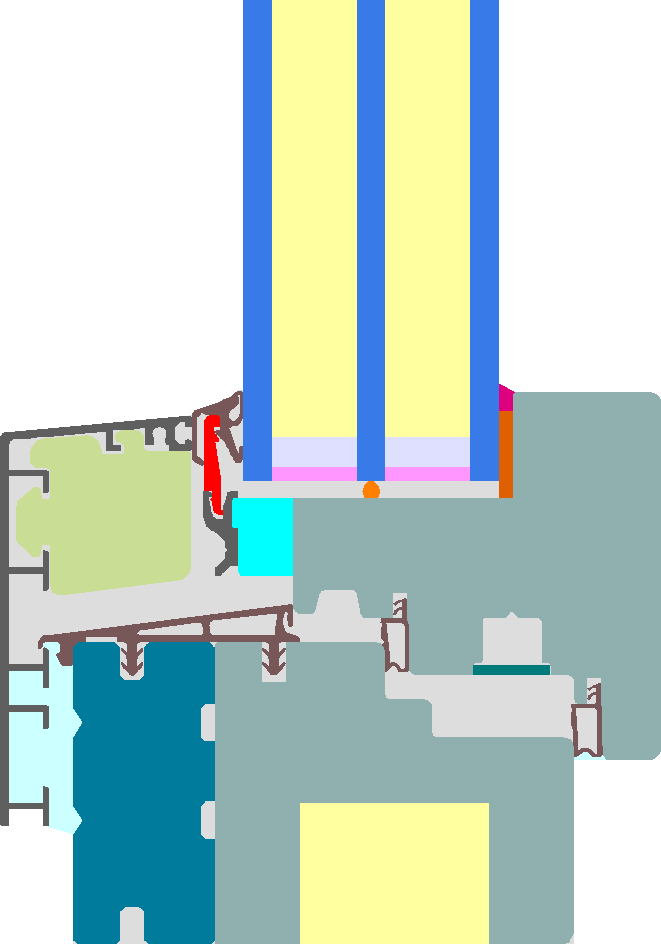

Bottom 117 mm 0,64 W/(m²K) 0,026 W/(mK) 0,770

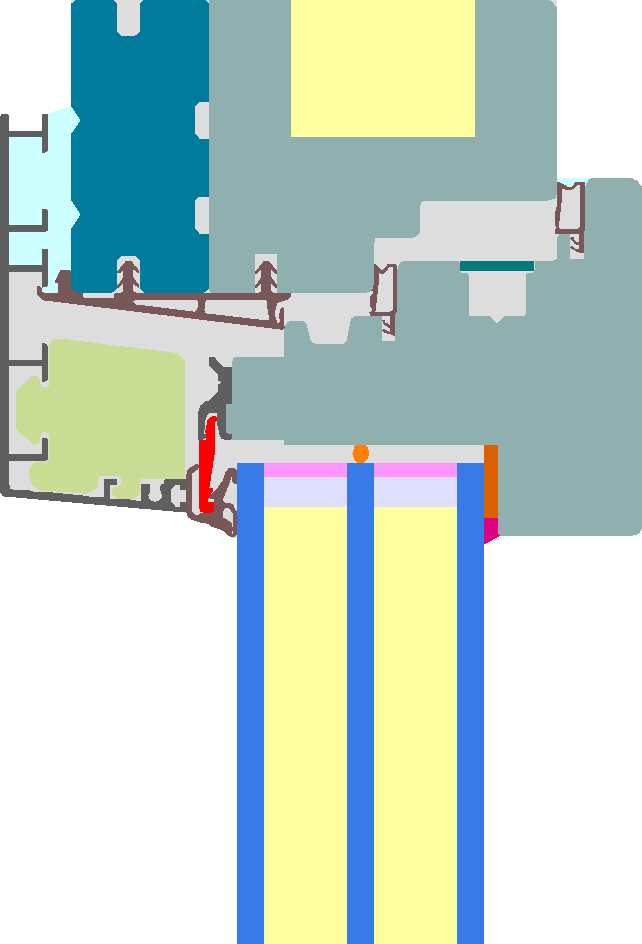

Top 117 mm 0,65 W/(m²K) 0,026 W/(mK) 0,770

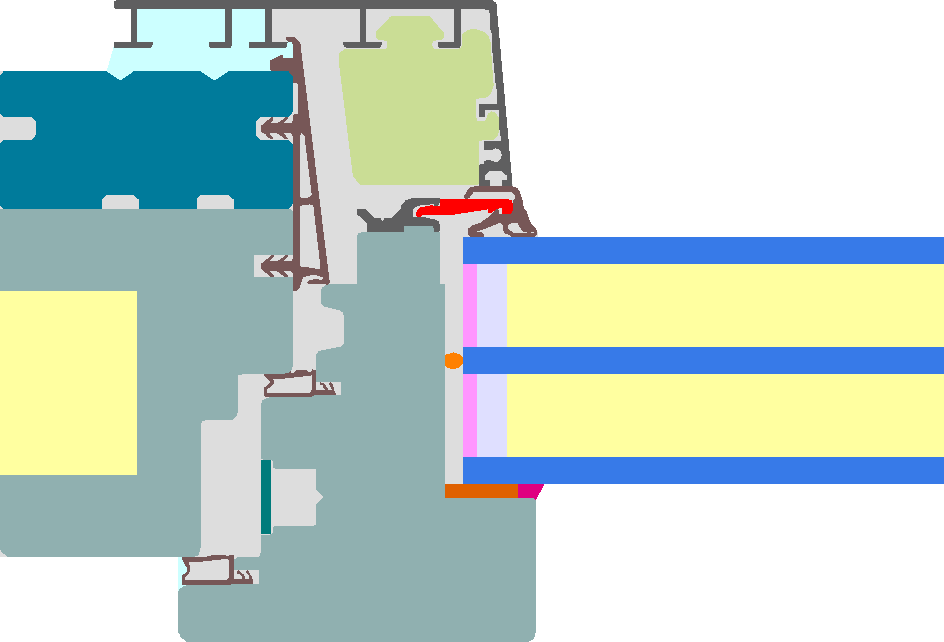

Lateral 117 mm 0,64 W/(m²K) 0,026 W/(mK) 0,770
0946wc02
PHPP 9
PHPP 10
English
Deutsch

batimet GmbH

Enderstrasse 90
01277 Dresden
Germany
