Name: HHGR120W
Brand: Qingdao Honghai curtain wall systems co., ltd

Component id:	1183wi03
Manufacturer:	Qingdao Honghai curtain wall systems co., ltd
Категория:	Operable
Material:	Aluminium
`U`_W:	0,77 W/(m² K)
Efficiency class:	phB
Spacer:	TGI-Spacer Precision
Climate zones:	Прохладный, умеренный
Описание:	Thermally seperated aluminium frame with insulation (0.023 W/(mK)) and internal timber shell; Pane thickness: 51 mm (5/18/5/18/5), rebate depth: 17 mm, spacer: TGI Precision with polyurethane as secondary seal
Certified since:	21 февраля 2018 г.

Download certificate:

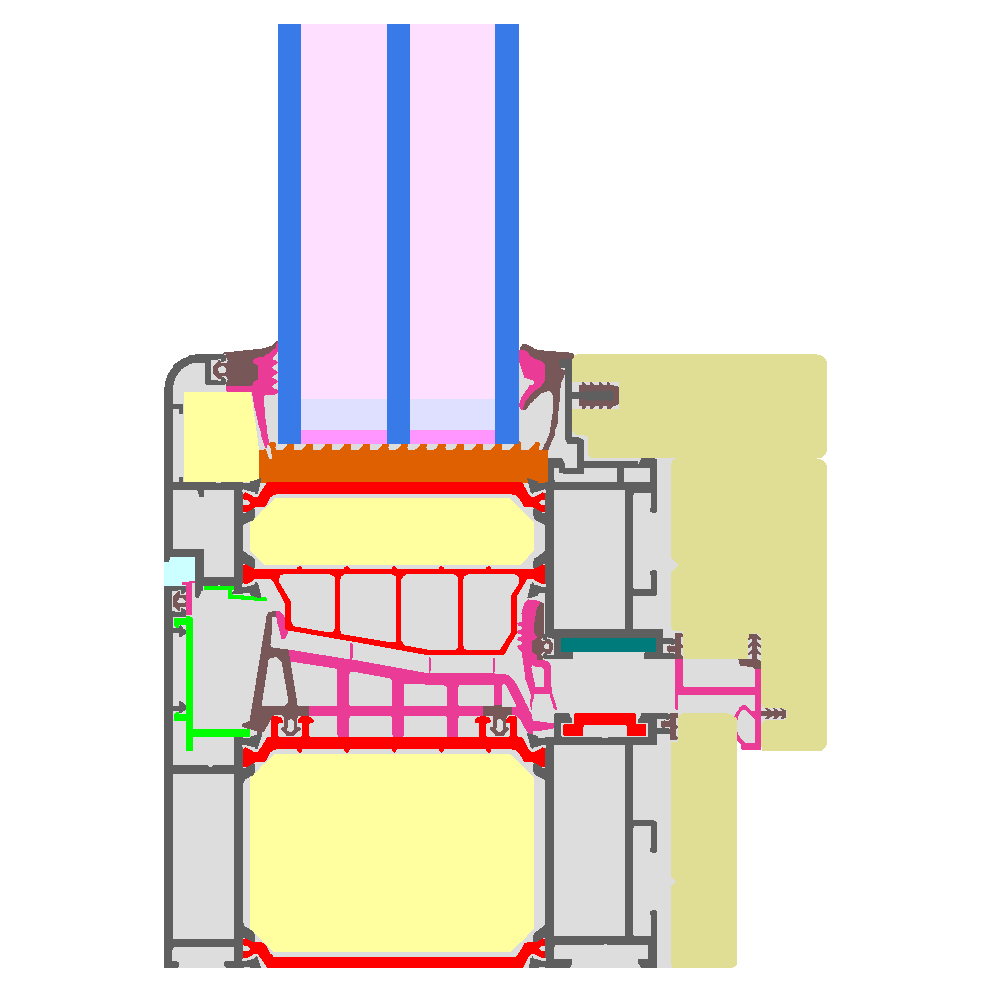

Frame cut	Frame width `b`_f mm	Frame `U`-value `U`_f W/(m² K)	Glass edge `Ψ`-value `Ψ`_g W/(m K)	Temperature factor `f`_{Rsi = 0.25 m²K/W}
Mullion 1 casement	149	0,77	0,023	0,74
Bottom	130	0,74	0,022	0,74
Top	130	0,74	0,022	0,74
Lateral	130	0,74	0,022	0,74

Installation situation
I want to use my own installation values
Ψ_up= W/(mK) Ψ_down= W/(mK)	Ψ_left= W/(mK) Ψ_right= W/(mK)
Or select certified situation:	`U`_{W, installed} = ? W/(m² K)

b₁ =  m b₂ =  m b₃ =  m

`h_top` =		m
`h_bottom` =		m

Glazing

`U`_g		W/(m² K)
G-value

U_W = ? W/(m² K)

Cost calculation
Orientation:	Please choose orientation of the window to get the PHPP-standard values for solar radiation
Degree days: kKh/a Solar radiation: kWh/(m²a)	Reduction factor of solar yield: Shading factor:	Recommended value for reduction factor is 0.9 Shading factor should be between 0.1 and 1. For standard situations see ISO EN 13790
Energy price €/kWh	Real interest rate %	Lifetime Years
Purchase price: €
	Present value (energy) = ? € Present value (total) = ? €
