| 组件id: | 1536fx02 |
|---|---|
| 制造商: | Harbin Sayyas Windows Stock Co. Ltd. |
| 类别: | 固定 |
| 材料: | GFRP |
| UW: | 0.60 W/(m2 K) |
| 能效阶级: | phA |
| 空间: | MULTITECH G |
| 气候区: | 密码 |

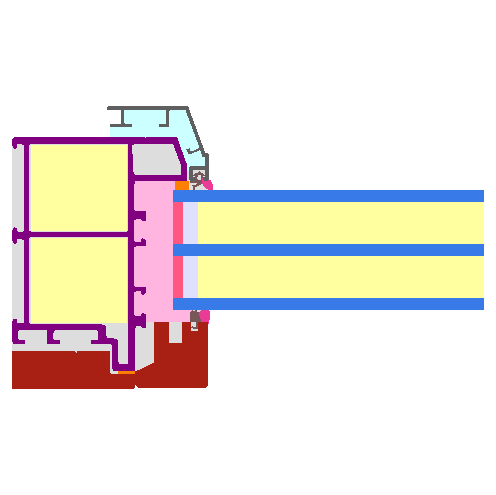

| 描述: | GFRP-Frame for fixed glazing with interior hard wood application and exterior aluminium cladding. Insulated by phenolic foam, 0.022 W/(mK). GFRP with PU resin, 2200 kg/m³, 0.34 W/(mK) (preliminary value to be validated). Pane thickness: 51 mm (5/18/5/18/5), rebate depth: 15 mm. Spacer: Multitech G with DOWSIL 3363 Warm Edge silicone secondary seal. |
| Certified since: | 2020年3月11日 |
| 边宽缩减 | 边宽高度 bf mm |
Frame U-value Uf W/(m2 K) |
Glass edge Ψ-value Ψg W/(m K) |
温度因素 fRsi = 0.25 m2K/W |
|---|---|---|---|---|
| 立柱固定 | 96 | 0.64 | 0.021 | 0.78 |
| 下横框固定 | 83 | 0.60 | 0.021 | 0.78 |
| 上横框固定 | 83 | 0.61 | 0.021 | 0.78 |
| 侧柱 | 83 | 0.61 | 0.021 | 0.78 |
