| 组件id: | 1768wi03 |
|---|---|
| 制造商: | Shandong Qiaoju Doors and Windows Co.,Ltd |
| 类别: | 可打开 |
| 材料: | 铝 |
| UW: | 0.79 W/(m2 K) |
| 能效阶级: | phB |
| 空间: | Technoform-Spacer SP16 |
| 气候区: | 冷,温度 |

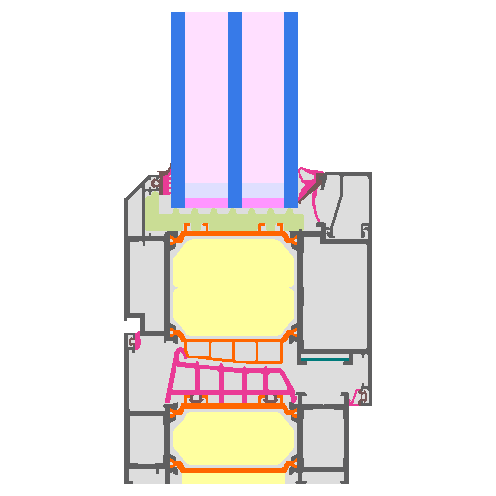

| 描述: | Aluminium frame with thermal separation (0.30 W/(mK)) and insulation (Resol foam 0.023 W/(mK)); Pane thickness: 54 mm (6/18/6/18/6), rebate depth: 15 mm. Spacer: TGI-Spacer Precision. |
| Certified since: | 2021年11月5日 |
| 边宽缩减 | 边宽高度 bf mm |
Frame U-value Uf W/(m2 K) |
Glass edge Ψ-value Ψg W/(m K) |
温度因素 fRsi = 0.25 m2K/W |
|---|---|---|---|---|
| 立柱2 | 226 | 0.77 | 0.030 | 0.75 |
| 下横框 | 132 | 0.76 | 0.030 | 0.75 |
| 上横框 | 132 | 0.76 | 0.030 | 0.75 |
| 侧面 | 132 | 0.76 | 0.030 | 0.75 |
Installation situation |
||
|
|
UW, 装置 = ? W/(m2 K) |
|
| m m m | ||||||||||||||
|
|
|||||||||||||
|
UW = ? W/(m2 K) |
