Twist S-6350 sliding door
| Certified since | 13 Май 2025 |
| Climate zone | Cool, temperate |
| Type | Sliding door |
| Sub type | |
| Efficiency class | phB |
| Material | PVC |
| UW | 0.80 W/(m2K) |
| Open type |
Description
Sliding door with FRP-reinforcements (0.72 W/(mK)) and insulation fillings (0.031 W/(mK). Airtightness and structural report available in technical documents. Spacer: SuperSpacer Premium in 16mm Argon IGU. 15 mm Glass inset
| Name | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

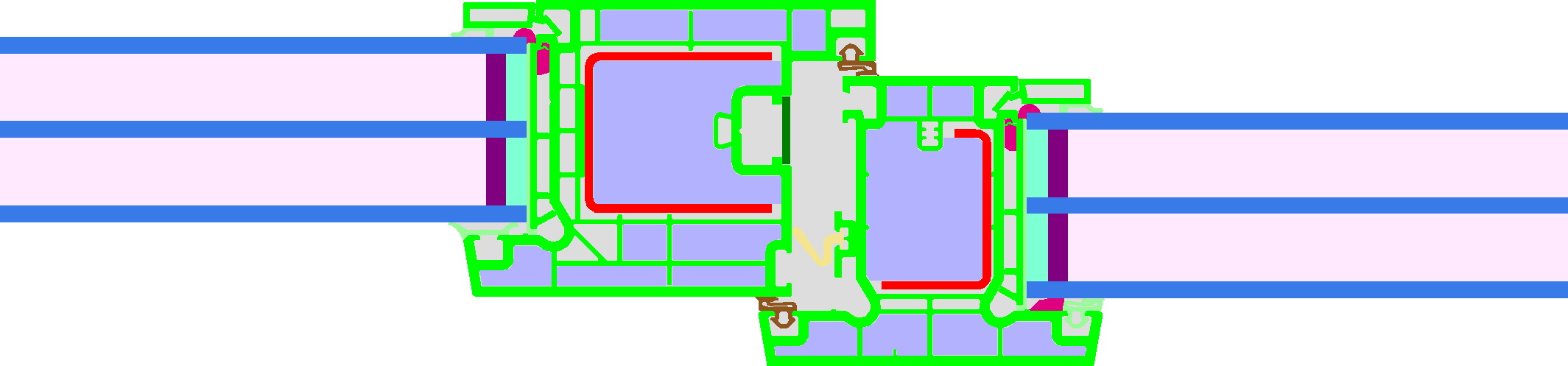

| Mullion 1 casement | 156 mm | 0,95 W/(m²K) | 0,024 W/(mK) | 0,700 |

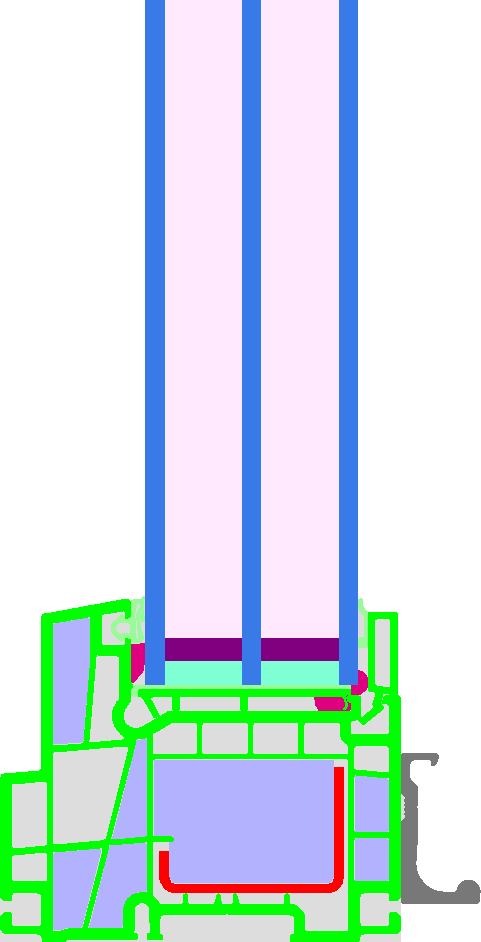

| Bottom Fixed | 72 mm | 0,87 W/(m²K) | 0,025 W/(mK) | 0,730 |

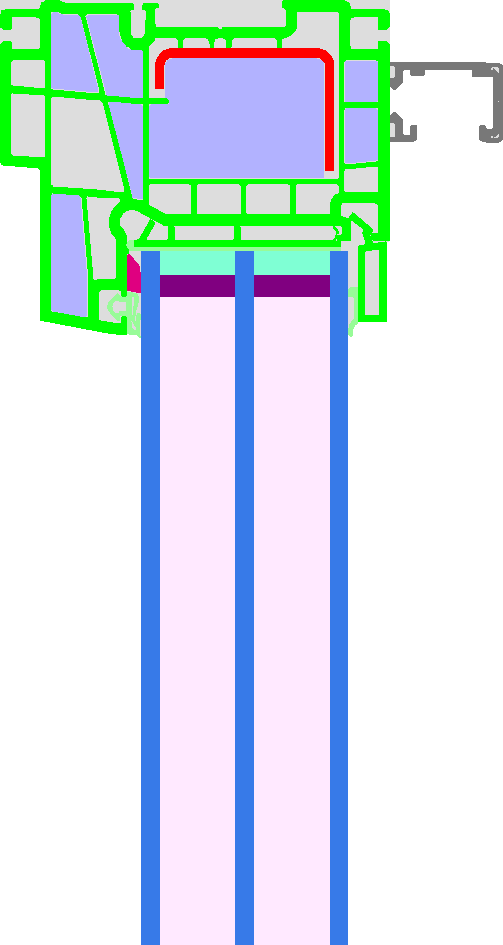

| Top fixed | 72 mm | 0,87 W/(m²K) | 0,025 W/(mK) | 0,750 |

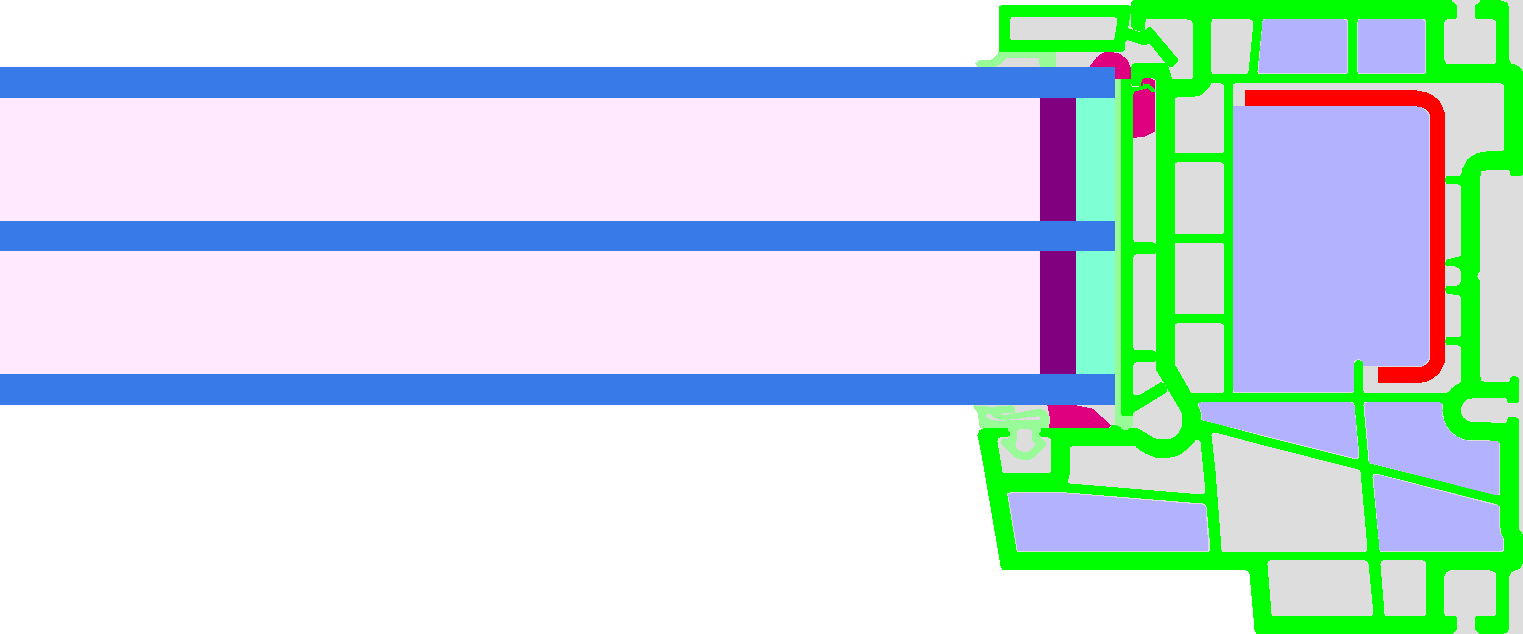

| Lateral fixed | 72 mm | 0,86 W/(m²K) | 0,025 W/(mK) | 0,740 |

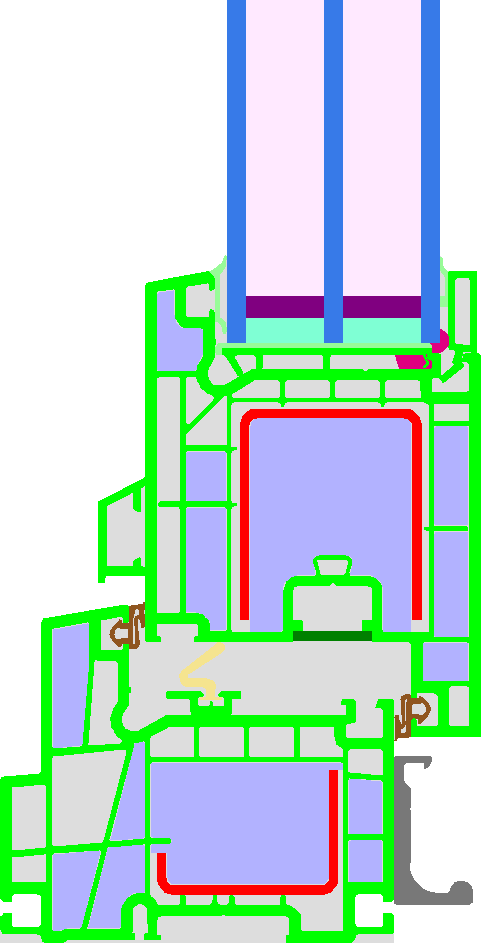

| Bottom | 142 mm | 0,94 W/(m²K) | 0,025 W/(mK) | 0,740 |

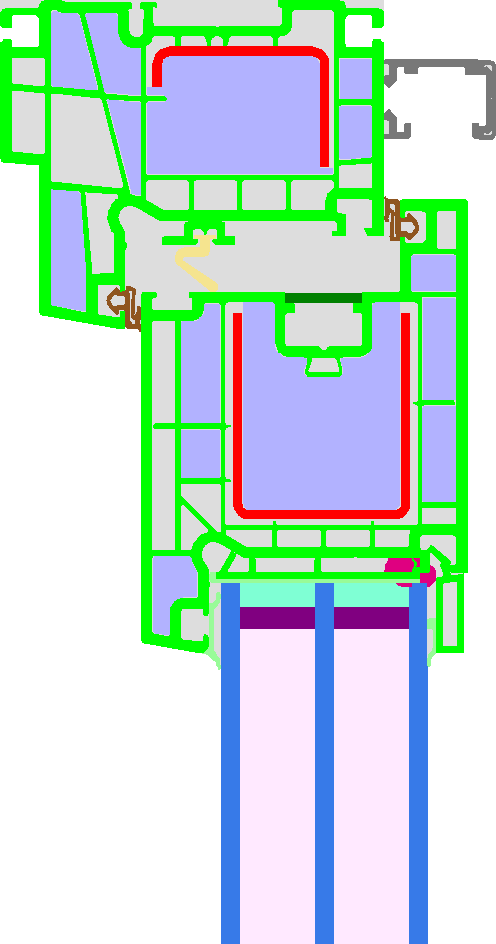

| Head | 142 mm | 0,96 W/(m²K) | 0,025 W/(mK) | 0,740 |

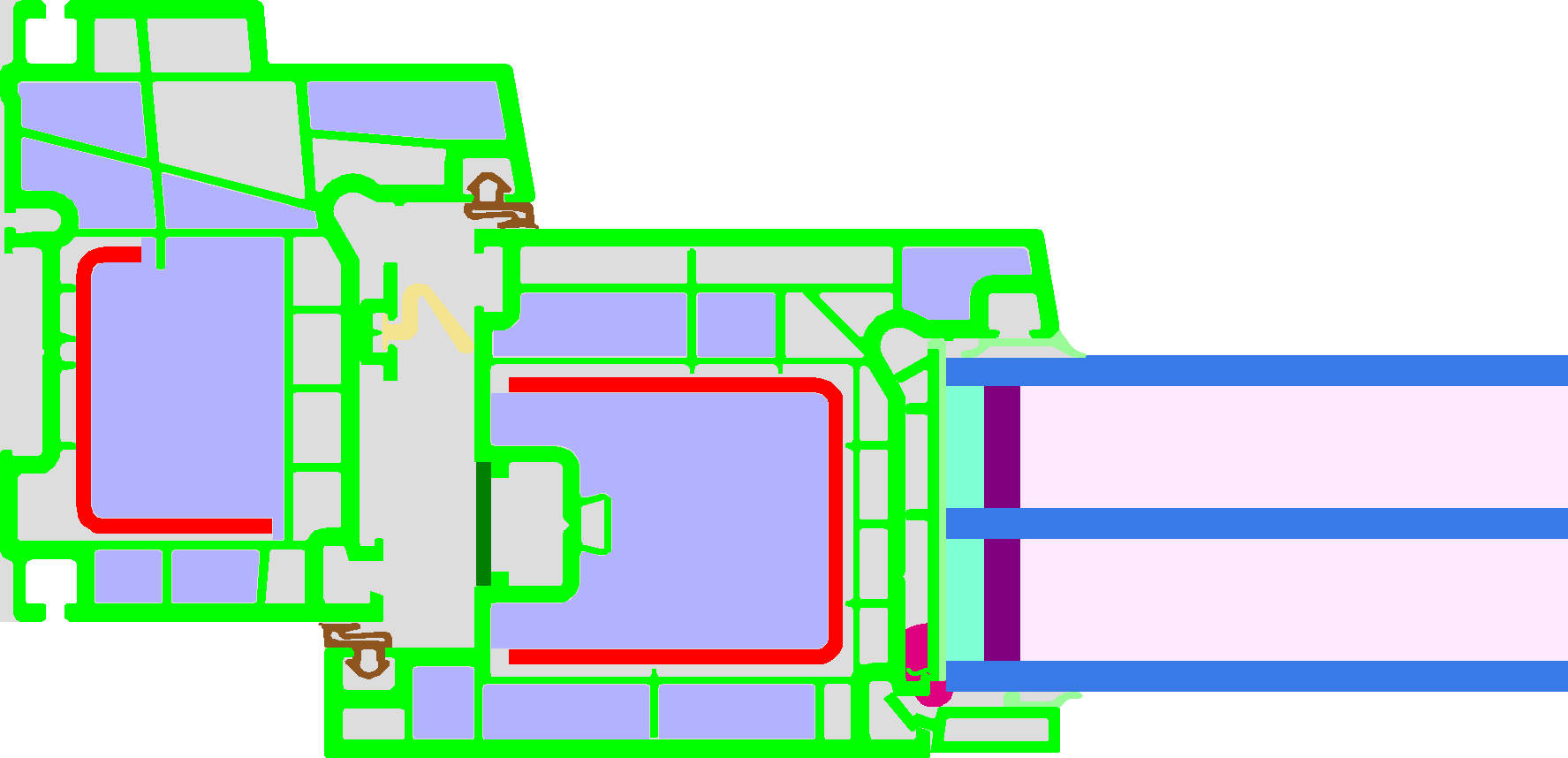

| Jamb | 142 mm | 0,95 W/(m²K) | 0,024 W/(mK) | 0,730 |
| Threshold | 142 mm | 0,94 W/(m²K) | 0,025 W/(mK) | 0,740 |
