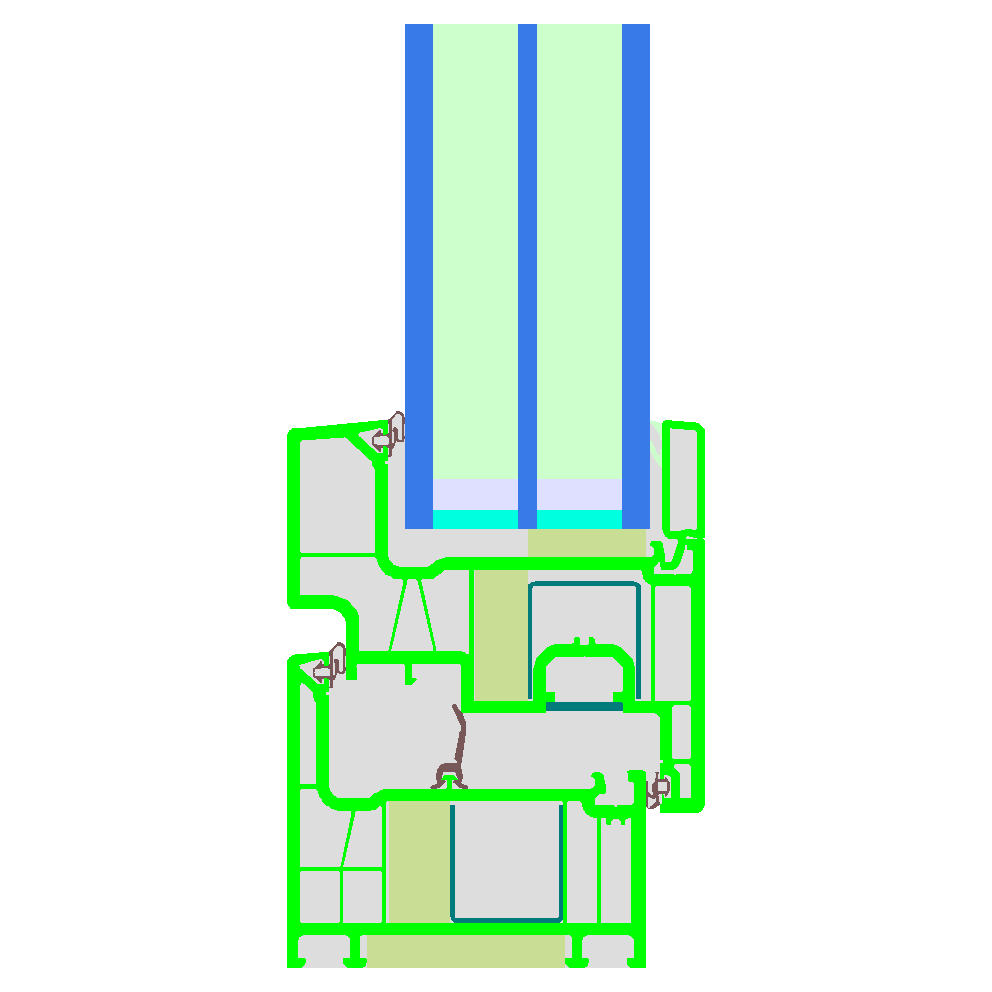

2489wi04 Dorado 76: (Operable): OB1
2489wi04 Dorado 76: (Operable): OB1

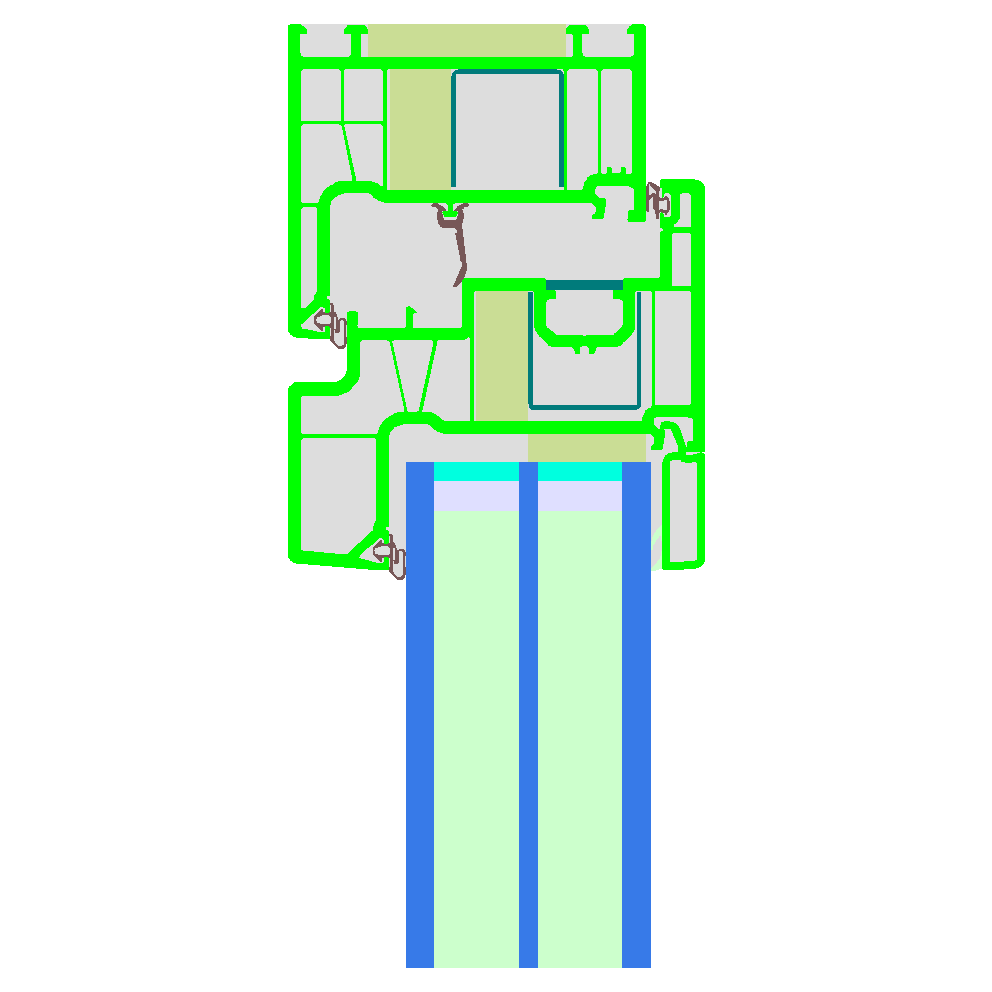

2489wi04 Dorado 76: (Operable): OH1

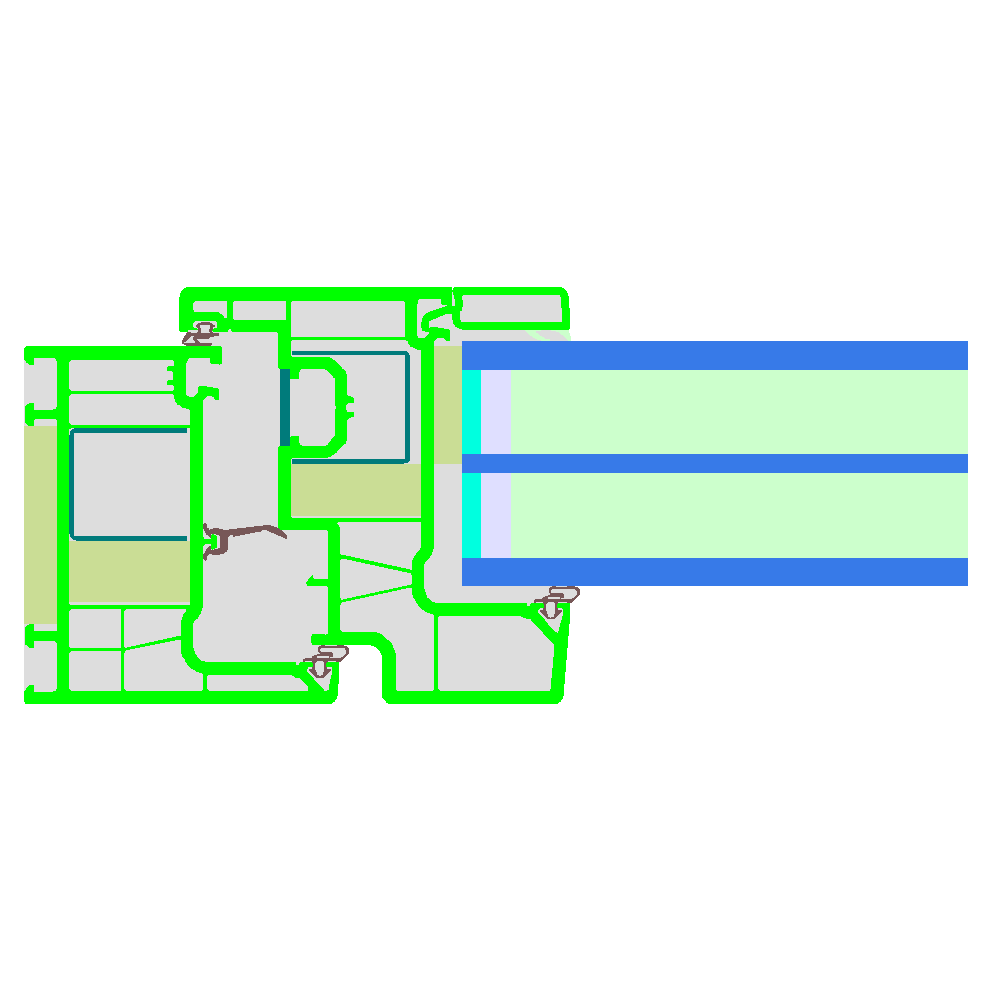

2489wi04 Dorado 76: (Operable): OJ1
Dorado 76
| Certified since | 08 Юли 2025 |
| Climate zone | Warm, temperate |
| Type | Operable |
| Sub type | |
| Efficiency class | phB |
| Material | PVC |
| UW | 0.99 W/(m2K) |
| Open type |
Description
PVC window frame with steel reinforcement and insulation inserts in both the frame and sash (XPS insulation; lambda = 0.036 W/(m.K)). The maximum tested area of the sash is 2.50 m². The maximum tested dimensions of the sash are 0.80 x 2.20 m, 1.50 x 1.50 m, or 1.25 x 2.00 m. Pane thickness: 52 mm (6/18/4/18/6), rebate depth: 23 mm. Spacer: SWISSPACER Ultimate with butyl as secondary seal.
| Name | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|
| Bottom | 116 mm | 1,01 W/(m²K) | 0,024 W/(mK) | 0,726 |
| Head | 116 mm | 1,01 W/(m²K) | 0,024 W/(mK) | 0,726 |
| Jamb | 116 mm | 1,01 W/(m²K) | 0,024 W/(mK) | 0,726 |
