8500 – Neo Advance Door
| Certified since | 15 Май 2026 |
| Climate zone | Cool, temperate |
| Type | Operable |
| Sub type | |
| Efficiency class | phC |
| Material | PVC |
| UW | 0.80 W/(m2K) |
| Open type | Inward opening |
Description
Vinyl window frame, insulated by EPS-foam 0.031 W/(mK)), reinforced by thermally broken steel reinforcement. With the tested combination, sash sizes of 1.2 m * 2.55 m and with coloured profiles 1.2 m * 2.45 m are possible. For larger elements, the aluplast GmbH processing guidelines must be followed. Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 17 mm. Spacer: SuperSpacer Tri-Seal Premium Plus.
| Name | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

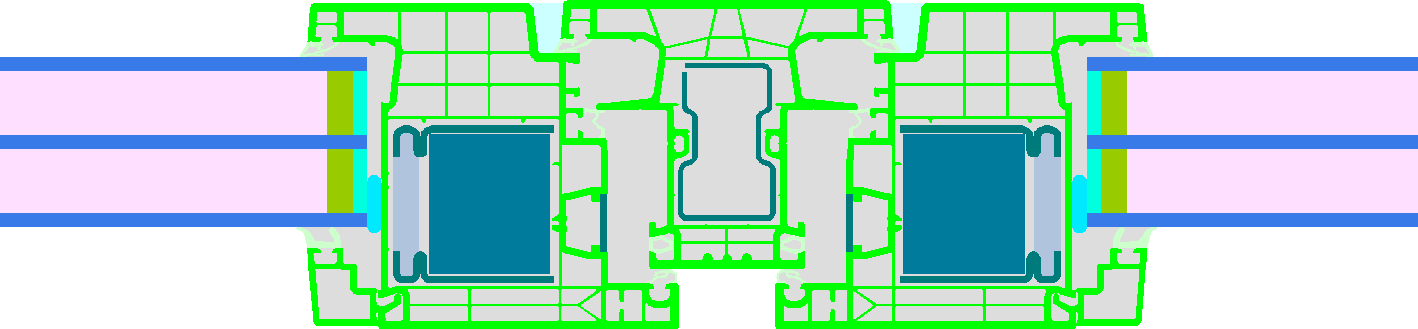

| Mullion 2 casements | 237 mm | 0,94 W/(m²K) | 0,024 W/(mK) | 0,71 |

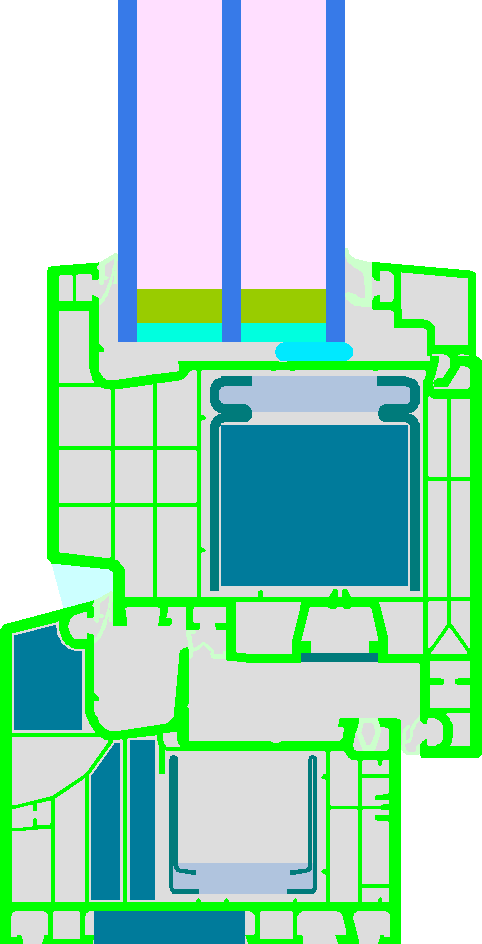

| Bottom | 145 mm | 0,80 W/(m²K) | 0,025 W/(mK) | 0,72 |

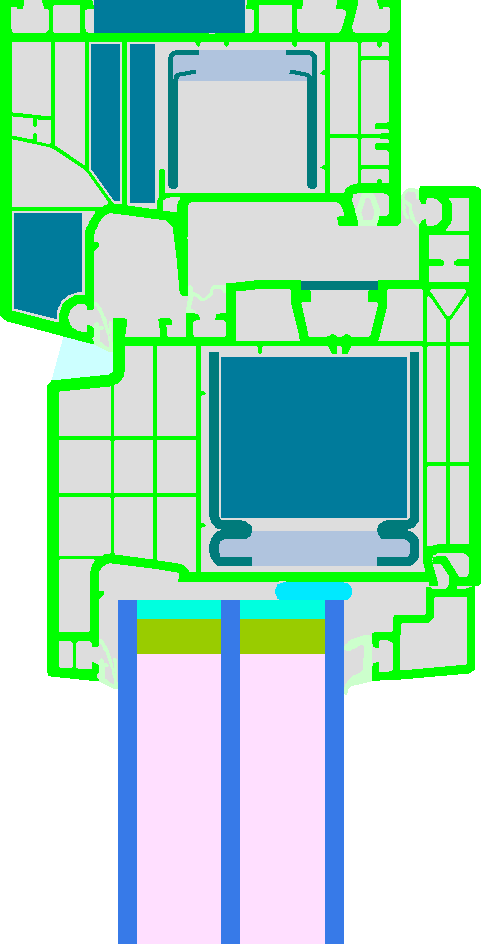

| Head | 145 mm | 0,80 W/(m²K) | 0,025 W/(mK) | 0,72 |

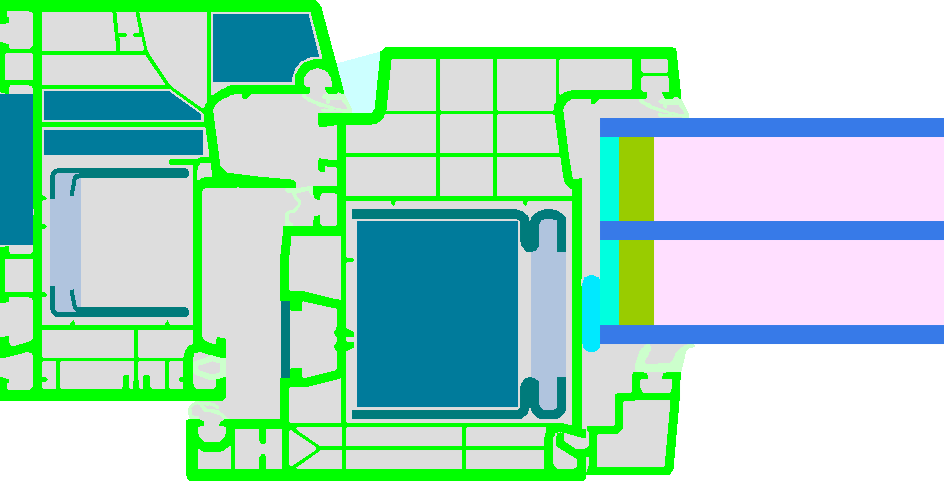

| Jamb | 145 mm | 0,80 W/(m²K) | 0,025 W/(mK) | 0,72 |
