Twist S-6300 Fixed Window
| Certified since | 07 Август 2025 |
| Climate zone | Cool, temperate |
| Type | Fixed |
| Sub type | |
| Efficiency class | phA |
| Material | PVC |
| UW | 0.77 W/(m2K) |
| Open type |
Description
Non-reinforced PVC frame, insulated with EPS (0,031 W/(mK)). The maximum window size with this reinforcement is 48" (1,22 m) wide by 72" (1,83 m) high. There is no restriction regarding colour finishes. Pane thickness: 44 mm (4/16/4/16/4), rebate depth: 18 mm.
| Name | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

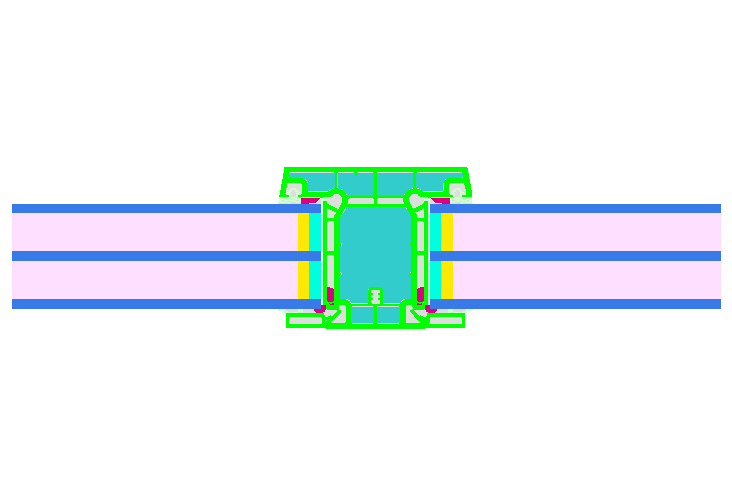

| Mullion Fixed | 82 mm | 0,78 W/(m²K) | 0,024 W/(mK) | 0,750 |

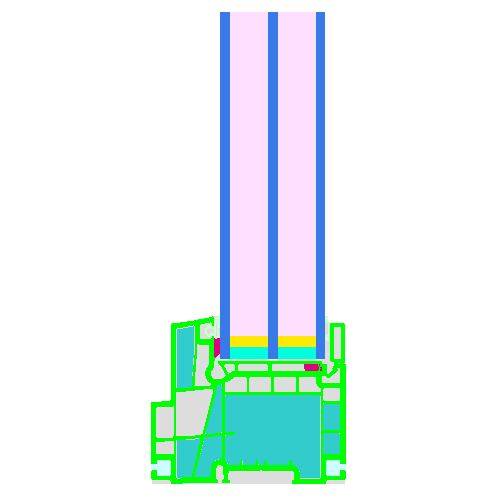

| Bottom Fixed | 71 mm | 0,74 W/(m²K) | 0,024 W/(mK) | 0,730 |

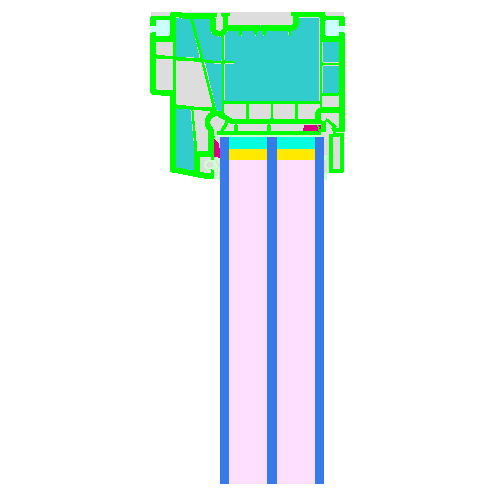

| Top fixed | 71 mm | 0,74 W/(m²K) | 0,024 W/(mK) | 0,730 |

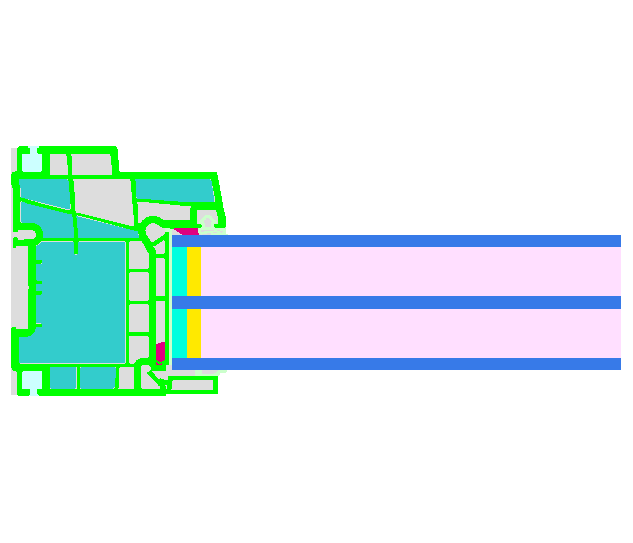

| Jamb fixed | 71 mm | 0,74 W/(m²K) | 0,024 W/(mK) | 0,730 |
