2607wi05 Centroalum HO80: (Operable) - Centroalum HO80
2607wi05 Centroalum HO80: (Operable)

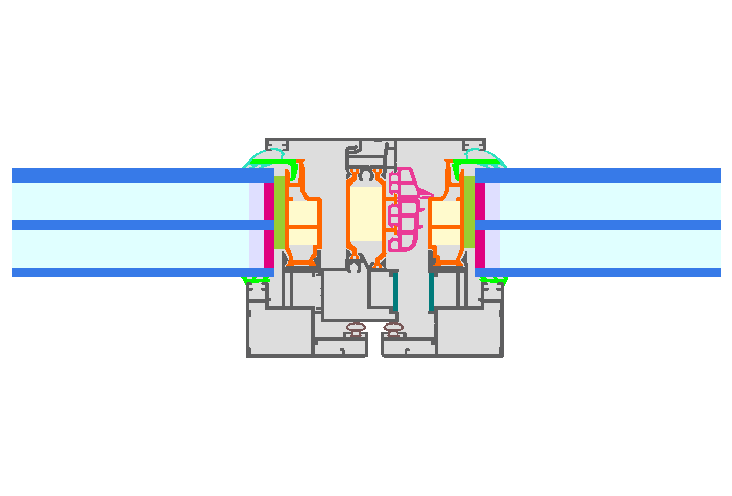

2607wi05 Centroalum HO80: (Operable): FM1
2607wi05 Centroalum HO80: (Operable): OB1
2607wi05 Centroalum HO80: (Operable): OH1
2607wi05 Centroalum HO80: (Operable): OJ1
Centroalum HO80
| Certified since | 20/05/2026 |
| Climate zone | Ζεστή |
| Τύπος | Operable |
| Sub type | |
| Efficiency class | phB |
| Υλικό | Aluminium |
| UW | 1,20 W/(m2K) |
| Open type | Inward opening |
Περιγραφή
Aluminium frame with thermal separation (low lambda PA 0.21 W/(mK)) and insulation (PIR 0.023 W/(mK)). Spacer: Swisspacer Ultimate, with silicone as a secondary seal. Pane thickness: 46 mm (6/16/4/16/4), rebate depth: 12 mm.
| Όνομα | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|
| Flying Mullion | 109 mm | 1,45 W/(m²K) | 0,031 W/(mK) | 0,76 |
| Bottom | 76 mm | 1,14 W/(m²K) | 0,033 W/(mK) | 0,76 |
| Head | 76 mm | 1,14 W/(m²K) | 0,033 W/(mK) | 0,76 |
| Jamb | 76 mm | 1,14 W/(m²K) | 0,033 W/(mK) | 0,76 |
