Gradwall

Info U-value calculation

Compare all

Gradwall

Certified since	17 juin 2025
Zone climatique	Chaud, tempéré
Type	Connection
Sub type	Roller shutter
Efficiency class	phC
Material	PVC
`U`_W	1,00 W/(m²K)
Open type

Description

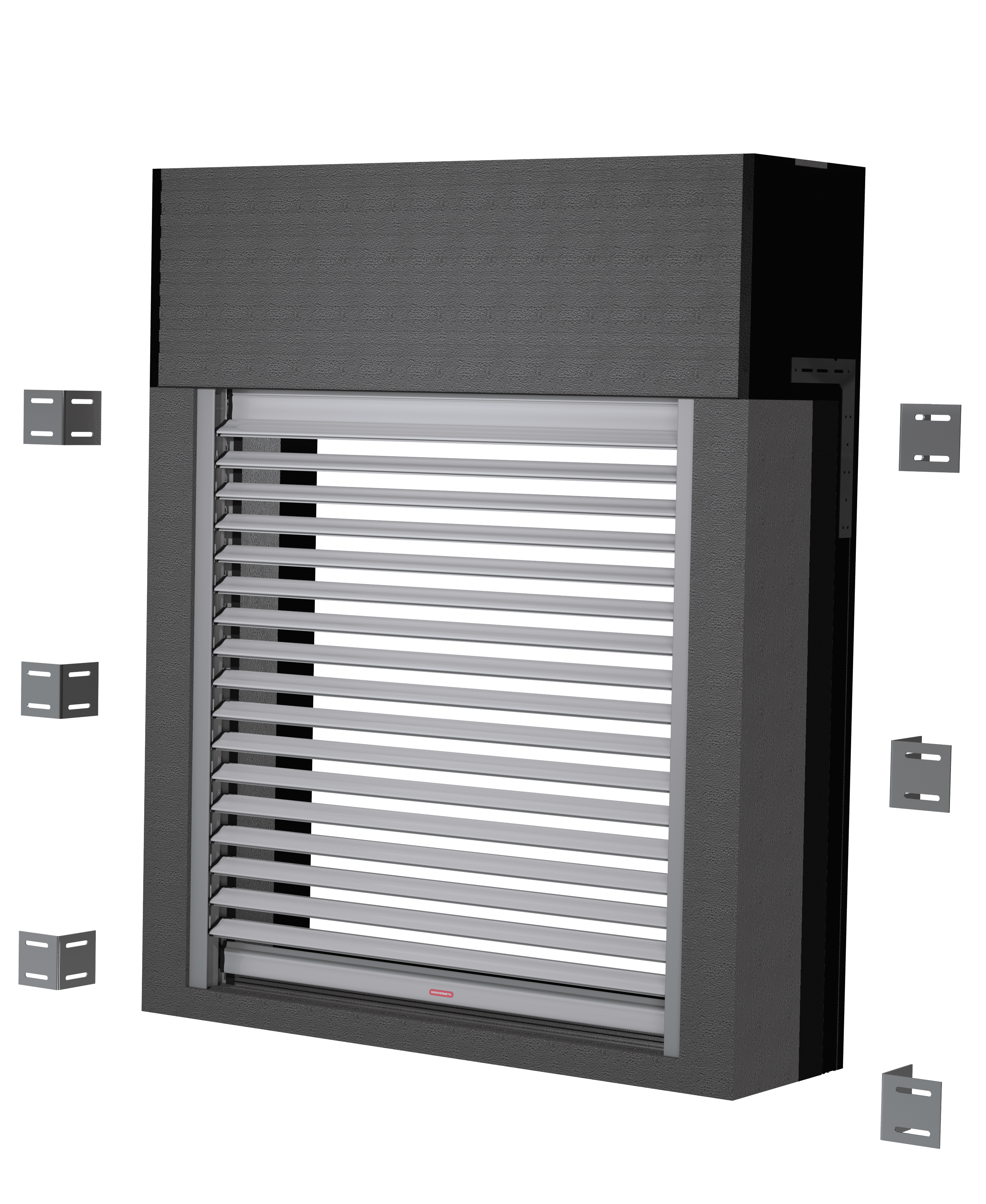

Airtight sun protection system made of blown-in Neopor reinforced with foamed PVC. It forms an insulated perimeter that incorporates the SUPERGRADHERMETIC adjustable roller blind and serves as a window mounting system. Maximum shutter height: 2750 mm.

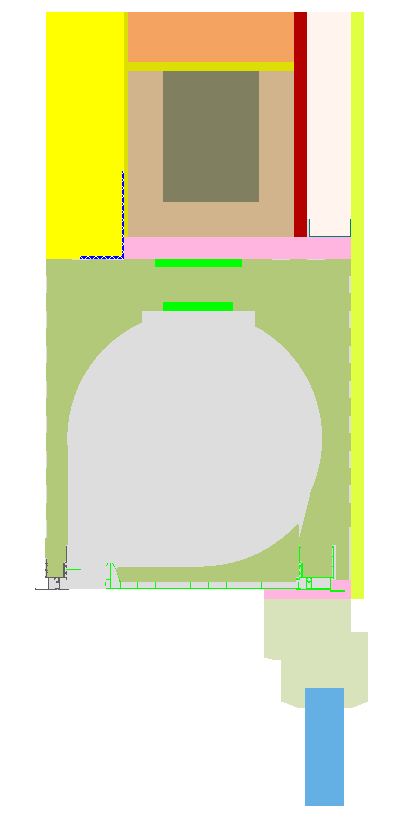

Nom	Frame width	U-value	Ψ-value	Frsi-value
Bottom	125 mm	0,92 W/(m²K)	0,038 W/(mK)	0,670
Head	125 mm	0,92 W/(m²K)	0,038 W/(mK)	0,670
Jamb	125 mm	0,92 W/(m²K)	0,038 W/(mK)	0,670

Component ID

2471rs04

Export

PHPP 9

PHPP 10

Certificat

English

Español

Manufacturer

INDUSTRIAL GRADHERMETIC, S.A.E

Adresse

Avenida de Béjar 345
08226 Terrassa, Barcelona
Spain

Téléphone

(+34) 93 731 44 08

Courriel

info@gradhermetic.es

Site web

http://www.gradhermetic.es
