SL82 Passiv 1.0

Info U-value calculation

Compare all

SL82 Passiv 1.0

Certified since	07 Novembre 2019
Climate zone	Caldo, temperato
Tipo	Operable
Sub type
Efficiency class	phC
Material	PVC
`U`_W	1,00 W/(m²K)
Open type

Descrizione

PVC frame + sash with steel reinforcement (thermal break PUR (0,25 W/m·K)). Glass 48 mm (4/18/4/18/4). SWISSPACER Ultimate with polysulfid. Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 25 mm. Spacer: SWISSPACER Ultimate.

Nome	Frame width	U-value	Ψ-value	Frsi-value

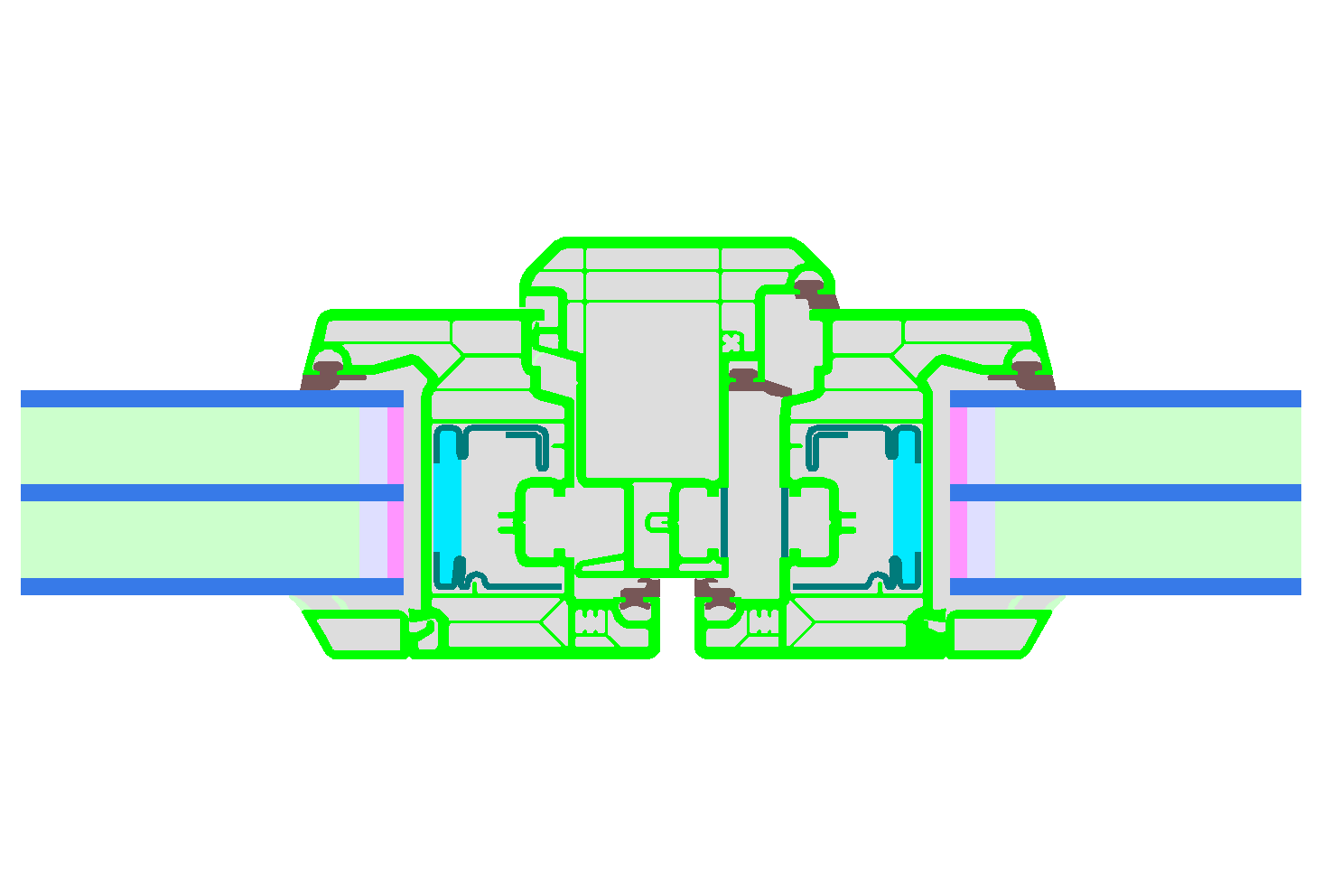

Flying Mullion	176 mm	0,97 W/(m²K)	0,025 W/(mK)	0,670

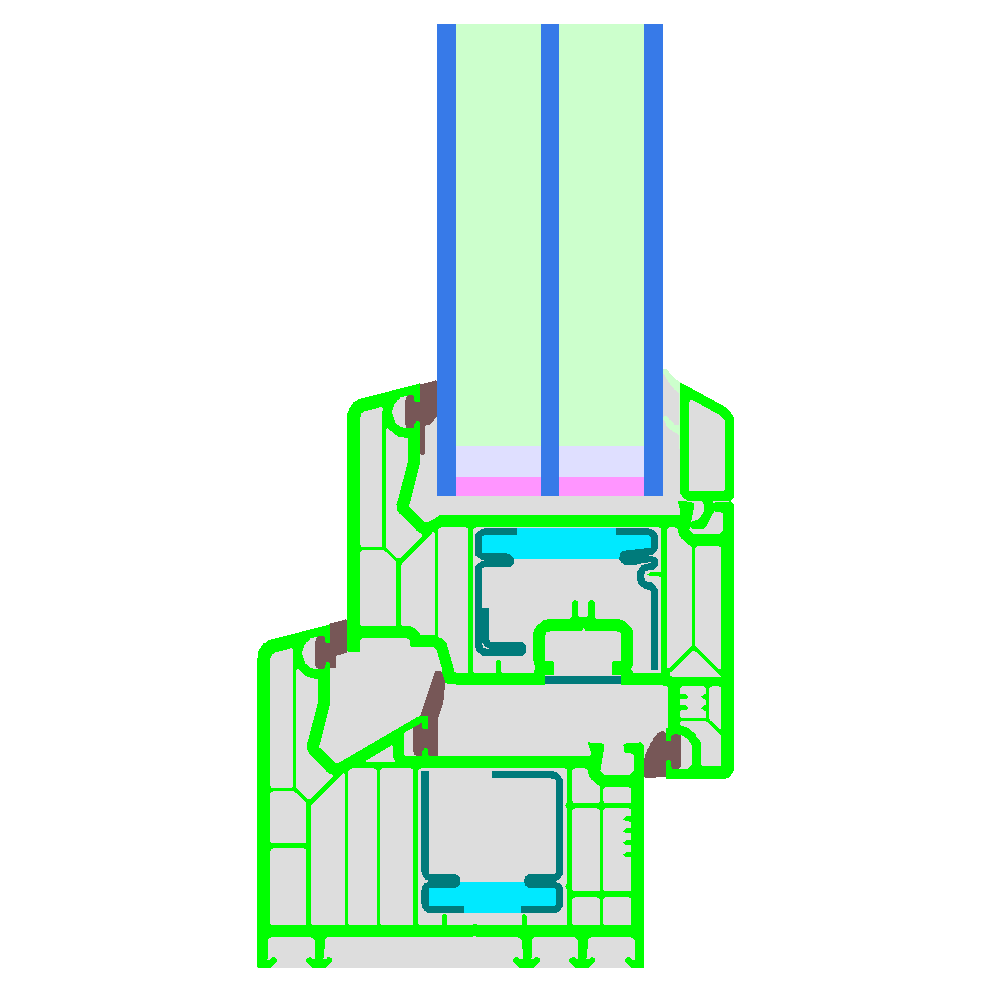

Bottom	124 mm	1,02 W/(m²K)	0,026 W/(mK)	0,700

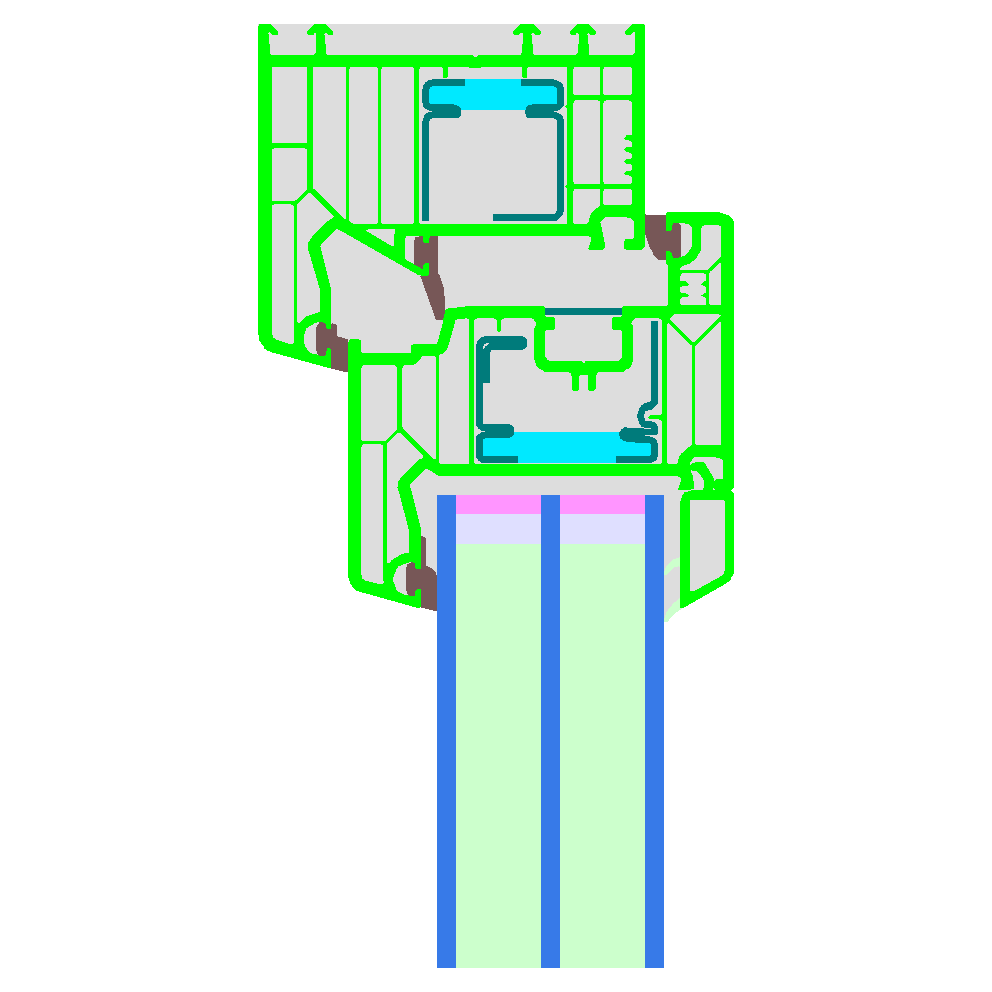

Top	124 mm	1,02 W/(m²K)	0,026 W/(mK)	0,700

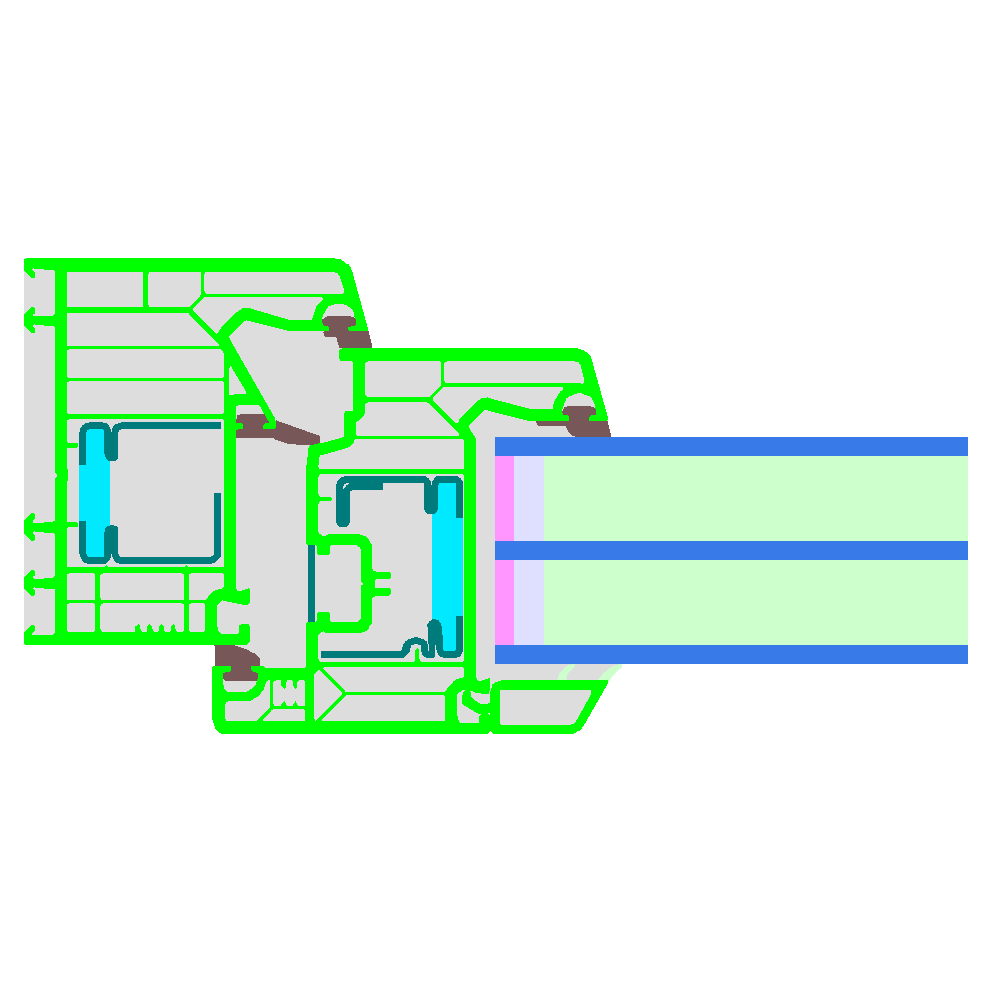

Lateral	124 mm	1,02 W/(m²K)	0,026 W/(mK)	0,700

Component-ID

1480wi04

Export

Certificato

Manufacturer

VEKAPLAST IBERICA S.A.U

Indirizzo

C/ Lopez Bravo 58
09001 Burgos
Spain

Telefono

+34 947 47 30 20

Email

amartin@veka.com

Sito web

http://www.veka.es
