GENEO Passive House

Certified since	15 Marzo 2023
Climate zone	Freddo, temperato
Tipo	Operable
Sub type
Efficiency class	phB
Material	PVC
`U`_W	0,78 W/(m²K)
Open type

Descrizione

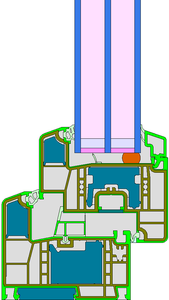

PVC frame with insulation fillings of expanded polystyrene (0.031 W/(mK)) Pane thickness: 44 mm (4/16/4/16/4), spacer: SWISSPACER Ultimate

Nome	Frame width	U-value	Ψ-value	Frsi-value
Mullion 1 casement	141 mm	0,77 W/(m²K)	0,025 W/(mK)	0,730
Bottom	115 mm	0,77 W/(m²K)	0,025 W/(mK)	0,750
Top	115 mm	0,77 W/(m²K)	0,025 W/(mK)	0,750
Lateral	115 mm	0,77 W/(m²K)	0,025 W/(mK)	0,750

Component-ID

2046wi03

Export

Certificato

Manufacturer

Indirizzo

1-30941 Peardonville Road
V2T 6K3 Abbotsford
Canada

Telefono

+16047760898

Email

info@wintegra.ca

Sito web

https://www.wintegra.ca/
