EV HYBRID system
| Certified since | 9 marca 2026 |
| Strefa klimatyczna | Warm, temperate |
| Typ | Window system |
| Sub type | |
| Klasa efektywności | phB |
| Materiał | PVC / aluminium |
| UW | 1,00 W/(m2K) |
| Typ otwarty | Otwarcie do wewnątrz |
Opis

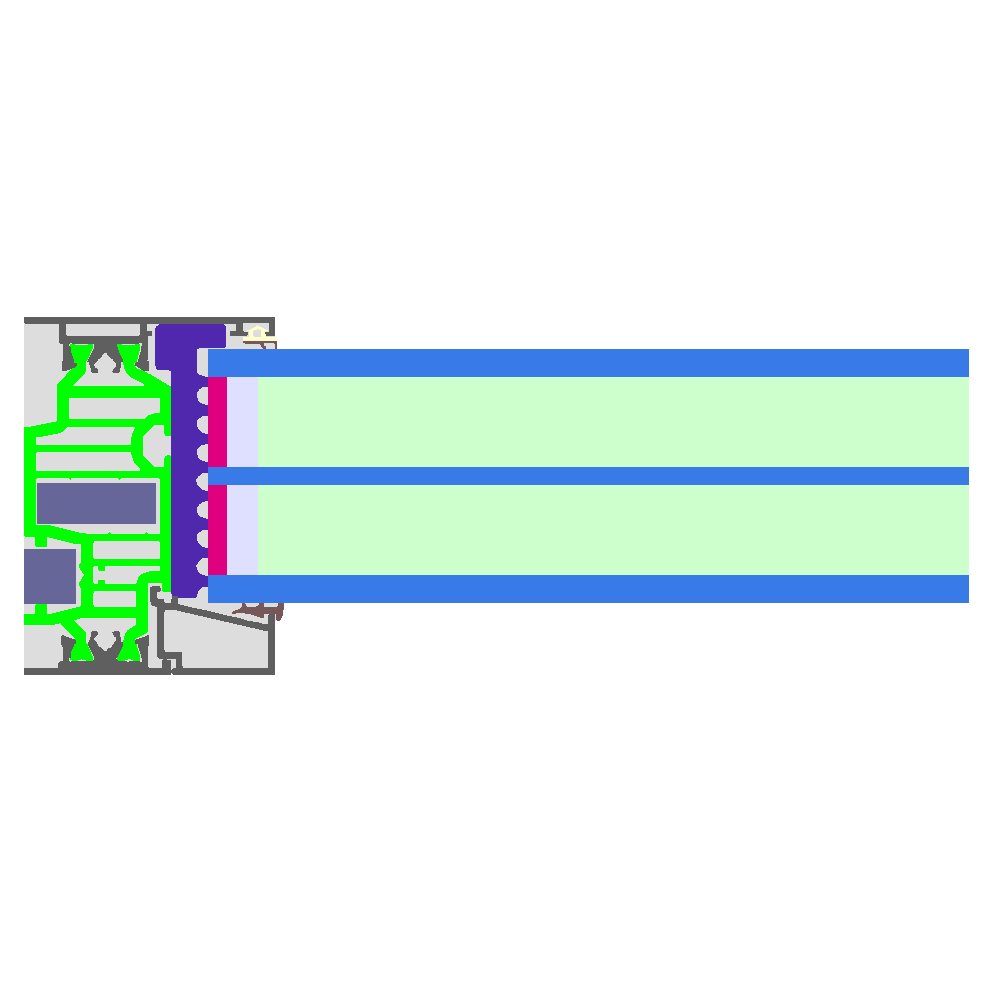

Aluminium frame with thermal separation made of PVC (0,17 W/(mK)), and insulation insert made of Graphite EPS (0,032 W/(mK)). Maximum dimensions in accordance to the tested parameters. Pane thickness: 54 mm (6/19/4/19/6), rebate depth: 14,25 mm.

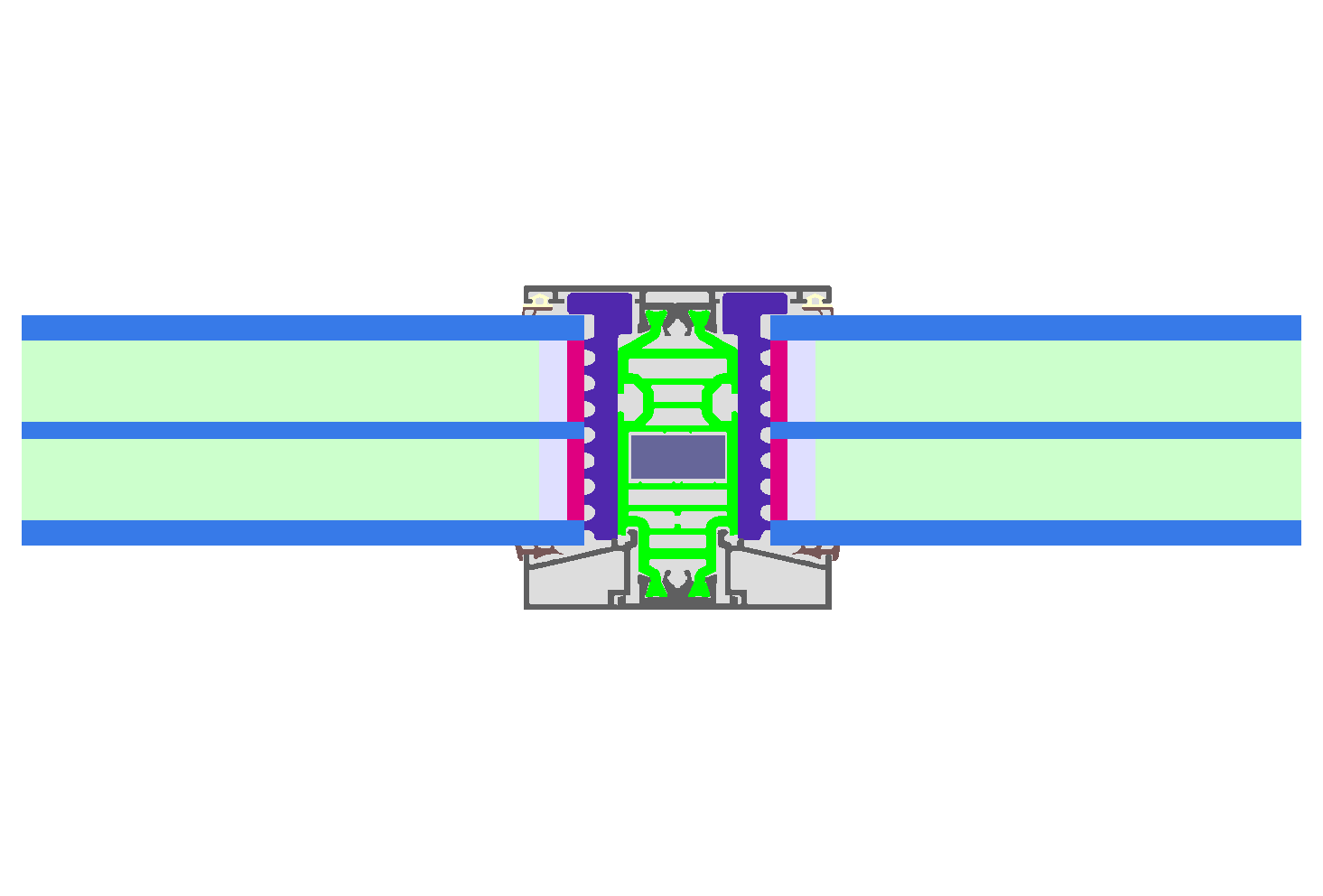

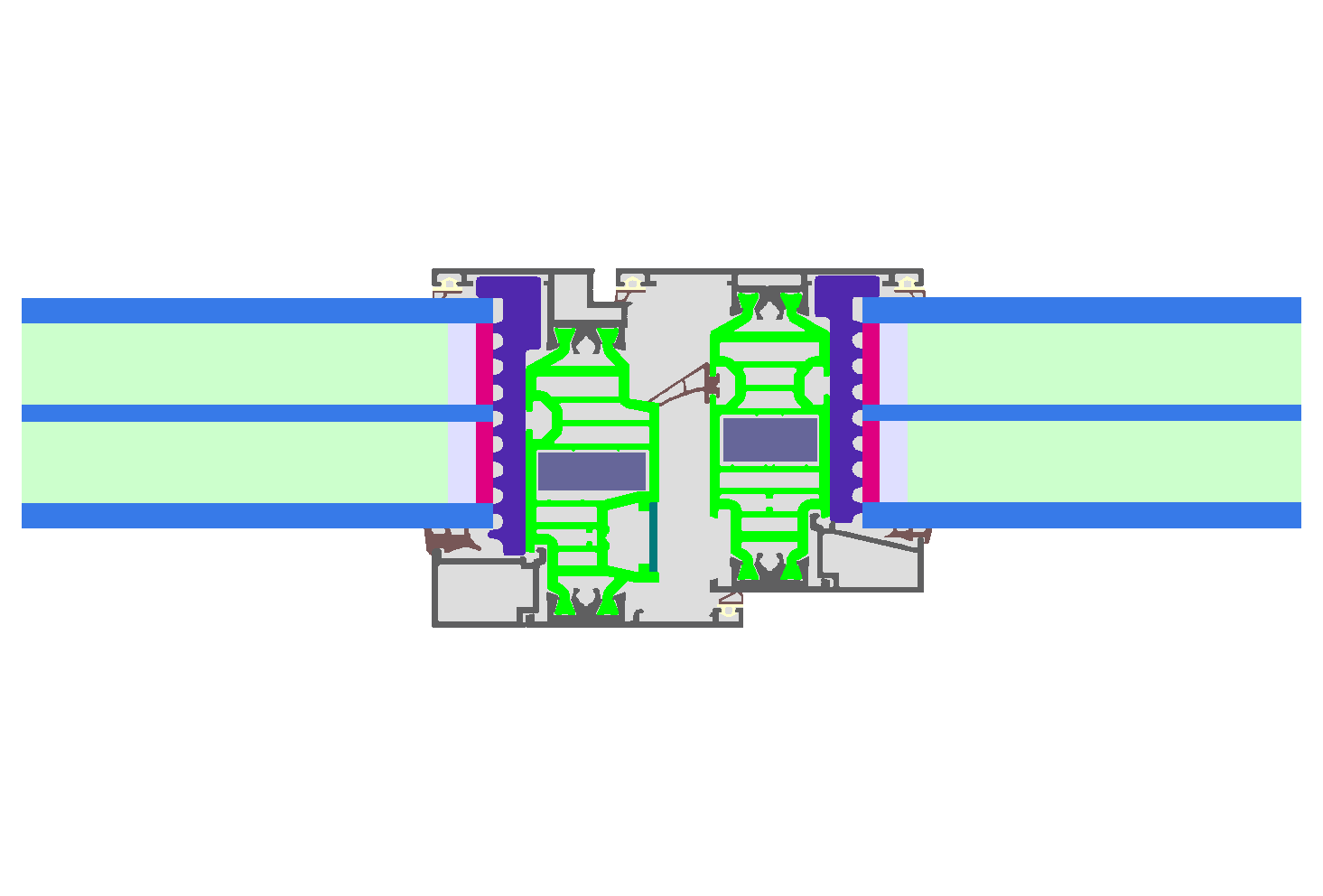

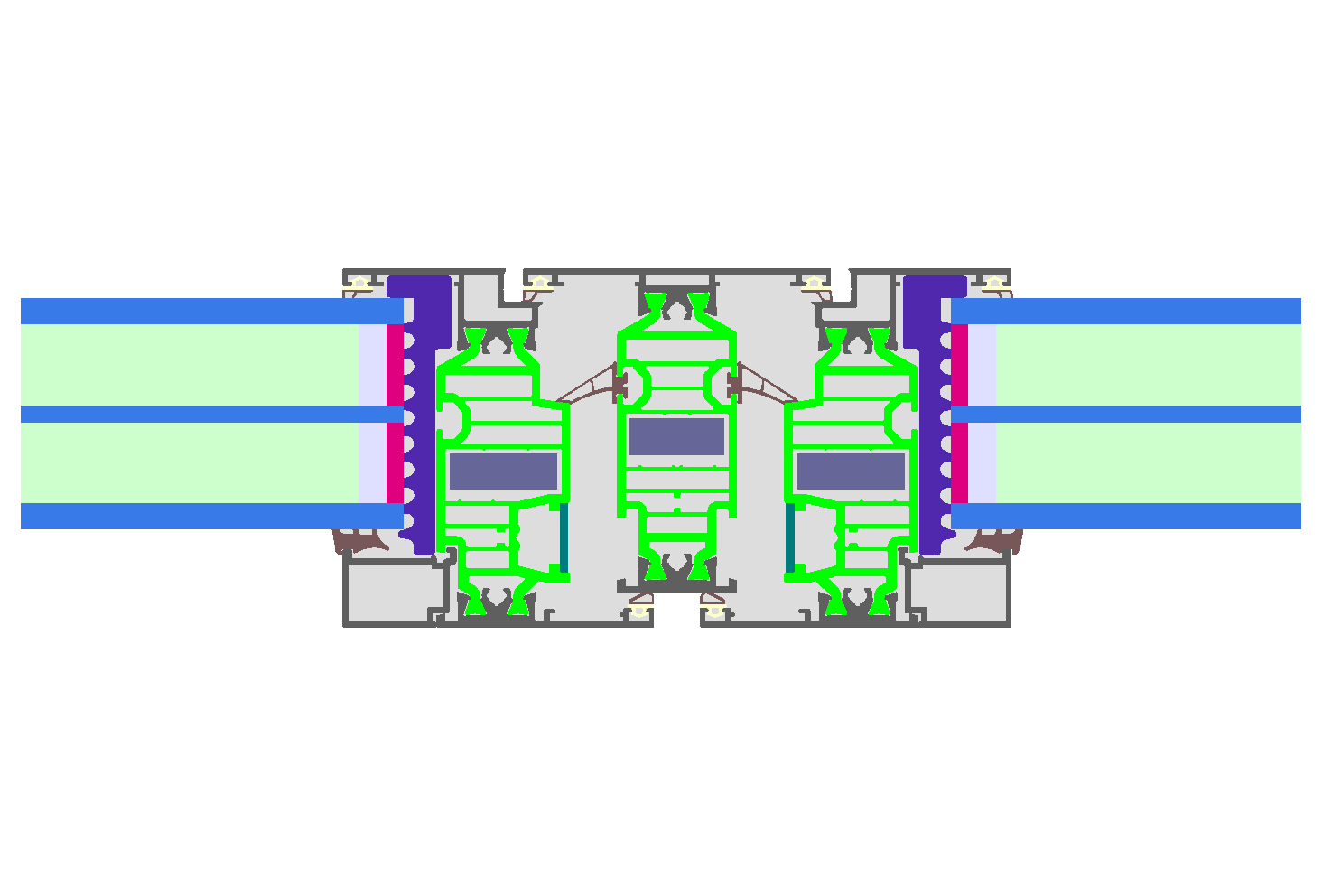

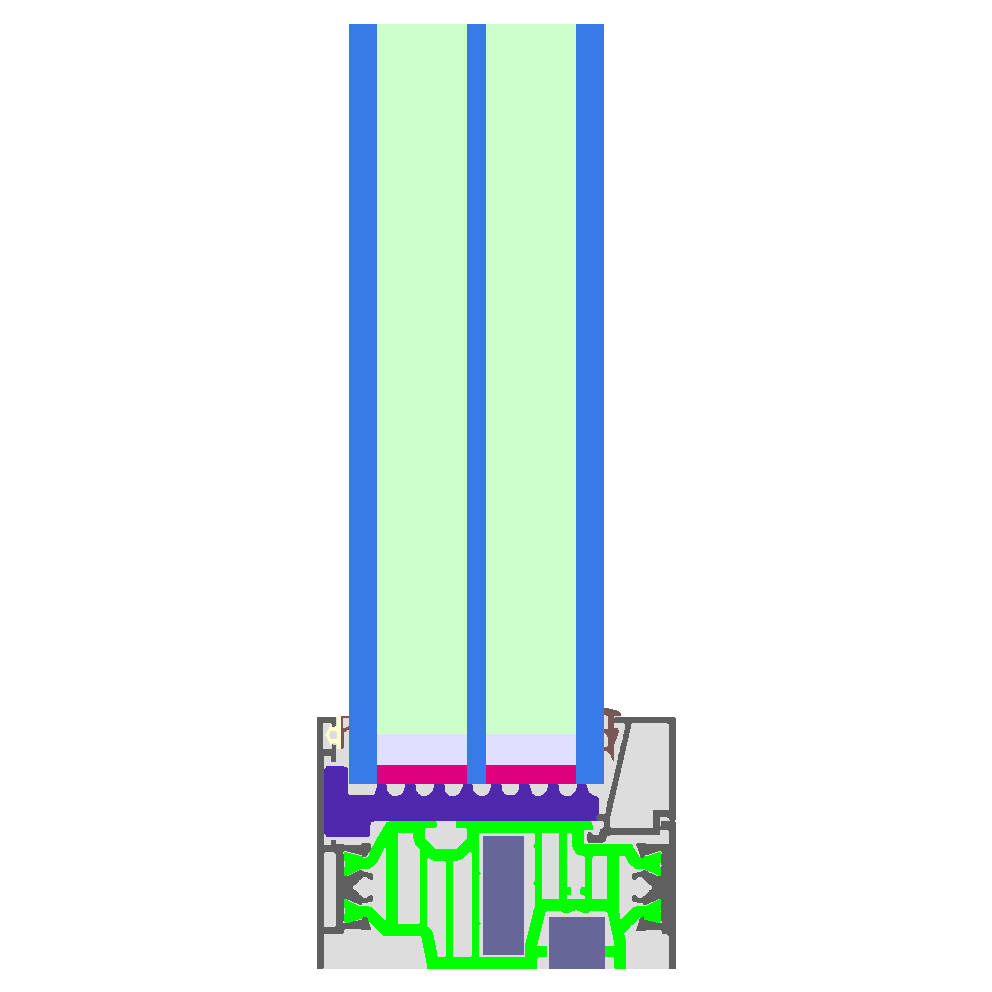

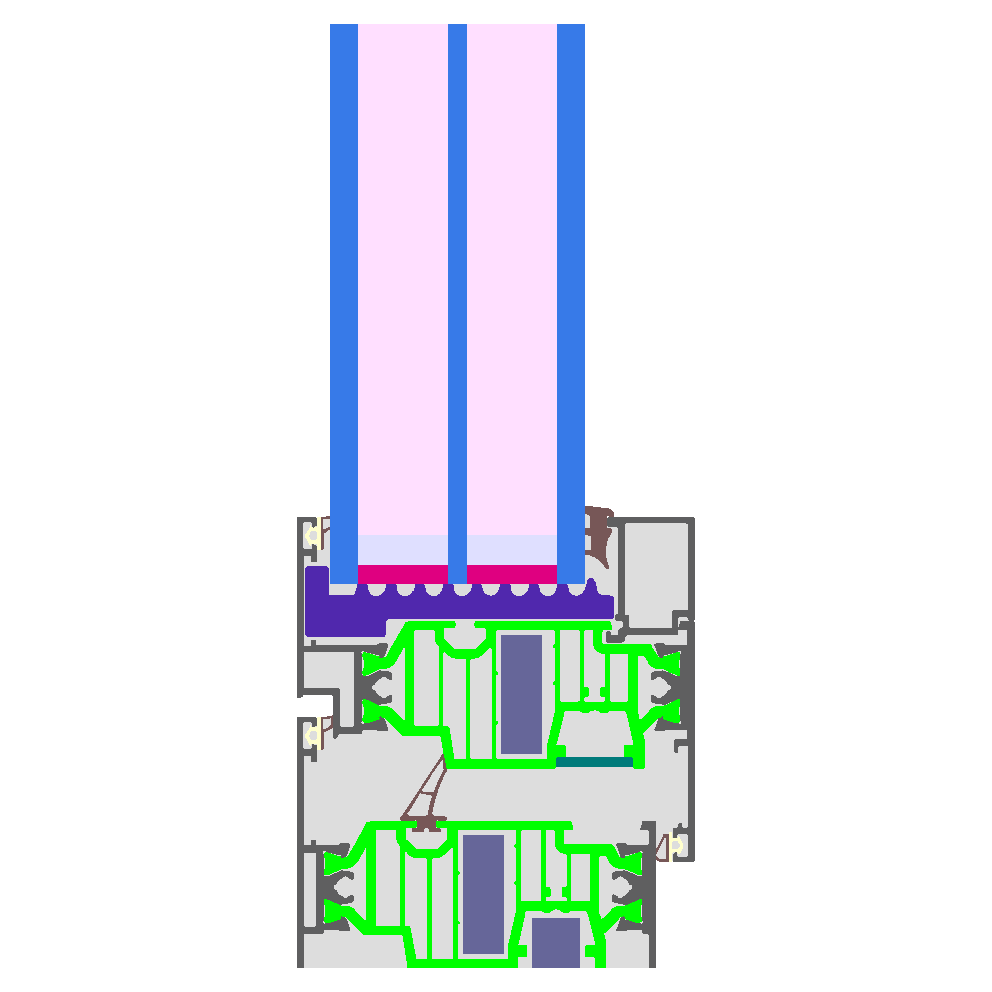

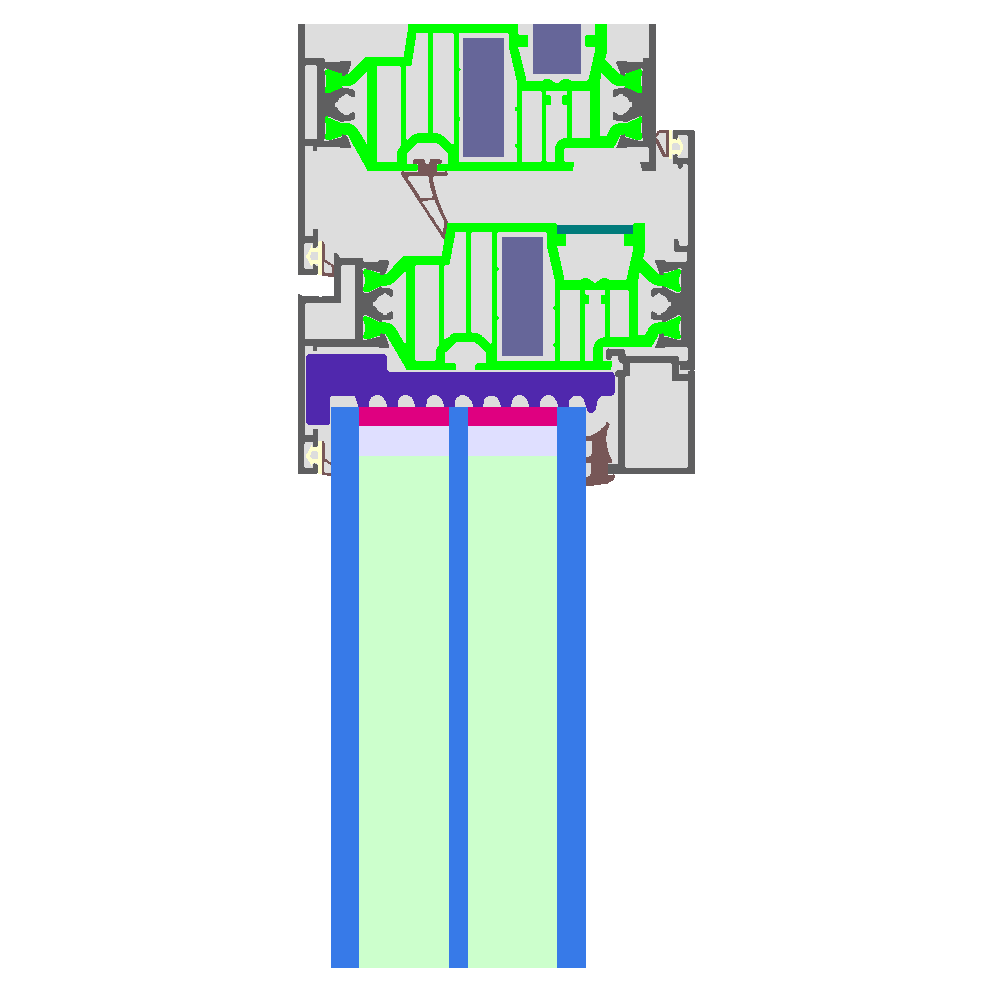

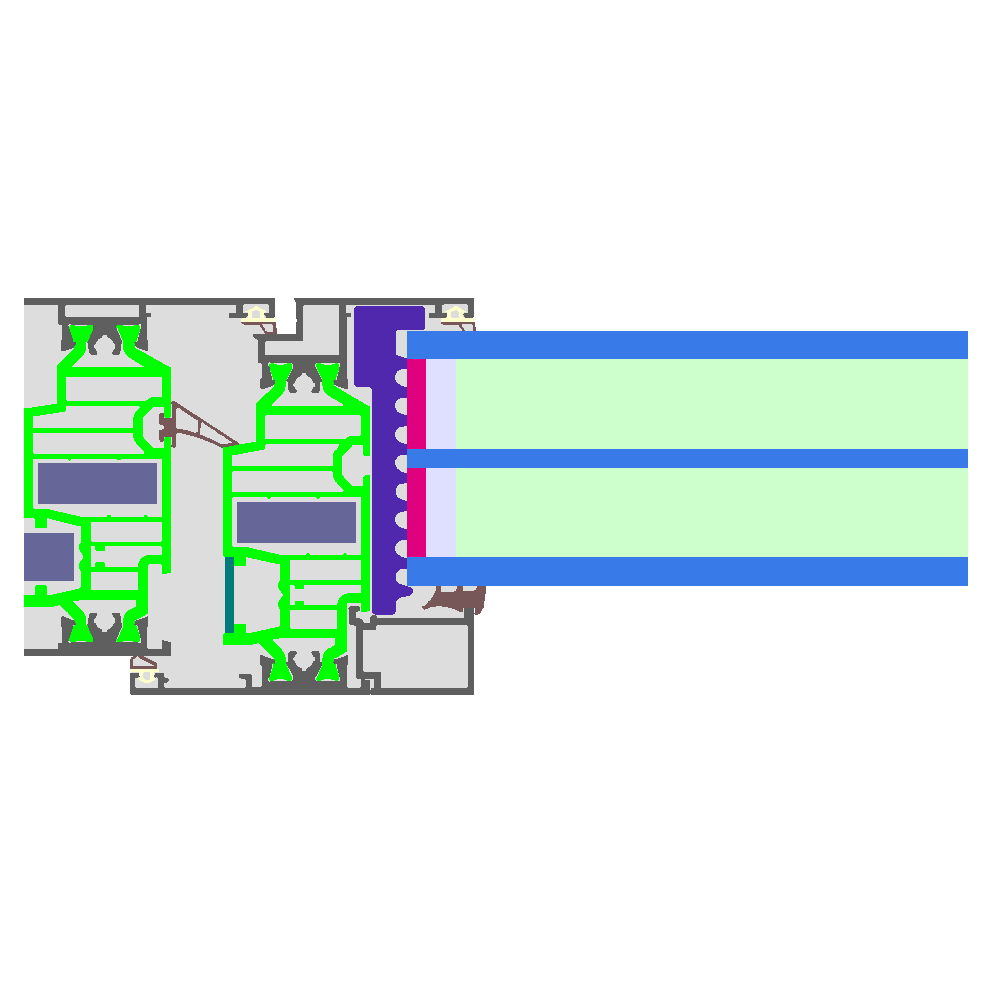

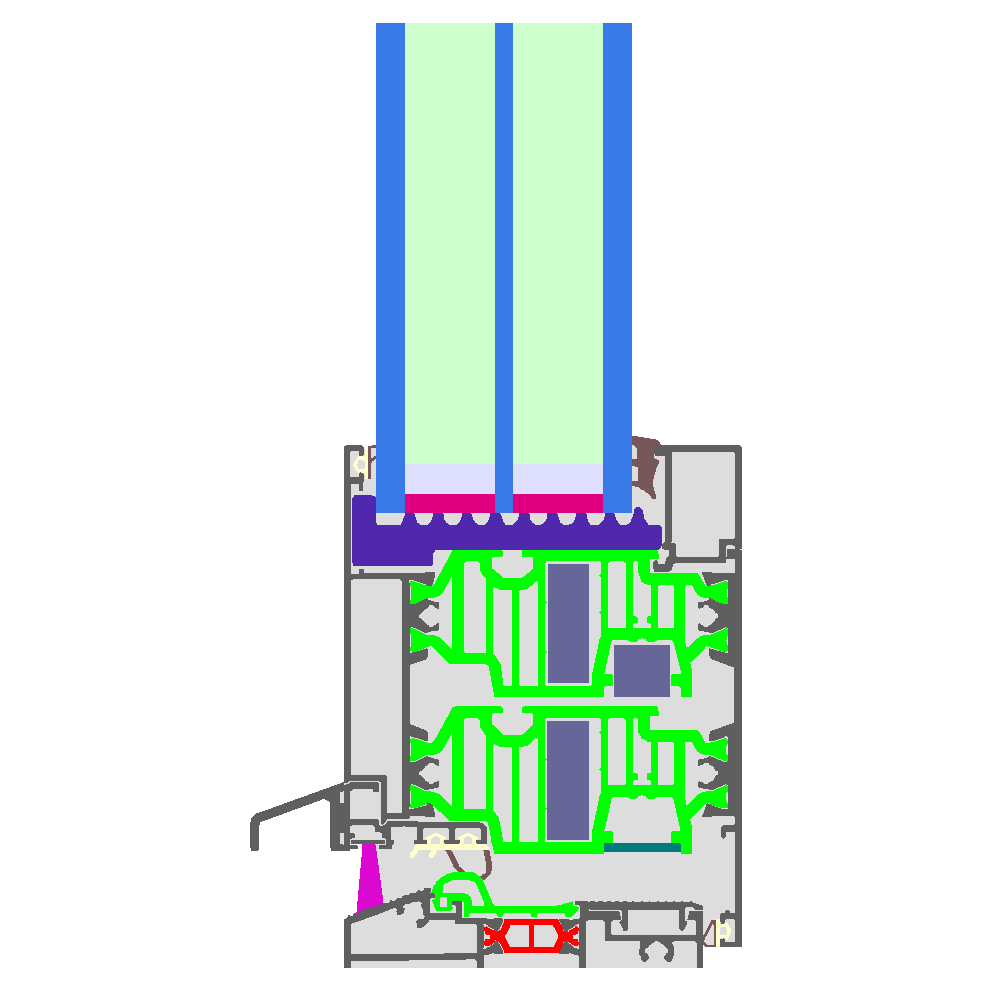

| Nazwa | Szerokość ramy | Współczynnik U | Ψ-value | Frsi-value |
|---|---|---|---|---|
| Szpros stały | 72 mm | 0,83 W/(m²K) | 0,028 W/(mK) | 0,75 |
| Szpros 1 skrzydło | 115 mm | 1,05 W/(m²K) | 0,025 W/(mK) | 0,74 |
| Szpros 2 skrzydła | 157 mm | 1,07 W/(m²K) | 0,026 W/(mK) | 0,74 |
| Strona zamka drzwi | 130 mm | 1,07 W/(m²K) | 0,026 W/(mK) | 0,73 |
| Dół stała | 53 mm | 0,88 W/(m²K) | 0,027 W/(mK) | 0,75 |
| Górna Ustalone | 53 mm | 0,88 W/(m²K) | 0,027 W/(mK) | 0,75 |
| Boczna stała | 53 mm | 0,88 W/(m²K) | 0,027 W/(mK) | 0,75 |
| Dół | 96 mm | 1,04 W/(m²K) | 0,026 W/(mK) | 0,74 |
| Góra | 96 mm | 1,04 W/(m²K) | 0,026 W/(mK) | 0,74 |
| BOCZNY | 96 mm | 1,04 W/(m²K) | 0,026 W/(mK) | 0,74 |
| Próg | 111 mm | 1,50 W/(m²K) | 0,025 W/(mK) | 0,58 |
