2626wi04 IMPREO: (Window frame operable) - IMPREO
2626wi04 IMPREO: (Window frame operable)
2626wi04 IMPREO: (Window frame operable): 1M1
2626wi04 IMPREO: (Window frame operable): OB1
2626wi04 IMPREO: (Window frame operable): OH1
2626wi04 IMPREO: (Window frame operable): OJ1
IMPREO
| Certified since | 13 Iulie 2026 |
| Climate zone | Warm, temperate |
| Type | Window frame operable |
| Sub type | |
| Efficiency class | phC |
| Material | PVC |
| UW | 1.00 W/(m2K) |
| Opening direction | Inward opening |
Description
PVC window frame. Maximum dimensions for white color: 1700 mm × 2700 mm. Maximum dimensions for non-white colors: 1600 mm × 2650 mm. Color availability according to manufacturer specifications. Pane thickness: 36 mm (4/12/4/12/4). Rebate depth: 22 mm.
| Name | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

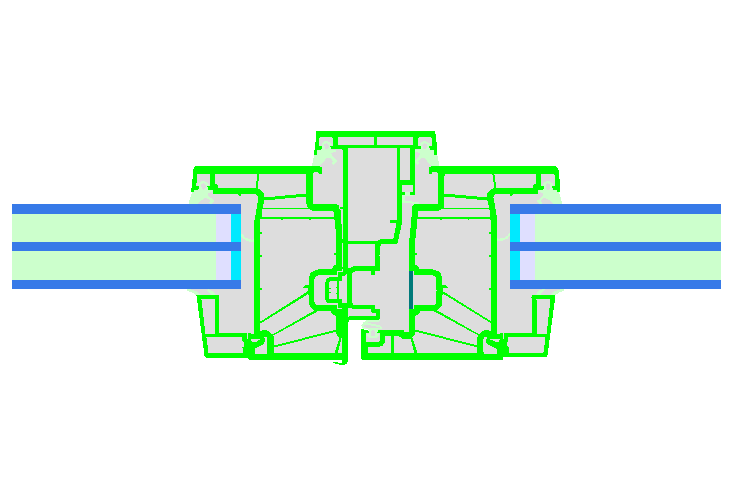

| Mullion 1 casement | 156 mm | 1,06 W/(m²K) | 0,023 W/(mK) | 0,69 |

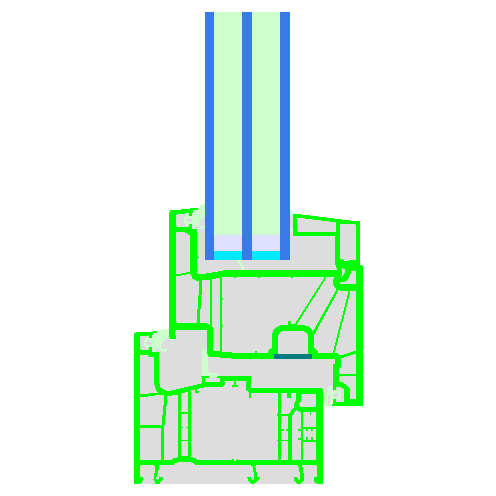

| Bottom | 117 mm | 1,04 W/(m²K) | 0,023 W/(mK) | 0,70 |

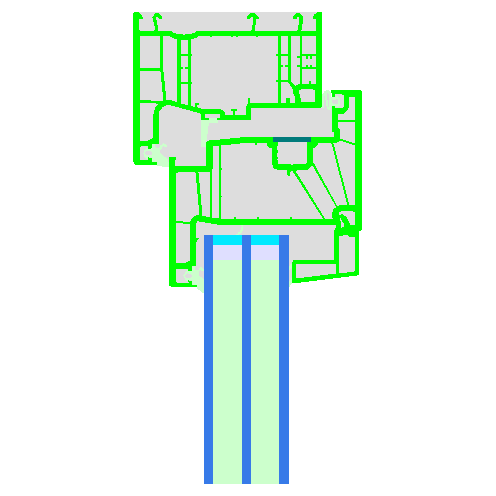

| Head | 117 mm | 1,04 W/(m²K) | 0,023 W/(mK) | 0,70 |
| Jamb | 117 mm | 1,04 W/(m²K) | 0,023 W/(mK) | 0,70 |
