2535wi04 KONTUR: (Operable): OB1
2535wi04 KONTUR: (Operable): OB1
2535wi04 KONTUR: (Operable): 1M1
2535wi04 KONTUR: (Operable): 2M1
2535wi04 KONTUR: (Operable): OH1
KONTUR
| Certified since | 14 октября 2025 г. |
| Climate zone | Теплый, умеренный |
| Тип | Operable |
| Sub type | |
| Efficiency class | phC |
| Material | PVC |
| UW | 1,00 W/(m2K) |
| Open type | Inward opening |
Описание
Window with reinforcement in the sash and main-frame, max. sash width 1.0 m, sash height 2.4 m. In-situ IKD insulation filled in cavity(0.027 W/(mK), real geometry conductivity- verifications performed (FIW). Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 21 mm.
| Имя | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|
| Mullion 1 casement | 140 mm | 1,24 W/(m²K) | 0,024 W/(mK) | 0,670 |

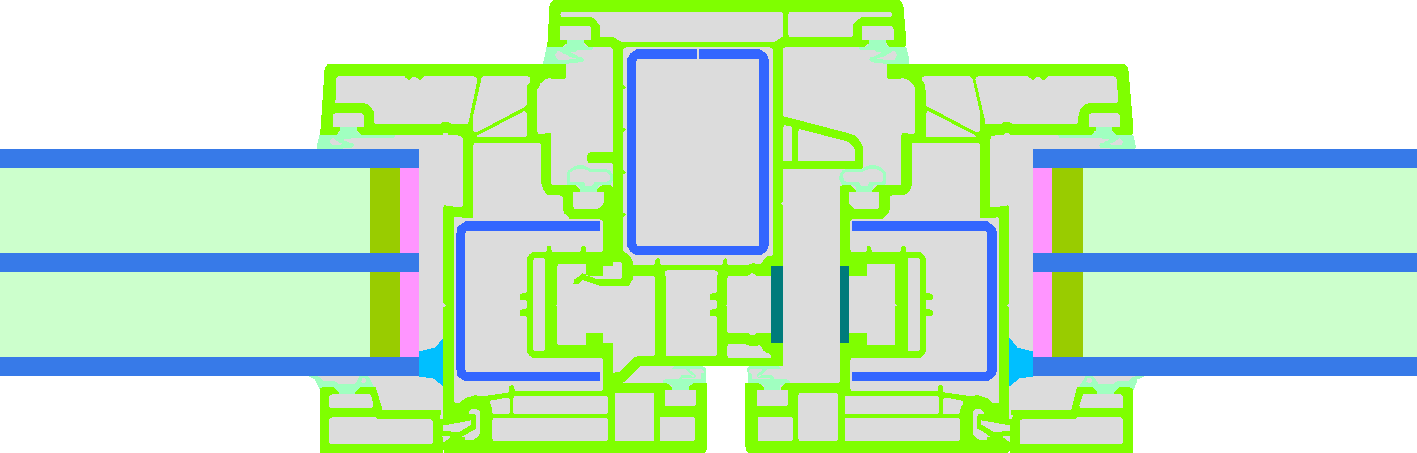

| Mullion 2 casements | 172 mm | 1,23 W/(m²K) | 0,024 W/(mK) | 0,620 |

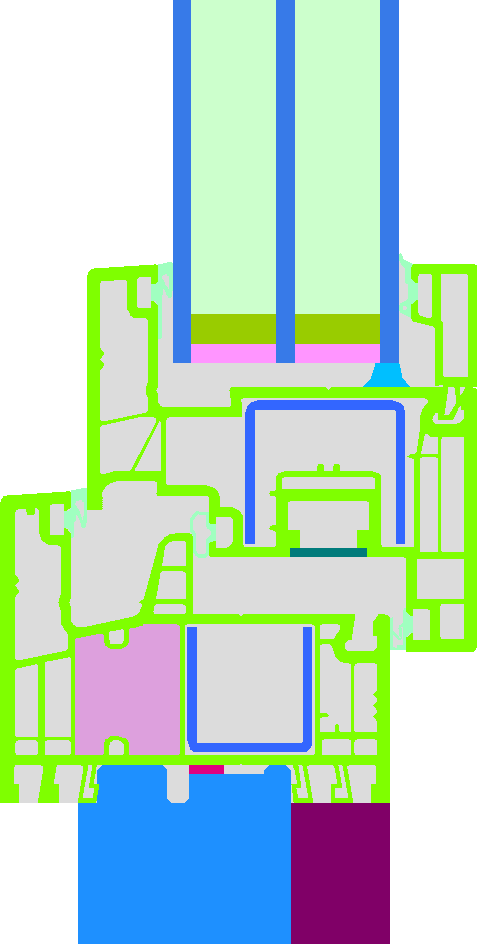

| Bottom | 144 mm | 0,95 W/(m²K) | 0,025 W/(mK) | 0,710 |

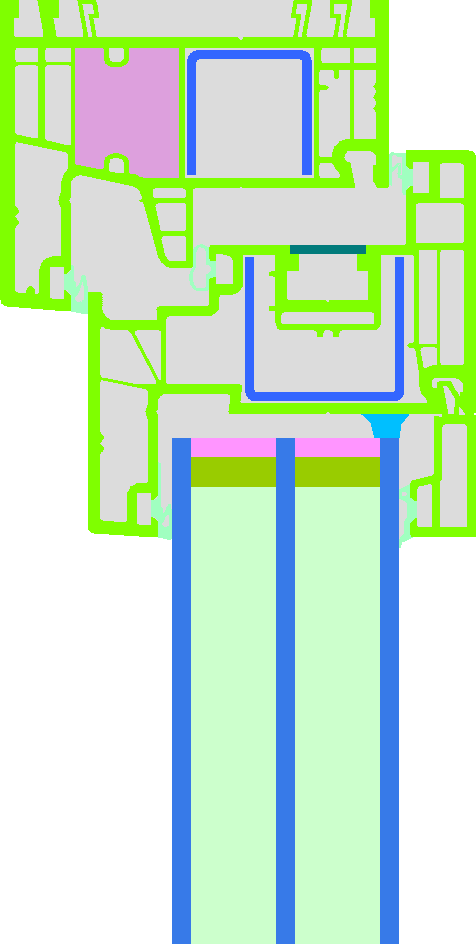

| Head | 114 mm | 1,06 W/(m²K) | 0,025 W/(mK) | 0,710 |
| Jamb | 114 mm | 1,06 W/(m²K) | 0,025 W/(mK) | 0,710 |
