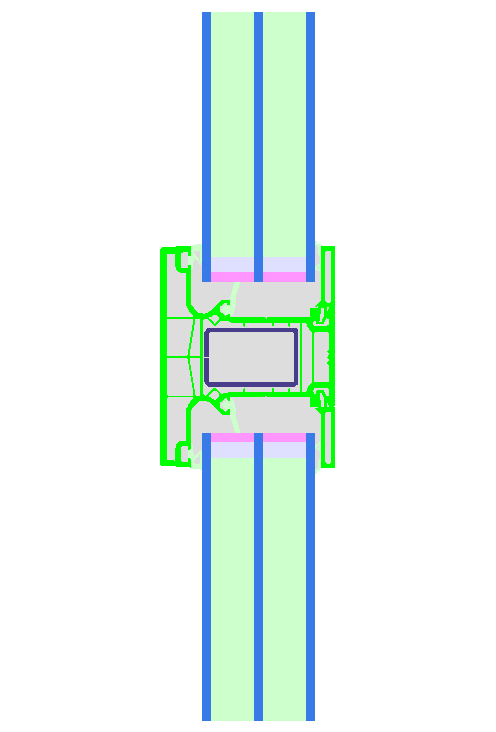

2463ws04 System LINEAR: (Window system): 0T1

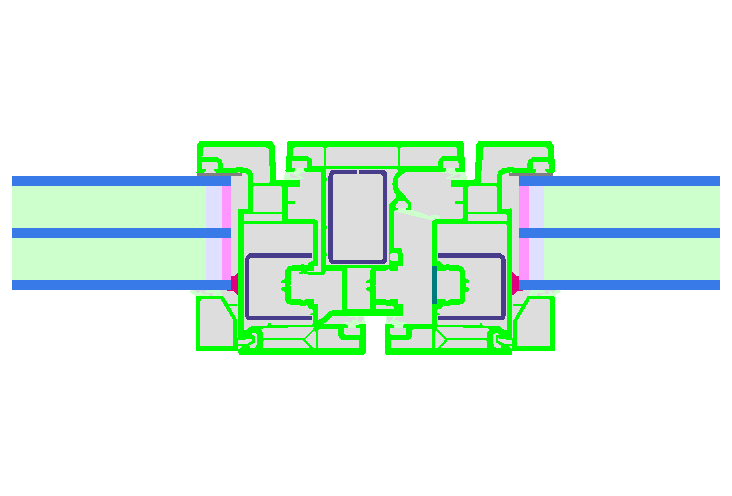

2463ws04 System LINEAR: (Window system): 1M1
2463ws04 System LINEAR: (Window system): 1T1

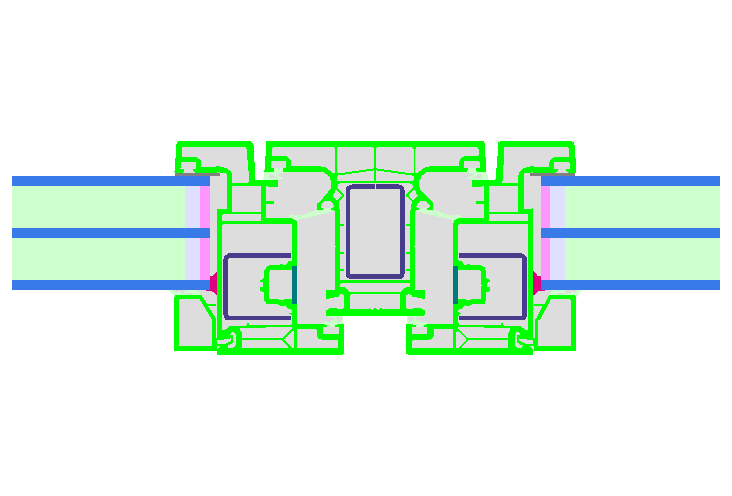

2463ws04 System LINEAR: (Window system): 2M1

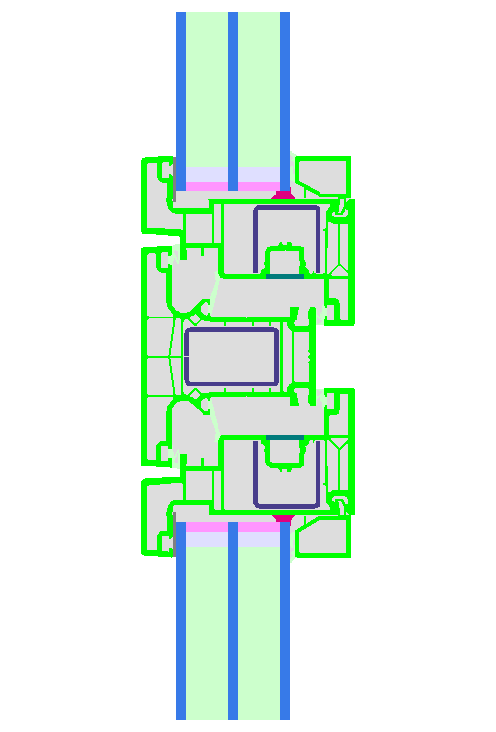

2463ws04 System LINEAR: (Window system): 2T1
2463ws04 System LINEAR: (Window system): FB1
2463ws04 System LINEAR: (Window system): FH1
2463ws04 System LINEAR: (Window system): FJ1

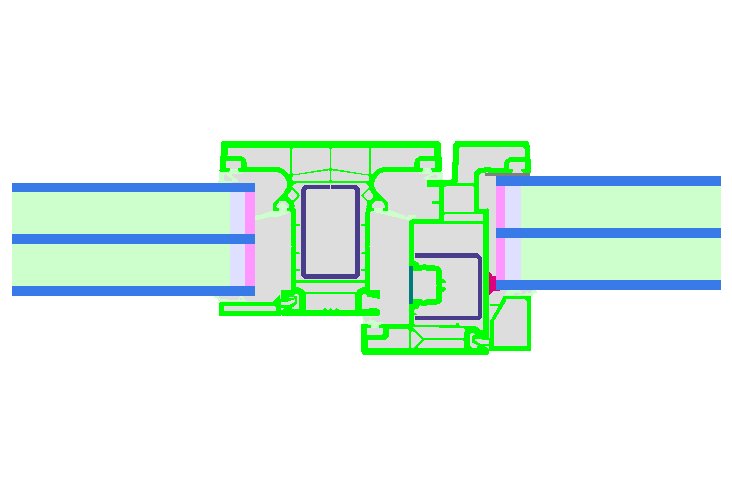

2463ws04 System LINEAR: (Window system): FM1
2463ws04 System LINEAR: (Window system): OB1
2463ws04 System LINEAR: (Window system): OH1
2463ws04 System LINEAR: (Window system): OJ1
2463ws04 System LINEAR: (Window system): OT1
System LINEAR
| Certified since | 20 мая 2025 г. |
| Climate zone | Теплый, умеренный |
| Тип | Window system |
| Sub type | |
| Efficiency class | phB |
| Material | PVC |
| UW | 1,00 W/(m2K) |
| Open type | Inward opening |
Описание
Window system with steel reinforcements and insulated sill profile. Maximum 30 kg/m² glass weight: white and colored sash 7072 STV 7730 0.90 * 2.1 m. Airtightness UNE-EN 1026:2017 value of 0.29 m³/m² (Class 4) @100 Pa Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 15 mm. 7077 leaf with STV, interior glass sealing and reinforcement 8727, 7001 frame with reinforcement 8727, 7060 casement with reinforcement 7731, 7040 crossbar with reinforcement 7731, 2595 sill with 7441 rain gutter, 7448 mats and 8178 rubber.
| Имя | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|

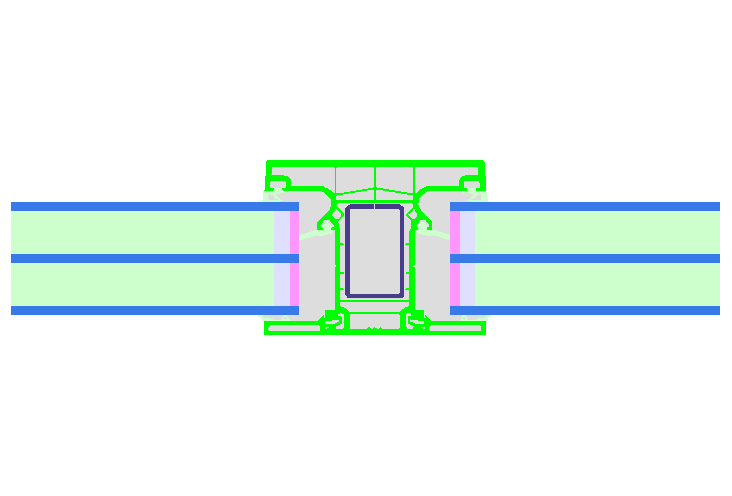

| Mullion Fixed | 94 mm | 1,21 W/(m²K) | 0,026 W/(mK) | 0,690 |
| Transom fixed | 94 mm | 1,21 W/(m²K) | 0,026 W/(mK) | 0,690 |
| Mullion 1 casement | 152 mm | 1,18 W/(m²K) | 0,023 W/(mK) | 0,670 |
| Transom 1 casement | 152 mm | 1,18 W/(m²K) | 0,023 W/(mK) | 0,670 |

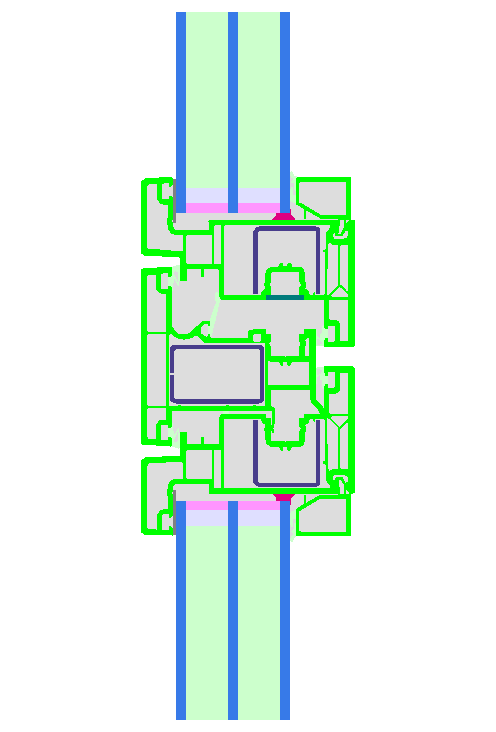

| Mullion 2 casements | 170 mm | 1,13 W/(m²K) | 0,023 W/(mK) | 0,700 |
| Transom 2 casements | 170 mm | 1,13 W/(m²K) | 0,023 W/(mK) | 0,700 |

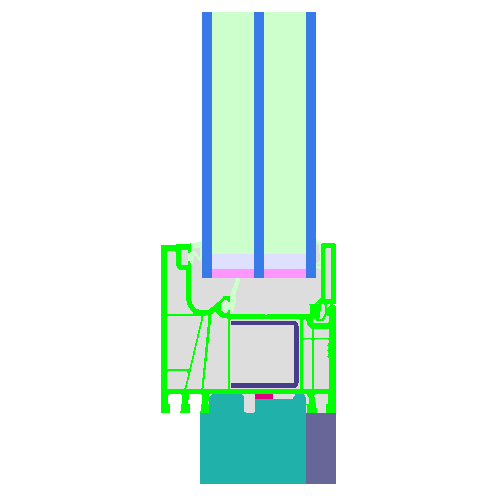

| Bottom Fixed | 102 mm | 0,99 W/(m²K) | 0,026 W/(mK) | 0,700 |
| Top fixed | 72 mm | 1,08 W/(m²K) | 0,026 W/(mK) | 0,790 |
| Lateral fixed | 72 mm | 1,08 W/(m²K) | 0,026 W/(mK) | 0,790 |
| Flying Mullion | 132 mm | 1,15 W/(m²K) | 0,024 W/(mK) | 0,690 |

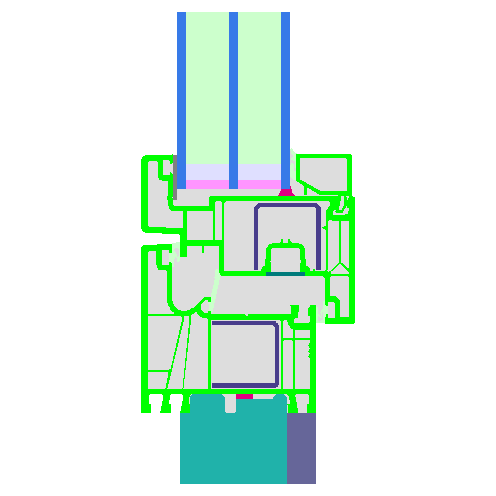

| Bottom | 140 mm | 1,01 W/(m²K) | 0,023 W/(mK) | 0,700 |

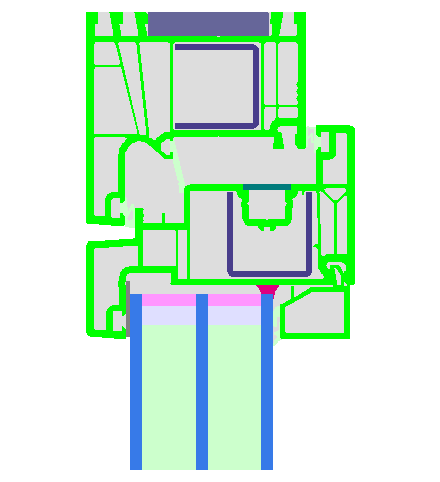

| Head | 110 mm | 1,07 W/(m²K) | 0,023 W/(mK) | 0,700 |
| Jamb | 110 mm | 1,07 W/(m²K) | 0,023 W/(mK) | 0,700 |

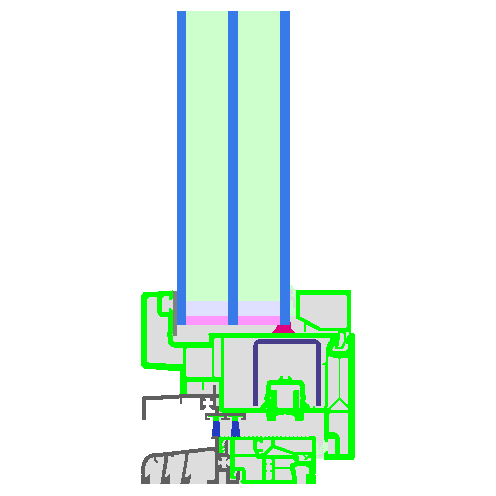

| Threshold | 82 mm | 1,74 W/(m²K) | 0,024 W/(mK) | 0,610 |
