REPLUS PASSIV

Certified since	14 июня 2016 г.
Climate zone	Теплый, умеренный
Тип	Operable
Sub type
Efficiency class	phC
Material	PVC
`U`_W	1,00 W/(m²K)
Open type

Описание

PVC window frame with rebate insulation (0.036 W/(mK)) and EPS insulation bar (0.031 W/(mK)). Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 15 mm, spacer: SWISSPACER Ultimate.

Имя	Frame width	U-value	Ψ-value	Frsi-value

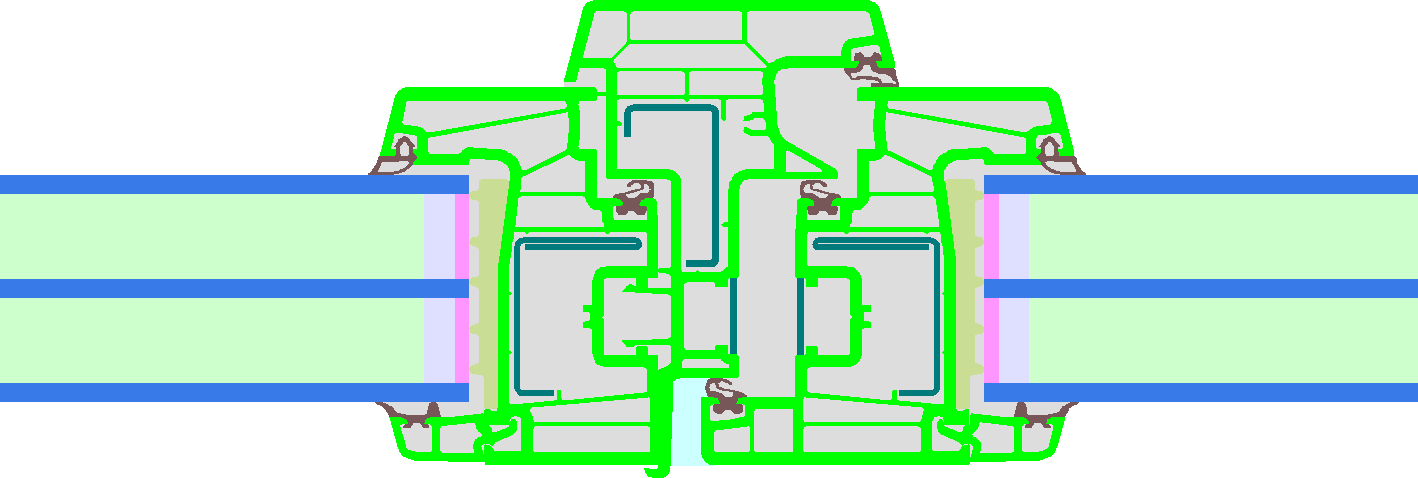

Flying Mullion	147 mm	1,08 W/(m²K)	0,023 W/(mK)	0,710

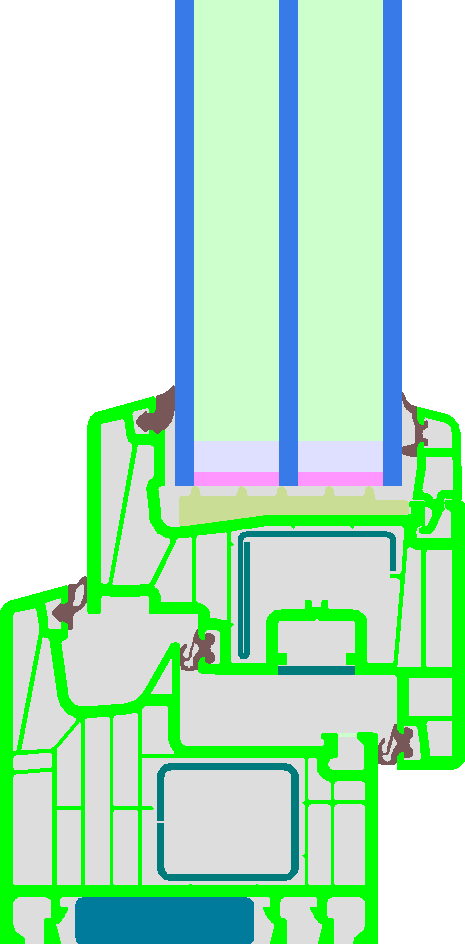

Bottom	116 mm	1,04 W/(m²K)	0,024 W/(mK)	0,720

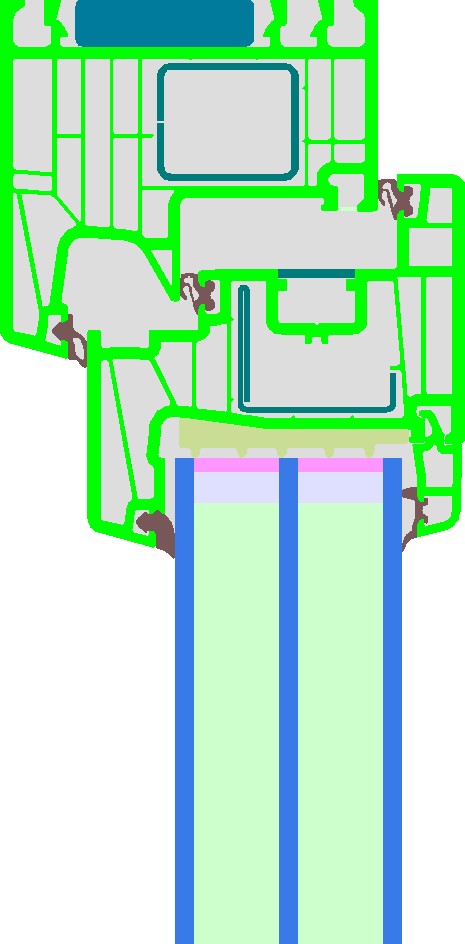

Head	116 mm	1,04 W/(m²K)	0,024 W/(mK)	0,720

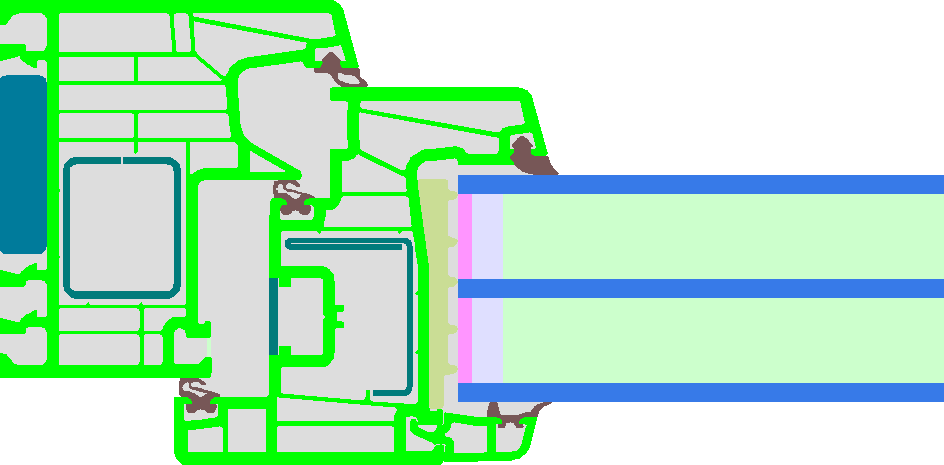

Jamb	116 mm	1,04 W/(m²K)	0,024 W/(mK)	0,720

Legend
Manufacturer

Leaflet © OpenStreetMap contributors

Component ID

0941wi04

Export

PHPP 9

PHPP 10

Сертификат

English

Deutsch

Manufacturer

Regicarp, S.L.

Адрес

Calle Denia, 36
03820 Cocentaina
Spain

Телефон

+34 966 544 310

Адрес электронной почты

jrichart@replus.es

Сайт

http://www.replus.es
