ARS-82

Certified since	25 Март 2026
Climate zone	Warm, temperate
Type	Operable
Sub type
Efficiency class	phC
Material	Aluminium
`U`_W	1.00 W/(m²K)
Open type	Inward opening

Description

Aluminium frame with thermal separation (Technoform Low Lambda PA 66 GF 25% 0.21 W/(mK)) and insulation (PIR foam 0.027 W/(mK)). Pane thickness: 48 mm (4/18/4/18/4), rebate depth: 16 mm. Spacer: SWISSPACER Ultimate Pro.

Name	Frame width	U-value	Ψ-value	Frsi-value

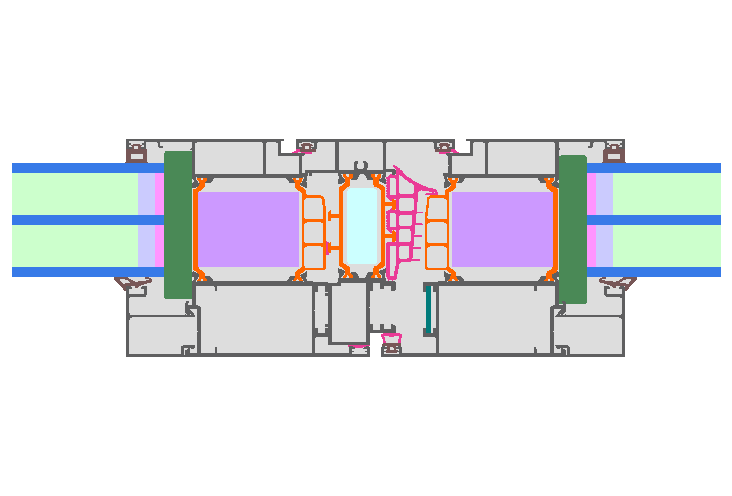

Flying Mullion	211 mm	0,99 W/(m²K)	0,029 W/(mK)	0,74

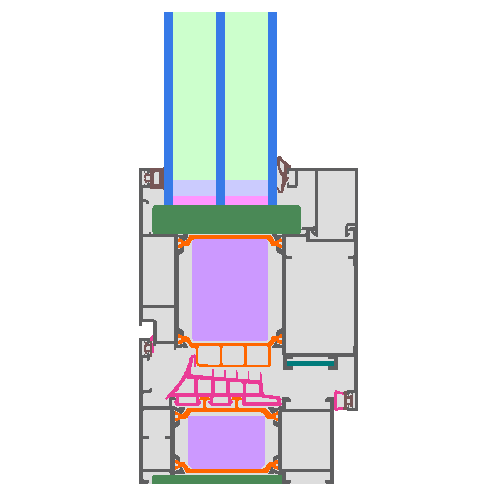

Bottom	134 mm	0,98 W/(m²K)	0,030 W/(mK)	0,75
Head	134 mm	0,98 W/(m²K)	0,030 W/(mK)	0,75
Jamb	134 mm	0,98 W/(m²K)	0,030 W/(mK)	0,75

Component ID

2587wi04

Export

PHPP 9

PHPP 10

Certificate

English

Español

Manufacturer

Exlabesa Building Systems

Address

Campaña s/n
36645 Valga
Spain

Телефон

+34 674 293 505

Имейл

contacto@exlabesa.com

Website

http://www.exlabesa.com
