Window
SoudaFrame SWI


Image of 1532pm03: Connection
Component id: 1532pm03
Manufacturer: Soudal N.V.
Κατηγορία: Connection
Material: Timber / PVC
UW: 0,80 W/(m2 K)
Efficiency class: phB
Spacer: PHI phB-Spacer
Climate zones: Ψυχρή, εύκρατη
Περιγραφή: Window mounting system made from GRP (0,19 W/(mK)), system width 90, 130 160, 200 mm. Assembly by way of adhesive and mechanical fixing. Additional thermal losses by reinforcing brackets made from steel determined by 3D heat flux simulation. Losses are to be inlcuded where the load exceeds a certain level, see certification report.

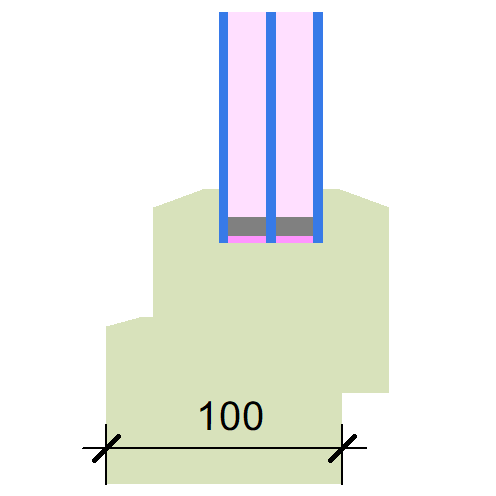

Frame cut Frame width
bf/mm
Frame U value
Uf/(W/(m2 K))
Glass edge Ψ-value
Ψg/(W/(m K))
Temperature factor
fRsi = 0,25 m2K/W
Bottom 100 0,73 0,036 0,70
Top 100 0,73 0,036 0,70
Lateral 100 0,73 0,036 0,70
