DC 5/6
| Certified since | Dec. 5, 2024 |
| Climate zone | Cool, temperate |
| Type | Glass roof |
| Sub type | |
| Efficiency class | phA |
| Material | Aluminium |
| UW | 0.86 W/(m2K) |
| Open type |
Description
Aluminium construction with covering and pressure strip from aluminium. Styrodur insulator in the glazing rebate. Screws thermallly separated by ABS. Losses by screws and glass carrier were determined by 3D-thermal flux analysis (PHI). Used Pane: 45.52 mm (6/12/6/12/9.52), intersection of the Glass: 15 mm. Used spacer: Thermobar. The glazing was calculated with a 6 mm secondary seal.
| Name | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|
| Mullion Fixed | 61 mm | 1.16 W/(m²K) | 0.045 W/(mK) | 0.82 |
| Transom fixed | 61 mm | 1.46 W/(m²K) | 0.046 W/(mK) | 0.81 |
| Mullion 1 casement | 149 mm | 2.86 W/(m²K) | 0.050 W/(mK) | 0.60 |
| Transom 1 casement | 149 mm | 3.09 W/(m²K) | 0.045 W/(mK) | 0.61 |
| Bottom Fixed | 61 mm | 1.15 W/(m²K) | 0.044 W/(mK) | 0.81 |
| Top fixed | 61 mm | 1.15 W/(m²K) | 0.044 W/(mK) | 0.81 |
| Jamb fixed | 61 mm | 1.15 W/(m²K) | 0.049 W/(mK) | 0.80 |

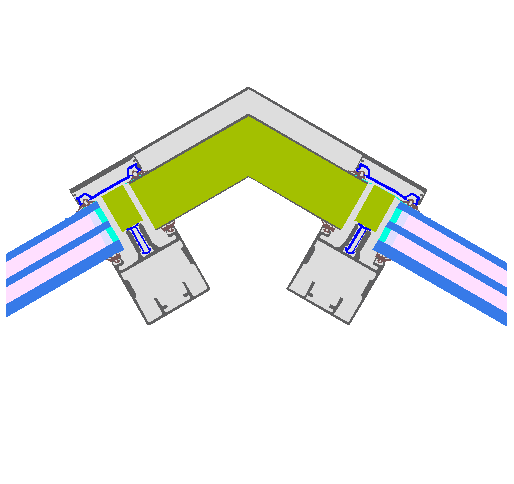

| Ridge | 340 mm | 0.67 W/(m²K) | 0.044 W/(mK) | 0.80 |

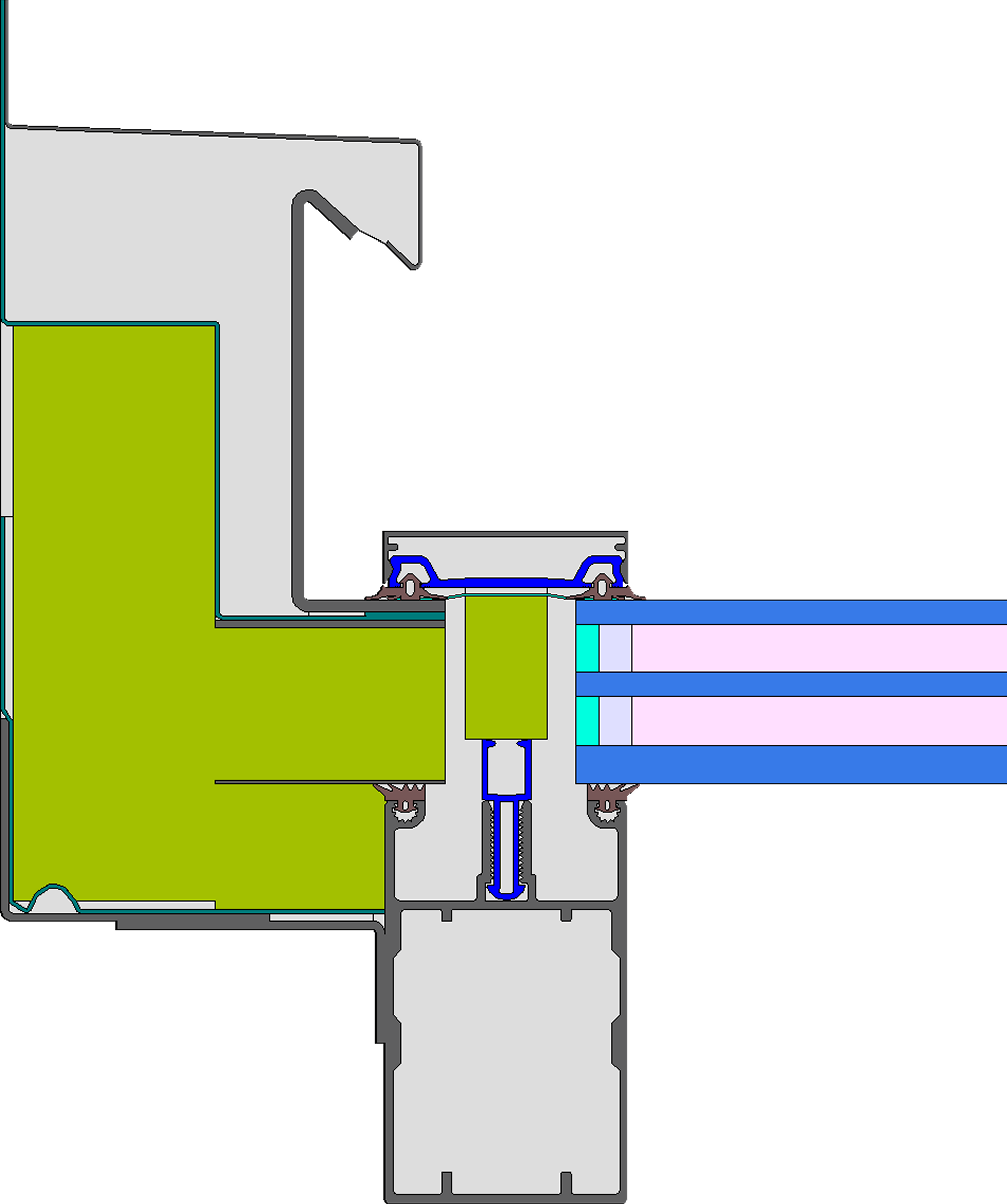

| Skylight horizontal fixed | 155 mm | 1.11 W/(m²K) | 0.049 W/(mK) | 0.78 |

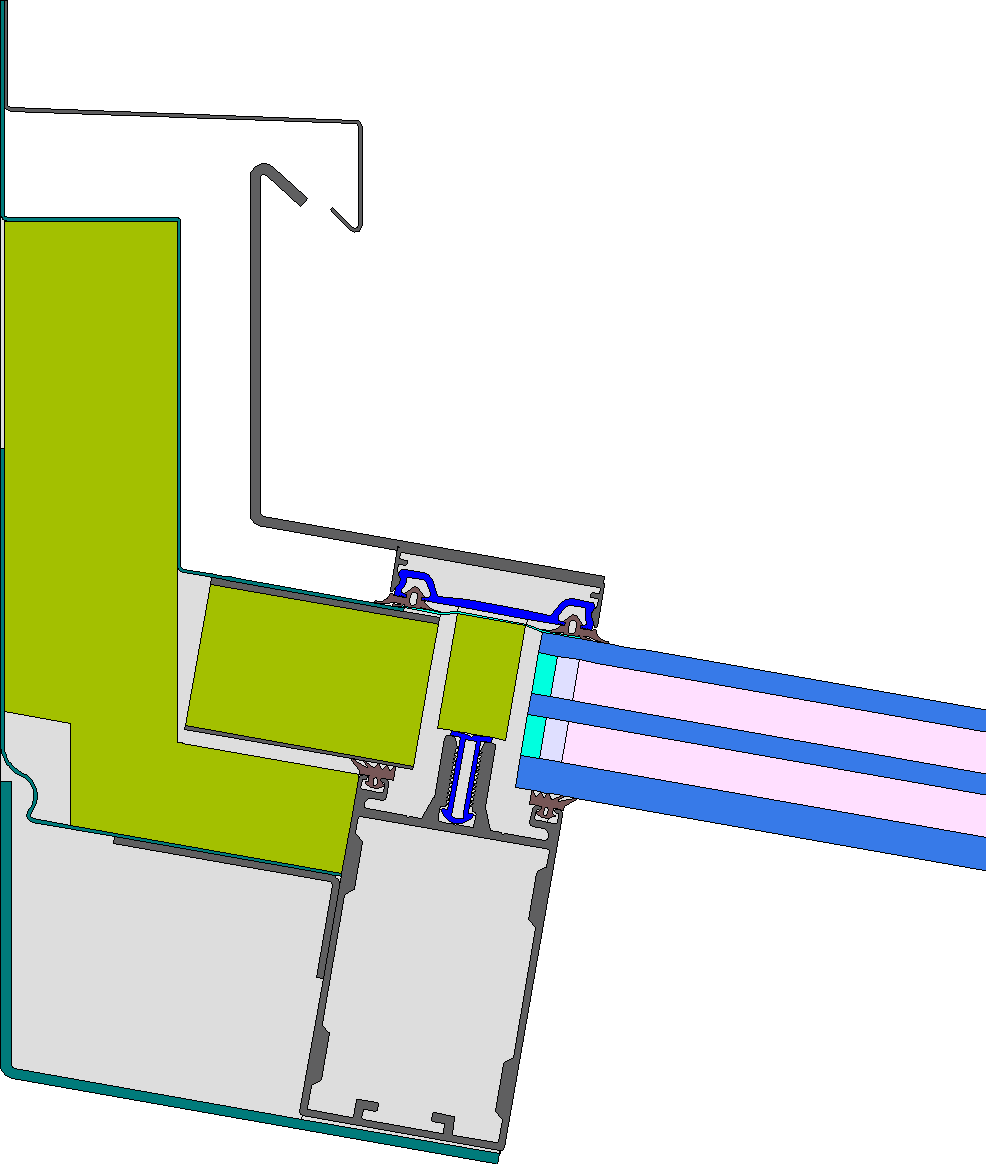

| Skylight inclined fixed | 172 mm | 0.97 W/(m²K) | 0.049 W/(mK) | 0.78 |
