Defender 88PH+ Pro Terrace Door


Component id: 1767wi03
Manufacturer: Innotech Windows & Doors, Inc.
Category: Operable
Material: PVC
UW: 0.80 W/(m2 K)
Efficiency class: phC
Spacer: Super Spacer Premium
Climate zones: Cool, temperate
Description: PVC frame with steel reinforcement and EPS insulation (Bach EPS F-040, 0,041 W/(mK) and EPS (0,032 W/(mK)) and Spaceloft insulation (0.016 W/(mK). The maximum size of the window with this reinforcement is 1,31 m x 2,60 m. Pane thickness 46 mm (4/17/4/17/4), rebate depth 20 mm. Spacer: SuperSpacer Premium with butyl secondary seal. There are no limitations on colour.
Certified since: Aug. 23, 2021

Frame cut Frame width
bf/mm
Frame U-value
Uf/(W/(m2 K))
Glass edge Ψ-value
Ψg/(W/(m K))
Temperature factor
fRsi = 0,25 m2K/W

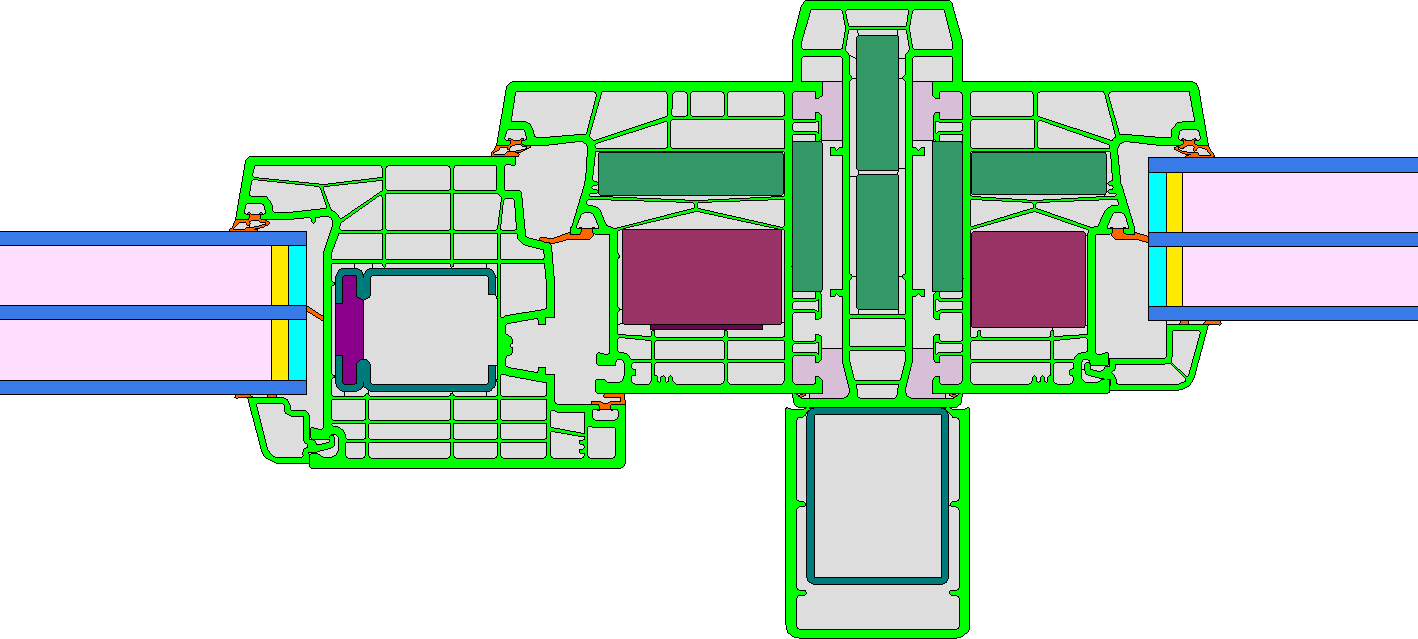

Mullion 1 casement 261 0.83 0.022 0.74

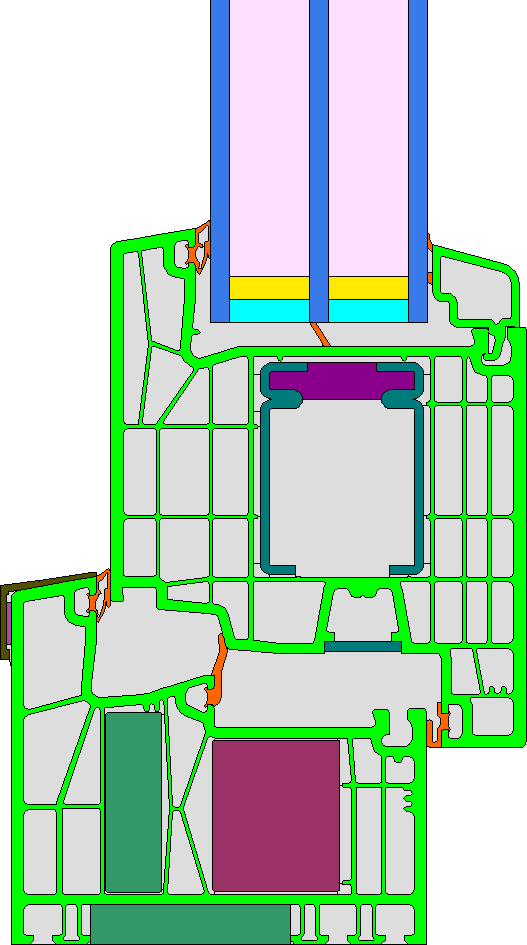

Bottom 152 0.84 0.022 0.74
Top 166 0.80 0.022 0.74

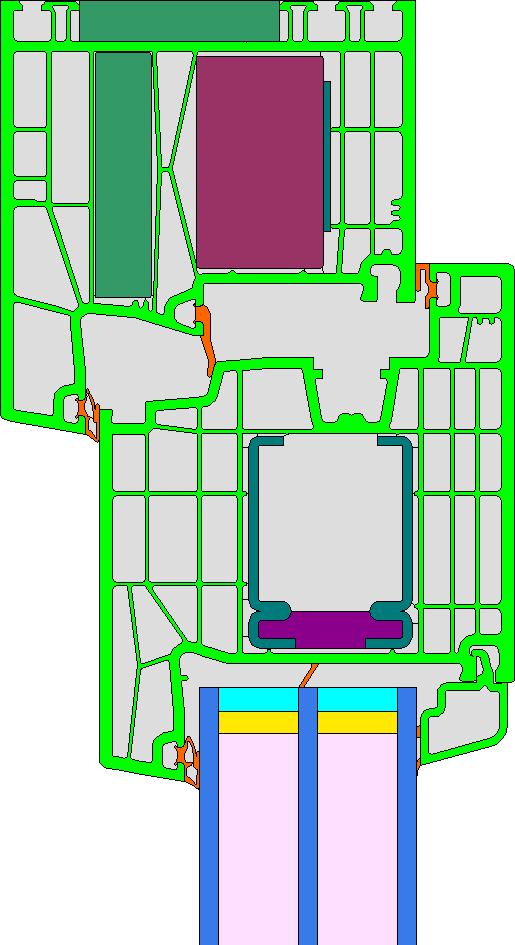

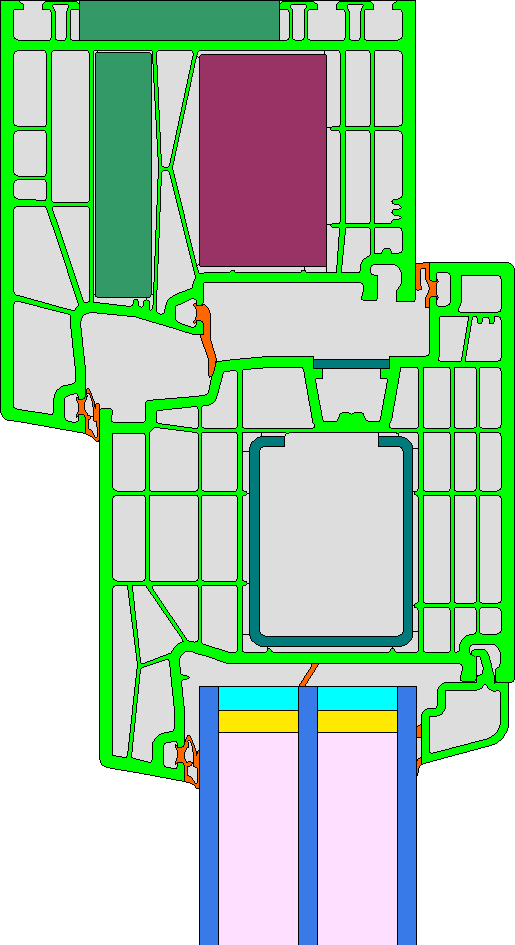

Lateral 166 0.80 0.022 0.74

Please select preferred window layout

Installation situation



UW, installed = ? W/(m2 K)

U-value calculation

 m  m  m
 m
 m
Pick window layout


 W/(m2 K)
UW = ? W/(m2 K)

Cost calculation

Orientation:

Please choose orientation of the window
to get the PHPP-standard values for solar radiation


kKh/a

kWh/(m2a)



Recommended value for reduction factor is 0.9
Shading factor should be between 0.1 and 1. For standard situations see ISO EN 13790

€/kWh

%

Years

Present value (energy) = ? €
Present value (total) = ? €
