Série 2 Casement H2
| Certified since | May 6, 2025 |
| Climate zone | Cool, temperate |
| Type | Operable |
| Sub type | |
| Efficiency class | phA |
| Material | PVC / aluminium |
| UW | 0.80 W/(m2K) |
| Open type | Outward opening |
Description
Vinyl frame with aluminium cladding on the outside and the inside. Pane thickness: 44 mm (3/17.5/3/17.5/3). Rebate depth: 20 mm. Spacer: Swisspacer Ultimate. Secondary sealing: butyl. Maximum dimensions without fiberglass reinforcement: 0.813 m (width), 1.60 m (height). Using fiberglass reinforcement, the frame has an Uf-value of 1.01 W/(m².K) at the bottom and top sections, and 1.00 W/(m².K) at the side section. It is suitable for awning and casement windows.
| Name | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|
| Mullion 1 casement | 137 mm | 1.00 W/(m²K) | 0.017 W/(mK) | 0.740 |
| Transom 1 casement | 137 mm | 1.00 W/(m²K) | 0.017 W/(mK) | 0.740 |

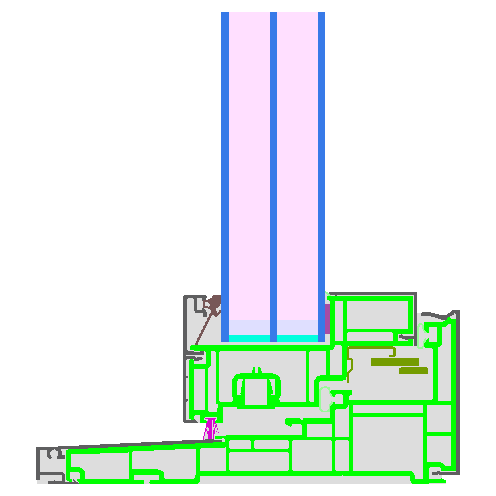

| Bottom | 80 mm | 0.95 W/(m²K) | 0.017 W/(mK) | 0.750 |
| Head | 80 mm | 0.95 W/(m²K) | 0.017 W/(mK) | 0.750 |
| Jamb | 80 mm | 0.94 W/(m²K) | 0.018 W/(mK) | 0.750 |
