2190wi06 Thermal Break System (pilot certification): (Operable)
2190wi06 Thermal Break System (pilot certification): (Operable)

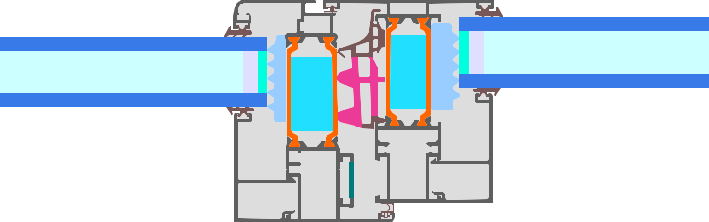

2190wi06 Thermal Break System (pilot certification): (Operable): 1M1

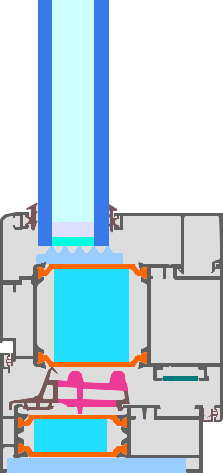

2190wi06 Thermal Break System (pilot certification): (Operable): OB1
Thermal Break System (pilot certification)
| Certified since | Aug. 1, 2025 |
| Climate zone | Hot |
| Type | Operable |
| Sub type | |
| Efficiency class | phC |
| Material | Aluminium |
| UW | 1.19 W/(m2K) |
| Open type | Inward opening |
Description
Aluminium frame, thermally separated with Technoform Low Lambda (0,21 W/(mK)) and insulated with pre-cut polyurethane foam sections (0,027 W/(mK)). Pane thickness 30 mm (6/18/6 mm), rebate depth 15 mm. Spacer: TGI-Spacer SP16 with butyl secondary seal. The window is designated as a pilot certification for the following reason: India is generally assigned as climate zone 7, 'very hot', and thereby requires highly insulated window frames with triple glazing. Depending on the local climate, however, it may be possible to achieve the Passive House standard using narrower frames and double glazing, applicable to the 'hot' climate zone 6. Particular attention should be paid to the need for external shading and solar control glazing. The exact requirements must always been confirmed by the PHPP on a case-by-case basis.
| Name | Frame width | U-value | Ψ-value | Frsi-value |
|---|---|---|---|---|
| Mullion 1 casement | 131 mm | 1.08 W/(m²K) | 0.041 W/(mK) | 0.699 |
| Bottom | 110 mm | 1.07 W/(m²K) | 0.041 W/(mK) | 0.718 |
| Head | 110 mm | 1.07 W/(m²K) | 0.041 W/(mK) | 0.718 |
| Jamb | 110 mm | 1.07 W/(m²K) | 0.041 W/(mK) | 0.718 |
