Window
Softline 82 MD PSR


Image of 0926wi03: Operable
Component id: 0926wi03
Manufacturer: VEKA Plastics (Shanghai) Co., Ltd.
Category: Operable
Material: PVC
UW: 0.80 W/(m2 K)
Efficiency class: phB
Spacer: SWISSPACER Ultimate
Climate zones: Cool, temperate
Frame cut Frame width
bf/mm		 Frame U value
Uf/(W/(m2 K))		 Glass edge Ψ value
Ψg/(W/(m K))		 Temperature factor
fRsi = 0,25 m2K/W

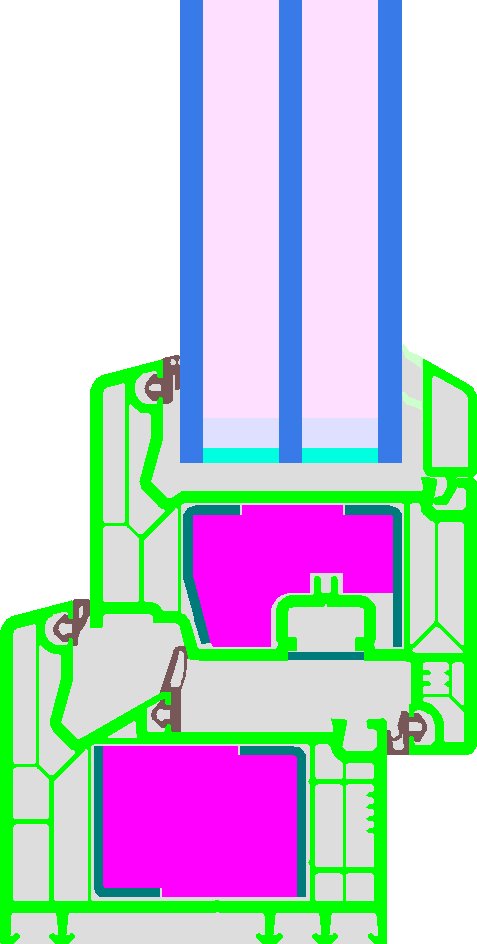

Bottom 124 0.85 0.022 0.75

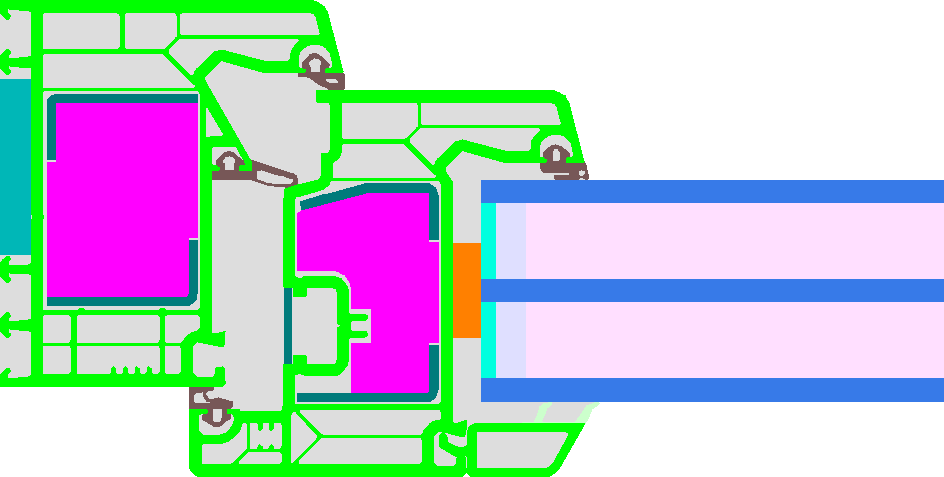

Lateral 124 0.85 0.022 0.75

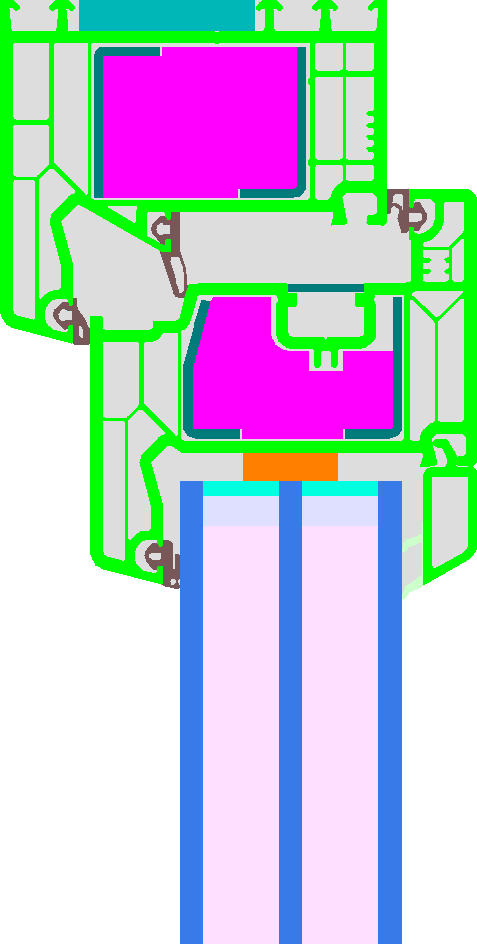

Top 124 0.85 0.022 0.75

Please select preferred window-layout

U-Value Calculation

 m  m  m
 m
 m 		Pick window-layout


 W/(m2 K)
UW = ? W/(m2 K)

Installationsituation

UW, installed = ? W/(m2 K)

Cost Calculation

Orientation :

Please choose orientation of the window
to get the PHPP-standard values for solar radiation

kKh/a

kWh/(m2a)


Recommended Value for Reduction Factor is 0.9
Shading Factor should be between 0.1 and 1. For standard situations look in ISO EN 13790

€/kWh
%
Years

€
Present Value(energy) = ? €
Present Value(total) = ? €
